Limit Switch

The Limit Switch is an electromechanical sensor used to detect the physical position, movement, or end point of a moving object in mechanical and automation systems. It works by converting a physical action, such as pressing, touching, or moving a lever, into an electrical signal that can control or provide feedback to an electronic or electrical system. Limit switches are widely used in industrial machines, robotics, CNC machines, 3D printers, and DIY electronics projects.

A limit switch consists of a mechanical actuator and electrical contacts enclosed in a protective housing. When an object comes into contact with the actuator, the internal contacts change their state, either opening or closing the circuit. This allows the switch to send a signal to a controller or directly control a device such as a motor, relay, or alarm system.

A typical limit switch has three terminals:

• COM (Common): The main connection point shared by the switch contacts.

• NO (Normally Open): The circuit remains open until the switch is activated.

• NC (Normally Closed): The circuit remains closed until the switch is activated.

When the actuator is pressed or moved, the connection between these terminals changes. This switching action allows the limit switch to detect the position of moving parts and provide accurate control signals to electronic systems.

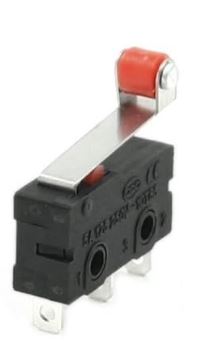

Limit switches are available with different actuator designs such as roller lever, push button, plunger, and adjustable arm types. The actuator type is selected based on the application requirements. Roller lever versions are commonly used where smooth movement and detection from different angles are required.

The Limit Switch is commonly used in applications such as:

• CNC machine position control

• 3D printer end-stop detection

• Robotic arm movement control

• Elevator and door safety systems

• Industrial automation equipment

• Motor travel limit control

• Conveyor systems

• Machine protection circuits

• Electronic control projects

In robotics and automation projects, limit switches are used to prevent mechanical components from moving beyond their safe operating range. For example, they can stop a motor when a robotic arm reaches its maximum position or prevent damage when a machine reaches its movement limit.

The switch provides several advantages, including simple operation, fast response, high reliability, low cost, and easy integration with control systems. It can be directly connected with microcontrollers such as Arduino, Raspberry Pi, and other embedded control boards for position sensing and automation applications.

The durable construction of a limit switch allows it to withstand repeated mechanical operations. Its compact design makes it suitable for installation in small electronic devices as well as large industrial machines. Proper selection of voltage and current ratings ensures safe and reliable operation.

The Limit Switch is an essential component in mechanical sensing and automation systems. With its accurate position detection, simple working principle, and wide range of applications, it provides a reliable solution for controlling movement, improving safety, and protecting electronic and mechanical equipment.
