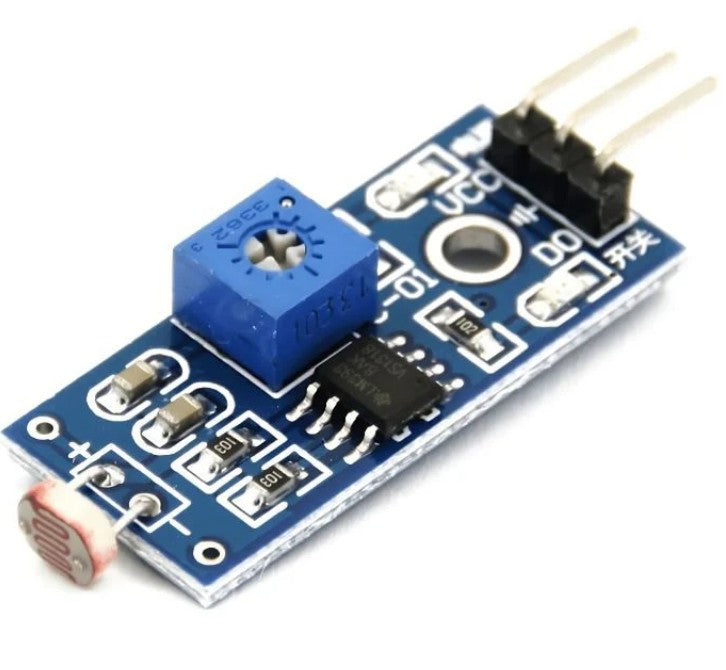

LM393 Photosensitive LDR Light-Dependent Control Sensor Module

The LDR Sensor Module is a compact and reliable light detection module designed to sense changes in ambient light intensity. It uses a Light Dependent Resistor (LDR), also known as a photoresistor, whose electrical resistance varies according to the amount of light falling on its surface. As the surrounding light intensity increases, the resistance of the LDR decreases, and as the light level decreases, its resistance increases. This characteristic allows the module to accurately detect day/night conditions and changes in ambient lighting.

The module incorporates an onboard comparator, indicator LEDs, and an adjustable sensitivity potentiometer, enabling users to set the desired light detection threshold for different applications. When the ambient light level crosses the preset threshold, the module generates a digital HIGH or LOW output signal that can directly control microcontrollers, relays, or other electronic circuits. Many versions of the module also provide an analog output that represents the relative light intensity, allowing continuous monitoring through a microcontroller's Analog-to-Digital Converter (ADC).

Operating from 3.3V to 5V DC, the LDR Sensor Module is fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi (with an external ADC for analog readings), STM32, PIC, AVR, NodeMCU, and other embedded development platforms. Its compact PCB design, low power consumption, and simple interface make it ideal for beginners, students, hobbyists, engineers, and professionals developing automation and sensing applications.

The module is widely used in automatic lighting systems, smart home devices, energy-saving applications, environmental monitoring, robotics, security systems, and educational electronics projects where reliable light detection is required.

Working Principle

The LDR (Light Dependent Resistor) changes its electrical resistance based on the intensity of the surrounding light. In bright conditions, the resistance decreases, while in darkness, the resistance increases.

This varying resistance forms part of a voltage divider circuit on the module. The resulting voltage is continuously monitored by the onboard comparator, which compares it against a reference voltage set using the onboard sensitivity adjustment potentiometer.

When the detected light level exceeds or falls below the selected threshold, the comparator switches the digital output accordingly. On module versions equipped with an analog output, the continuously varying voltage is also available for precise light intensity measurement through the microcontroller's ADC.

This simple operating principle enables fast, stable, and reliable light detection without requiring complex external circuitry.

Key Features

High-sensitivity Light Dependent Resistor (LDR).

Detects changes in ambient light intensity.

Operating voltage from 3.3V to 5V DC.

Digital output for threshold-based light detection.

Analog output available on supported module versions.

Adjustable sensitivity using onboard potentiometer.

Fast response to changing light conditions.

Low power consumption.

Compact PCB design.

Built-in power and status indicator LEDs.

Simple interface for easy microcontroller integration.

Compatible with Arduino, ESP32, ESP8266, Raspberry Pi (with external ADC), STM32, PIC, AVR, NodeMCU, and PLC systems.

Suitable for automation, robotics, IoT, and educational projects.

Easy installation and reliable operation.

Technical Specifications

Sensor Type: Light Dependent Resistor (LDR)

Operating Voltage: 3.3V–5V DC

Detection Method: Ambient Light Sensing

Output Type: Digital Output (DO)

Analog Output: Available on supported module versions (AO)

Sensitivity Adjustment: Onboard Potentiometer

Power Consumption: Low

Response Time: Fast

Interface: VCC, GND, DO (AO on supported versions)

Status Indicators: Power LED and Detection LED

Operating Temperature: Suitable for standard indoor operating environments

Module Type: Light Intensity Detection Sensor

Applications

Automatic street lighting systems.

Day and night detection circuits.

Light-activated switches.

Smart home automation.

Energy-saving lighting control.

Solar lighting systems.

Security and alarm systems.

Environmental light monitoring.

IoT monitoring projects.

Robotics and automation.

Industrial lighting control.

Educational electronics experiments.

DIY electronics projects.

Embedded system development.

Prototype testing and research.
