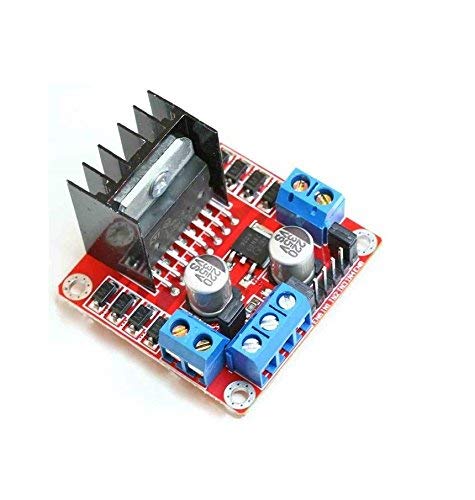

L298D Motor Driver Module

The L298D Motor Driver Module is a reliable dual H-Bridge motor driver board designed to control the speed and direction of DC motors and stepper motors using microcontrollers and embedded systems. Based on the widely used L298D dual H-Bridge motor driver integrated circuit, this module allows independent bidirectional control of two DC motors or one bipolar stepper motor, making it an ideal solution for robotics, automation, and motor control applications.

The module acts as an interface between a low-power microcontroller and high-current motors, enabling devices such as Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC, and other development boards to safely drive motors without directly supplying the required motor current. The onboard H-Bridge circuit allows motors to rotate in both forward and reverse directions while also supporting speed control through Pulse Width Modulation (PWM).

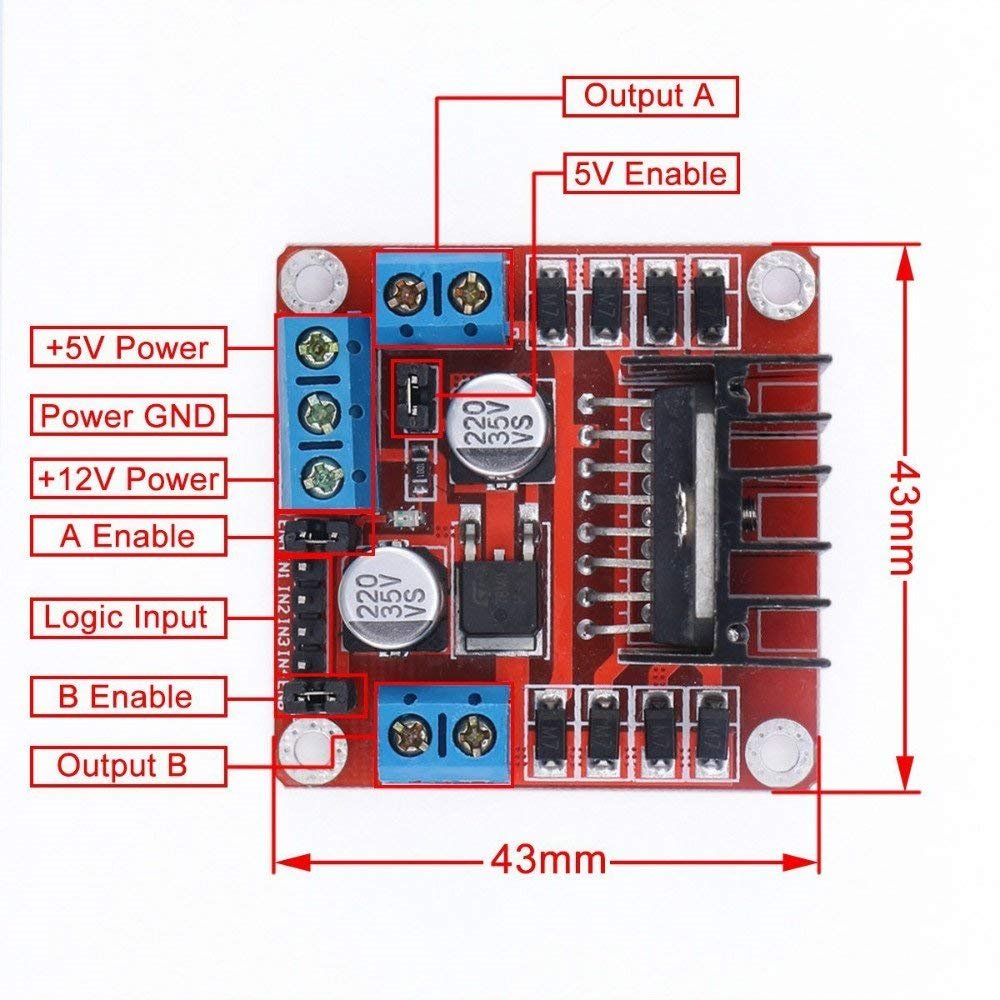

Designed with user convenience in mind, the module features screw terminals for easy motor and power connections, clearly labeled control pins, onboard power regulation (depending on the module version), status indicators, and an integrated heat sink to improve heat dissipation during continuous operation. The robust PCB design ensures stable performance and long operational life even under demanding conditions.

The L298D Motor Driver Module supports a wide motor supply voltage range, making it suitable for battery-powered robots, automation equipment, motorized projects, and educational experiments. It is capable of driving small to medium-sized DC motors, gear motors, and stepper motors commonly used in hobby and industrial applications.

This module is widely used in robotic cars, line-following robots, obstacle avoidance robots, robotic arms, conveyor systems, automated doors, motorized trolleys, CNC machine prototypes, educational laboratories, industrial automation, IoT projects, embedded systems, STEM learning kits, and DIY electronics projects.

Whether you are building your first robot, developing an automation system, or designing a motor control application, the L298D Motor Driver Module offers a simple, reliable, and cost-effective solution for controlling DC and stepper motors with precision.

Working Principle

The L298D Motor Driver Module operates using dual H-Bridge circuitry, which allows the polarity of the voltage supplied to the motor terminals to be reversed electronically.

The module receives logic control signals from a microcontroller through its input pins. Based on these signals, the H-Bridge switches the current flow through the motor, allowing it to rotate in the forward or reverse direction.

Motor speed is controlled by applying a PWM (Pulse Width Modulation) signal to the enable pins. By varying the PWM duty cycle, the average voltage supplied to the motor changes, allowing smooth speed control.

The module can independently control two DC motors or drive one bipolar stepper motor using the appropriate control sequence.

Key Features

• Based on the L298D dual H-Bridge motor driver IC

• Controls two DC motors independently

• Supports one bipolar stepper motor

• Bidirectional motor rotation

• Forward and reverse motor control

• PWM speed control support

• Wide motor operating voltage range

• Compatible with 5V logic systems

• Onboard heat sink for efficient cooling

• Screw terminals for secure wiring

• Easy interface with microcontrollers

• Stable and reliable performance

• Durable PCB construction

• Suitable for robotics and automation projects

• Compact and lightweight design

Applications

The L298D Motor Driver Module is widely used in:

• Arduino projects

• ESP32 development

• ESP8266 projects

• Raspberry Pi robotics

• STM32 development boards

• Robotics

• Robot cars

• Line-following robots

• Obstacle avoidance robots

• Robotic arms

• Stepper motor control

• DC motor control

• Motorized conveyor systems

• Automated doors

• CNC machine prototypes

• Industrial automation

• Home automation

• IoT devices

• Embedded systems

• Educational electronics

• STEM learning projects

• DIY electronics

• Electronic prototyping

Specifications

• Product Type: Dual H-Bridge Motor Driver Module

• Driver IC: L298D

• Motor Support: 2 DC Motors or 1 Bipolar Stepper Motor

• Control Method: Digital logic inputs with PWM speed control

• Logic Voltage: 5V

• Motor Supply Voltage: Wide operating range (module dependent)

• Interface: Digital control pins

• Cooling: Onboard heat sink

• Mounting: PCB module with mounting holes
