IRF520 MOSFET Driver Module

The IRF520 MOSFET Driver Module is an electronic switching module used to control high-power devices such as motors, LED strips, relays, pumps, and other electrical loads using a low-power control signal from a microcontroller like Arduino, Raspberry Pi, or other development boards. It is designed to act as an interface between low-voltage control systems and high-current devices.

The main component of this module is the IRF520 N-channel MOSFET, which works as an electronic switch. A MOSFET (Metal Oxide Semiconductor Field Effect Transistor) can control a large amount of current with a small input signal. When a voltage is applied to the gate terminal of the MOSFET, it allows current to flow between the drain and source terminals, turning the connected load ON. When the gate voltage is removed, the MOSFET turns OFF and stops the current flow.

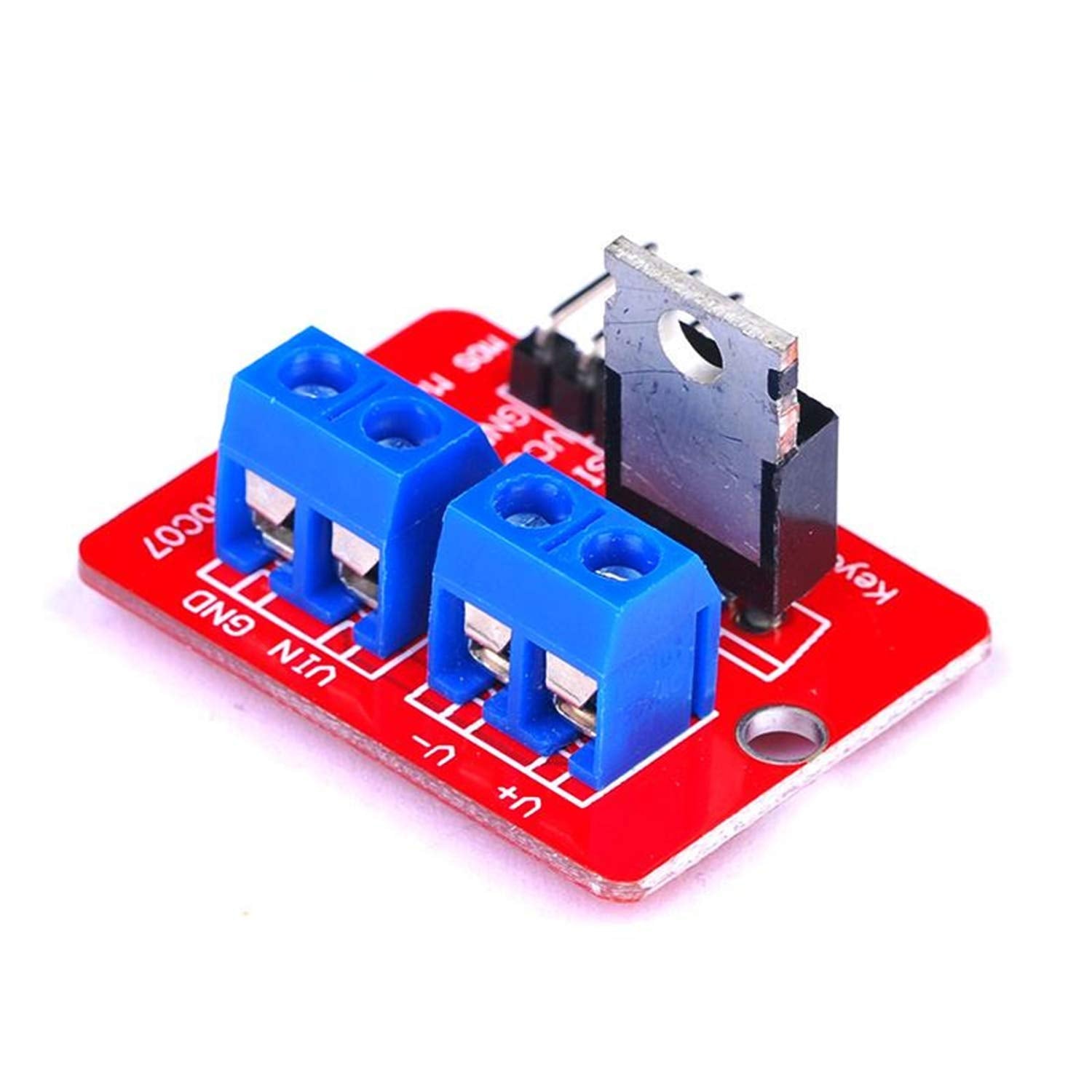

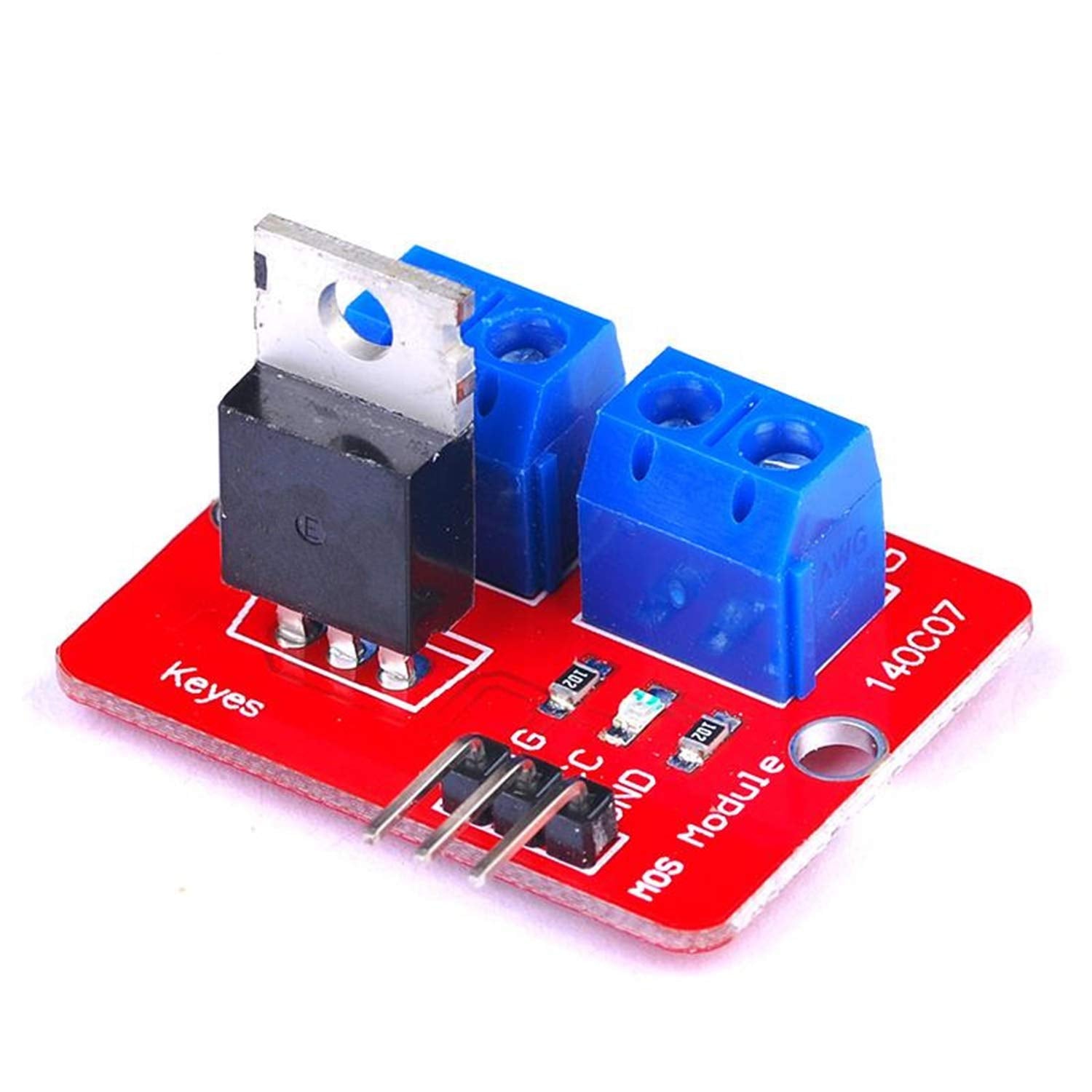

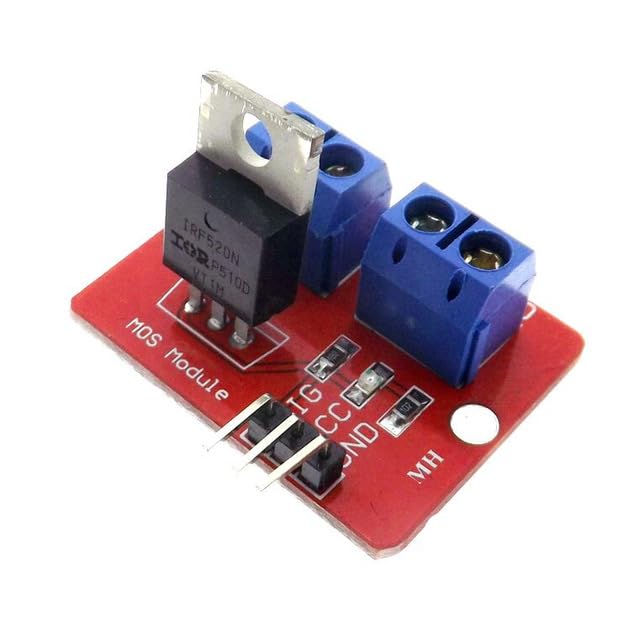

The IRF520 Driver Module consists of an IRF520 MOSFET, gate resistor, power indicator LED, terminal connectors, and control pins. The module usually has three input pins: VCC, GND, and Signal. VCC and GND are connected to the power supply, while the Signal pin receives a control signal from a microcontroller. The output terminals are connected to the external load and power source.

The working principle of the IRF520 MOSFET Driver Module is based on switching operation. When a HIGH signal is provided to the input pin, the MOSFET switches ON and allows current to pass through the load. When a LOW signal is provided, the MOSFET switches OFF and disconnects the load from the power supply. By using PWM (Pulse Width Modulation) signals, the module can also control the speed of motors and the brightness of LEDs.

The IRF520 module is commonly used in automation and electronics projects. It can control DC motors, LED lighting systems, heating elements, pumps, fans, and other high-current devices. It is widely used in Arduino projects, robotics, home automation systems, and IoT-based applications.

The advantages of the IRF520 MOSFET Driver Module include simple operation, low cost, fast switching speed, high efficiency, and the ability to control high-power loads using small control signals. It reduces the risk of damaging microcontrollers by separating the control circuit from the power circuit.

However, the IRF520 MOSFET is not a logic-level MOSFET, which means it does not fully turn ON at the 3.3V or 5V signals provided by some microcontrollers. For better performance, a proper MOSFET driver or logic-level MOSFET may be used in applications requiring high current and low voltage operation.

In conclusion, the IRF520 MOSFET Driver Module is a useful electronic switching device that allows low-power controllers to safely operate high-power electrical loads. It is an important component in many electronic control, automation, and embedded system applications.
