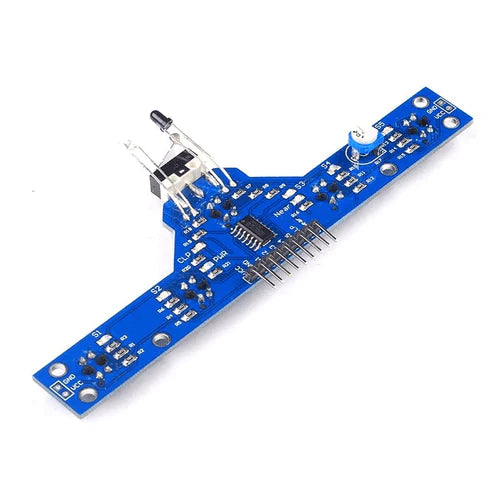

IR Sensor Module 5 Channel Line Tracking Sensor

The IR Sensor Module 5 Channel Line Tracking Sensor is a high-performance infrared line detection module designed for accurate line following, surface detection, and robot navigation applications. It consists of five independent infrared transmitter and receiver sensor pairs arranged in a linear array, enabling the module to detect black and white surfaces with high precision. This multi-channel design provides improved tracking accuracy compared to single or dual-sensor modules, making it ideal for robotics, automation, and intelligent control systems.

The module operates using infrared reflection technology. Each channel contains an infrared LED that emits infrared light toward the surface and an infrared receiver that detects the reflected light. White or light-colored surfaces reflect more infrared light, while black or dark surfaces absorb most of the infrared light. The onboard circuitry processes these reflections and generates output signals that indicate whether each sensor is detecting a dark or light surface.

The 5 Channel IR Sensor Module allows robots to detect line position more accurately by monitoring multiple points simultaneously. This enables smooth navigation along straight paths, curves, intersections, and complex tracks. It is commonly equipped with adjustable sensitivity potentiometers, allowing users to calibrate the detection range and optimize performance under different lighting conditions and surface types.

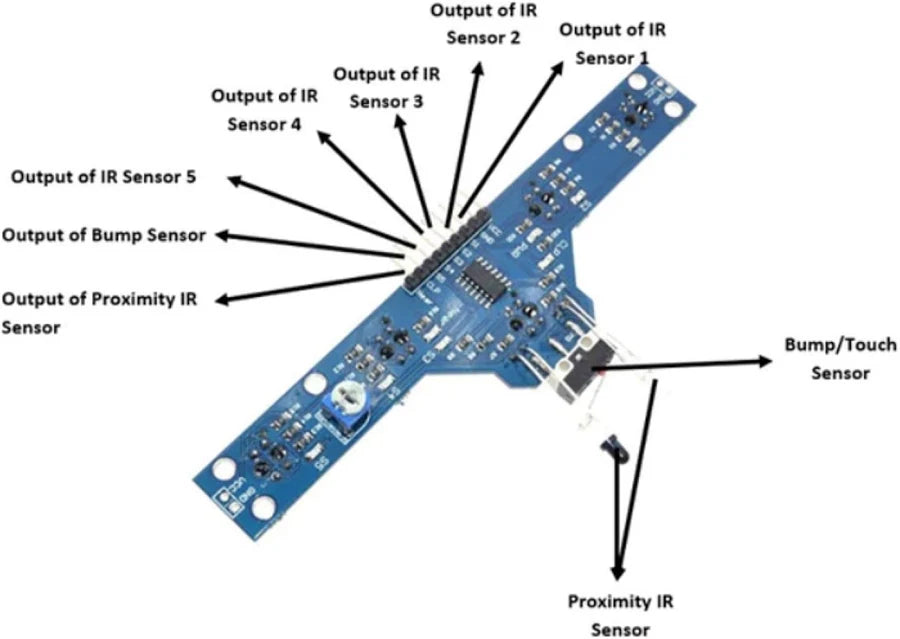

The module provides digital output signals for each sensor channel, making it easy to interface with popular development boards such as Arduino, Raspberry Pi, ESP32, ESP8266, NodeMCU, STM32, PIC, AVR, and 8051 microcontrollers. It can be directly connected to GPIO pins for real-time line detection and robot control applications.

The IR Sensor Module 5 Channel Line Tracking Sensor is widely used in line-following robots, maze-solving robots, autonomous robot vehicles, smart robot cars, industrial automation systems, conveyor belt monitoring, edge detection systems, path detection, obstacle sensing, educational robotics kits, STEM learning projects, and DIY electronics applications. Its five-channel design provides improved stability and more reliable tracking performance for both beginners and advanced robotics developers.

The module offers several advantages, including fast response time, high detection accuracy, adjustable sensitivity, low power consumption, compact size, stable performance, and easy installation. It delivers reliable operation even in dynamic environments, making it suitable for continuous robotic and automation applications.

The IR Sensor Module 5 Channel Line Tracking Sensor is an essential component for engineers, students, hobbyists, and robotics enthusiasts who require accurate line detection and navigation capabilities. Its multi-channel sensing, easy microcontroller integration, reliable performance, and wide range of applications make it an excellent choice for robotics competitions, embedded systems, automation projects, and intelligent electronic devices.
