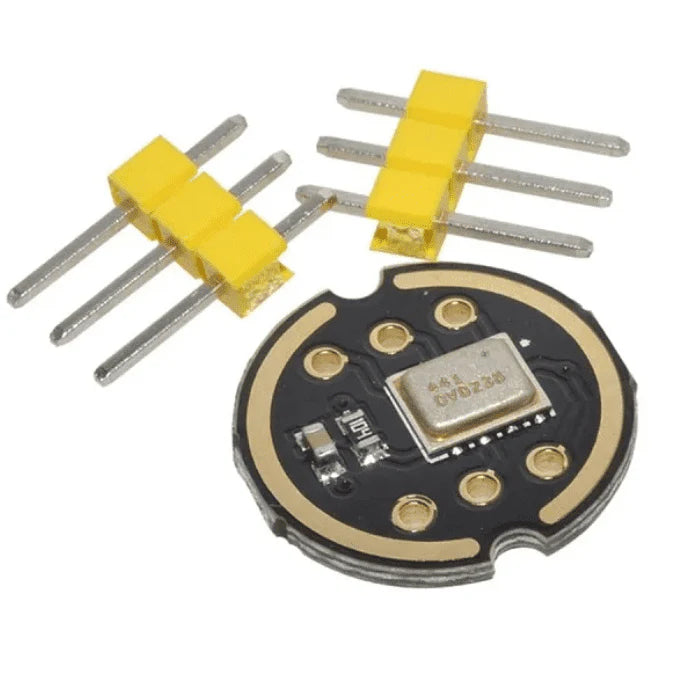

INMP441 MEMS High Precision Omnidirectional Microphone Module I2S

the inmp441 mems high precision omnidirectional microphone module is a compact digital audio sensor designed to capture high-quality sound in embedded systems, iot devices, and smart electronics applications. it is based on the inmp441 mems microphone ic, which includes a built-in analog-to-digital converter (adc) and outputs audio data through a digital i2s interface.

this module is widely used in voice recognition systems, smart assistants, audio recording devices, sound monitoring systems, and ai-based audio processing applications because it provides clean, high-resolution digital audio without requiring external audio conversion hardware.

the working principle of the inmp441 is based on mems (micro-electro-mechanical systems) technology. sound waves enter the microphone and cause tiny mechanical diaphragm movements inside the sensor. these movements are converted into electrical signals, which are then digitized internally by the built-in adc. the processed audio data is then transmitted through the i2s interface in a digital format.

the i2s interface allows direct communication with microcontrollers and processors such as:

• esp32

• raspberry pi

• stm32

• dsp processors

• other i2s-compatible embedded systems

because the output is digital, it eliminates noise issues commonly found in analog microphone systems and provides more stable and accurate audio capture.

the module offers a 24-bit high-resolution audio output, which allows precise sound recording and analysis. it has an omnidirectional pickup pattern, meaning it captures sound equally from all directions, making it suitable for general voice input and environmental sound recording.

one of the key advantages of the inmp441 module is its low power consumption, typically around 1.4ma, making it ideal for battery-powered and portable devices. it also features excellent power supply rejection, which helps maintain audio quality even in noisy electronic environments.

the module typically provides:

• high signal-to-noise ratio (snr) of around 61 dba

• frequency response range from 60hz to 15khz

• high sensitivity for clear audio capture

• stable digital audio output

these features make it suitable for both simple and advanced audio processing applications.

the inmp441 microphone module is commonly used in:

• voice recognition systems

• smart home assistants

• iot audio monitoring devices

• speech-controlled robotics

• ai and machine learning audio projects

• sound detection and analysis systems

• security and surveillance audio systems

• educational electronics projects

in esp32-based projects, the module is especially popular because the esp32 supports native i2s communication, allowing real-time digital audio processing for voice detection and streaming applications.

overall, the inmp441 mems high precision omnidirectional microphone module is a reliable, low-noise, and high-quality digital audio sensing solution that provides accurate sound capture for voice recognition, iot systems, embedded electronics, and advanced audio processing applications.
