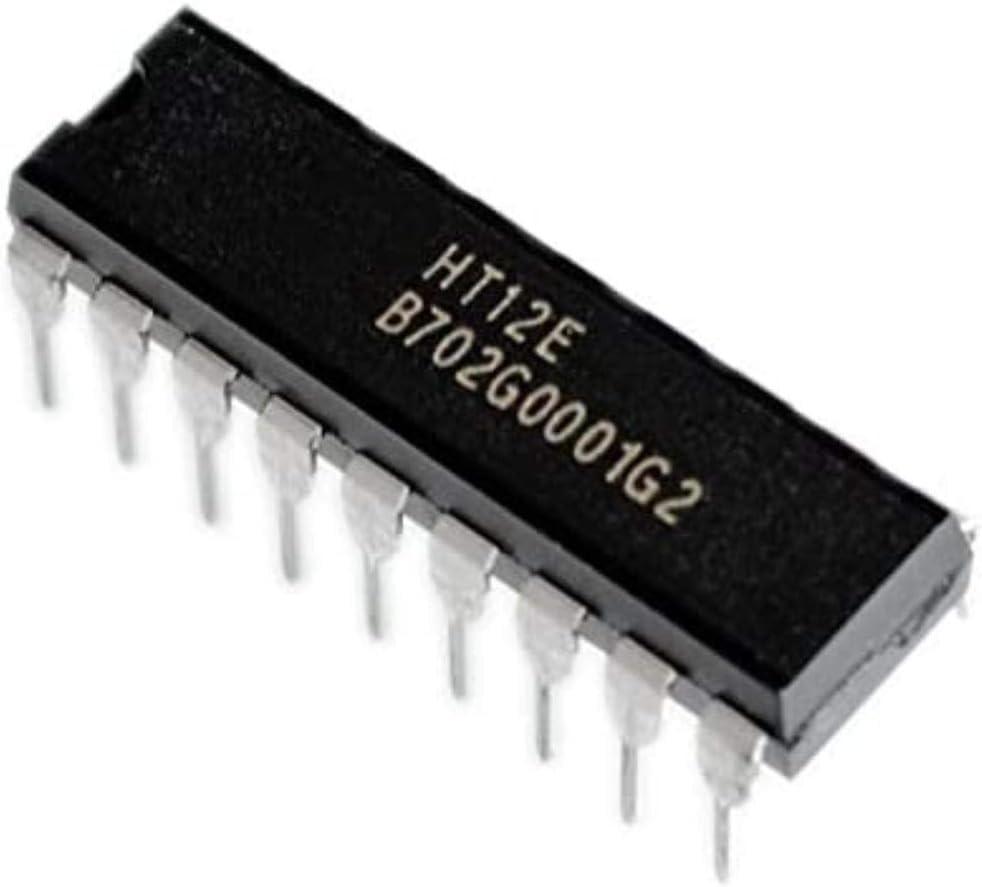

HT12E Encoder IC

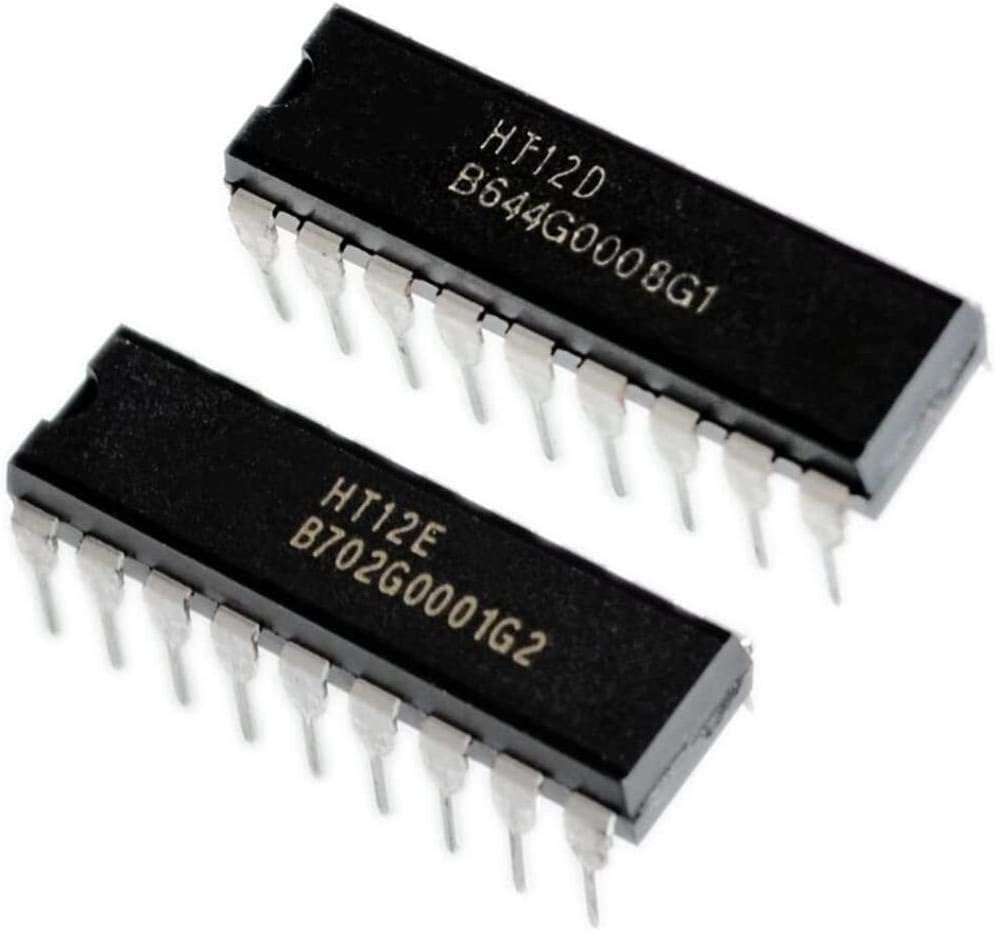

The HT12E Encoder IC is a CMOS-based encoder integrated circuit commonly used in wireless remote control and data transmission applications. It is designed to convert 4-bit parallel data inputs into a serial data output, which can be transmitted through RF transmitter modules, infrared systems, or other communication devices. The IC is widely used for creating simple and reliable remote control systems because of its low power consumption, easy operation, and compatibility with HT12D decoder IC.

The HT12E IC has 12 address and data pins, including 8 address pins and 4 data input pins. The address pins allow multiple encoder and decoder pairs to be configured with unique codes, preventing interference between different systems. When one or more data input pins are activated, the IC generates a serial coded output signal containing the address and data information. This coded signal is then sent to a transmitter module for wireless communication.

The HT12E Encoder IC operates at a low voltage and requires very few external components, making it suitable for compact electronic designs. It is commonly used with 315MHz and 433MHz RF transmitter modules for remote switching and control applications. The IC provides stable performance and is widely used in security systems, home automation, robotics, and wireless control projects.

The HT12E is an ideal choice for hobbyists, students, and engineers who need a simple encoder solution for transmitting digital data wirelessly. Its easy interfacing, low power operation, and reliable data encoding capability make it a popular component in remote control and embedded system applications.
