Bluetooth UART Module Based on HC-05

The Bluetooth UART Module based on HC-05 is a compact and reliable wireless communication module designed to provide Bluetooth connectivity between microcontrollers and Bluetooth-enabled devices such as smartphones, tablets, laptops, and computers. Based on the HC-05 Bluetooth 2.0 + EDR chipset, the module enables wireless serial communication using the UART (Universal Asynchronous Receiver/Transmitter) interface. It eliminates the need for wired serial connections, making it an ideal solution for robotics, home automation, industrial control, wireless data logging, and Internet of Things (IoT) applications.

The HC-05 module operates in the 2.4 GHz ISM frequency band and supports Bluetooth Version 2.0 + Enhanced Data Rate (EDR), providing a wireless communication range of up to 10 meters under normal operating conditions. Unlike the HC-06 module, the HC-05 can operate in both Master and Slave modes, allowing it to either initiate or accept Bluetooth connections. This flexibility makes it suitable for communication between two HC-05 modules or between a microcontroller and a Bluetooth-enabled mobile device.

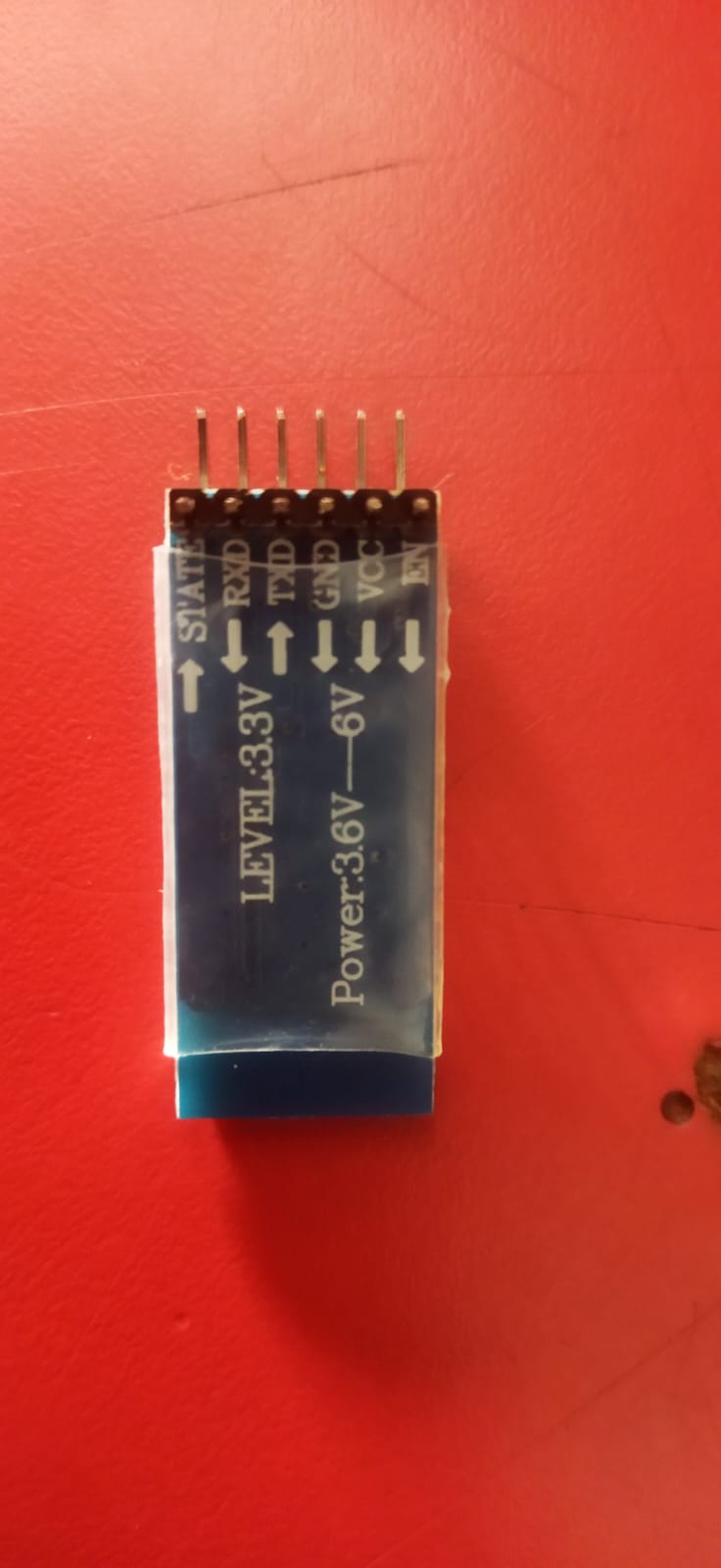

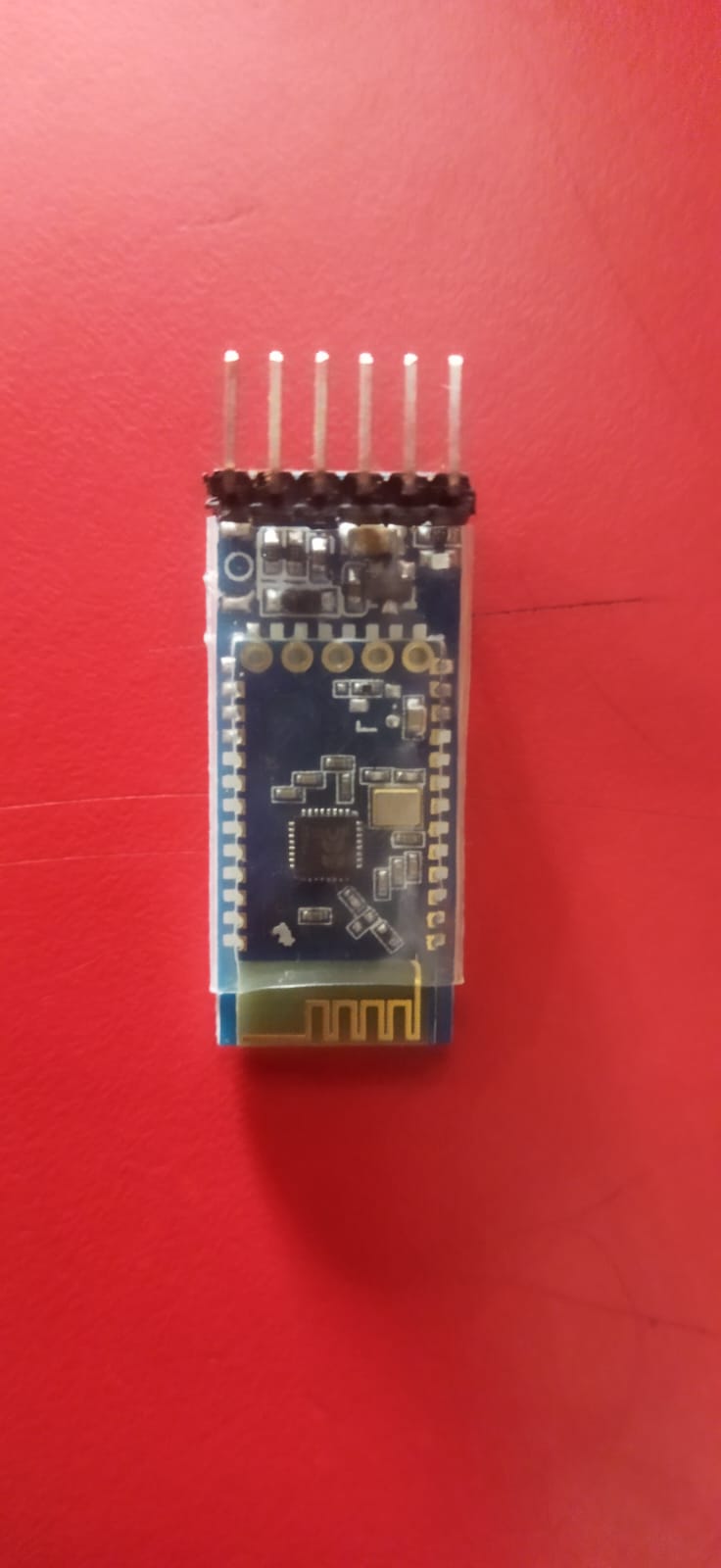

The module typically operates from a 3.6 V to 6 V DC power supply and includes an onboard voltage regulator, allowing it to be powered directly from 5 V development boards. Internally, the UART communication uses 3.3 V TTL logic levels, making it compatible with most embedded systems. The module provides pins such as VCC, GND, TXD, RXD, STATE, and EN (KEY). The EN (KEY) pin is used to enter AT Command Mode, where users can configure parameters such as the Bluetooth device name, pairing password, baud rate, and operating mode.

Communication with the HC-05 is performed through standard UART serial communication, with a default baud rate of 9600 bps in data mode. Using AT commands, users can modify the baud rate and other configuration settings according to their application requirements. The onboard LED indicator displays the module's connection status by blinking when waiting for pairing and changing its blink pattern once a Bluetooth connection is established.

The HC-05 Bluetooth UART Module is fully compatible with popular development platforms such as Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, AVR, and other UART-enabled microcontrollers. It is widely used in wireless robotics, smart home automation, industrial monitoring, Bluetooth-controlled vehicles, wireless sensor networks, remote data acquisition, security systems, healthcare devices, educational projects, and IoT applications. Its simple interface and reliable wireless communication make it one of the most popular Bluetooth modules for embedded electronics.

The main advantages of the HC-05 Bluetooth UART Module include support for both Master and Slave modes, stable wireless communication, easy UART interfacing, low power consumption, configurable AT commands, compact design, low cost, and wide compatibility with microcontroller platforms. These features make it suitable for both prototype development and commercial embedded systems requiring short-range wireless communication.

Overall, the Bluetooth UART Module based on HC-05 is a versatile, efficient, and easy-to-use wireless serial communication module. Its dual operating modes, simple UART interface, reliable Bluetooth connectivity, and compatibility with a wide range of embedded platforms make it an excellent choice for students, hobbyists, engineers, and professionals developing wireless control, monitoring, and IoT-based electronic systems.
