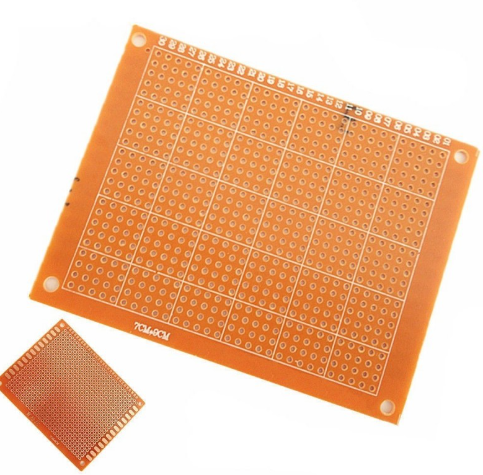

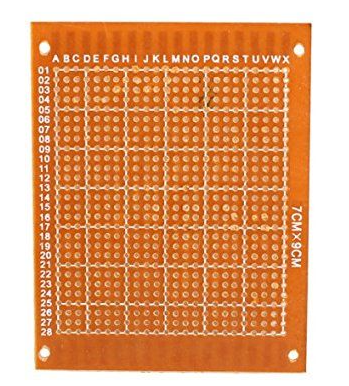

General Purpose PC Boards 4 x 4 Inches

The General Purpose PC Board (4 x 4 inches) is a versatile printed circuit board used for designing, assembling, and testing custom electronic circuits. It is a blank PCB that allows engineers, students, and hobbyists to build their own electronic projects by manually placing and soldering components such as resistors, capacitors, LEDs, ICs, transistors, sensors, and connectors.

Unlike ready-made circuit boards, a general-purpose PCB does not contain pre-designed electronic circuits. It provides a flexible platform where users can create their own circuit layouts according to project requirements. The 4 x 4 inch size offers a convenient working area suitable for small and medium electronic prototypes.

Specifications

• Board Type: General Purpose PCB / Prototype Board

• Size: 4 x 4 inches

• Material: FR-4 / Phenolic PCB material (depending on model)

• Copper Layer: Single-sided or double-sided (model dependent)

• Hole Type: Through-hole component mounting holes

• Mounting: Soldering required

• Application: Electronic circuit prototyping

Working Principle

A general-purpose PCB provides copper tracks and drilled holes that allow electronic components to be physically mounted and electrically connected. Components are inserted through the holes and soldered to the copper pads, creating a permanent circuit connection.

Users can design the circuit arrangement manually by connecting components using solder bridges, jumper wires, or copper tracks. This makes it ideal for experimenting with different circuit designs before creating a custom PCB.

Features

• Large 4 x 4 inch working area

• Suitable for custom circuit development

• Supports through-hole electronic components

• Easy soldering and assembly

• Durable and reusable prototype platform

• Compatible with various electronic components

• Ideal for testing and learning electronics

• Helps create permanent prototypes

Common Applications

The 4 x 4 inch General Purpose PCB is commonly used for:

• Arduino and microcontroller projects

• LED lighting circuits

• Power supply circuits

• Sensor-based projects

• Robotics projects

• Audio amplifier circuits

• Electronic control systems

• DIY electronics experiments

• Student engineering projects

• Circuit testing and prototyping

• Repair and modification work

Advantages

• Allows complete freedom in circuit design

• Low-cost alternative to custom PCB manufacturing

• Suitable for beginners and professionals

• Provides strong mechanical support for components

• Helps in developing and testing electronic prototypes

The General Purpose PC Board 4 x 4 inches is an essential tool for electronics designers, students, engineers, and hobbyists. It provides a reliable platform for learning circuit design, building prototypes, and developing innovative electronic projects.

With its convenient size, flexible design capability, and compatibility with a wide range of components, the 4 x 4 inch General Purpose PCB is widely used in educational labs, electronics workshops, and DIY electronics development.
