DPDT Switch (Double Pole Double Throw Switch)

A DPDT (Double Pole Double Throw) Switch is an electrical switch that is used to control two separate electrical circuits simultaneously while allowing each circuit to connect to one of two different outputs. It is one of the most commonly used switches in electrical and electronic systems for changing the direction of current flow, selecting between two circuits, or reversing the polarity of a power supply. DPDT switches are widely used in motor control, automation systems, robotics, industrial equipment, power distribution, and electronic projects.

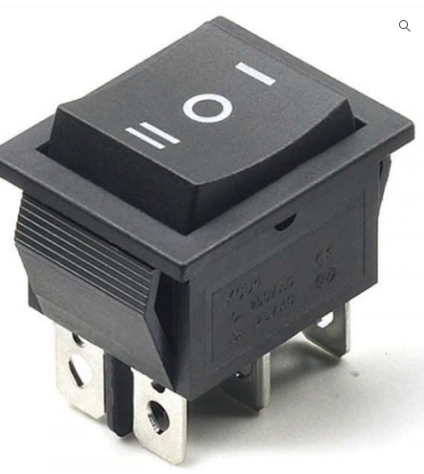

A DPDT switch contains six terminals arranged in two rows of three terminals each. The two middle terminals are the common terminals, while the upper and lower terminals are the output connections. Since the switch has two poles, it can control two independent circuits at the same time. Each pole can be connected to one of two output terminals, providing flexible switching functionality.

The working principle of a DPDT switch is based on mechanical switching. When the switch lever is moved to one position, each common terminal connects to one set of output terminals. When the lever is moved to the opposite position, the common terminals connect to the other set of output terminals. This changes the path of current flow and allows the connected circuit to operate in a different mode. In motor control applications, the switch reverses the polarity supplied to a DC motor, causing it to rotate in the opposite direction.

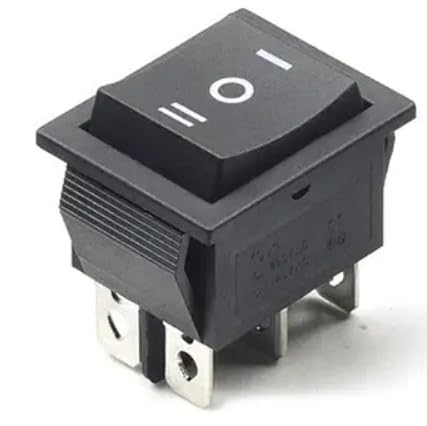

DPDT switches are available in several configurations, including ON-ON, ON-OFF-ON, and momentary types. The ON-ON type switches between two circuits, while the ON-OFF-ON type provides an additional center OFF position where both circuits are disconnected. Momentary DPDT switches return to their original position after being released.

These switches are commonly used with DC motors, actuators, relays, battery systems, audio equipment, communication devices, robotics, model vehicles, industrial machinery, laboratory instruments, and electronic control panels. They are especially useful in applications where reversing motor direction or selecting between two power sources is required.

The applications of a DPDT switch include forward and reverse motor control, polarity reversal circuits, battery charging systems, power source selection, robotics control, automation systems, industrial control panels, home electrical projects, educational electronics, prototype development, signal routing, testing equipment, and DIY electronic circuits.

The advantages of a DPDT switch include simple operation, reliable mechanical switching, the ability to control two circuits simultaneously, easy installation, long mechanical life, low cost, and versatility in both AC and DC circuits. It provides an efficient method for changing electrical connections without requiring complex electronic components.

In conclusion, the DPDT (Double Pole Double Throw) Switch is a versatile electrical switching device that allows simultaneous control of two independent circuits and enables functions such as polarity reversal and circuit selection. Its reliability, simple construction, and wide range of applications make it an essential component in electrical, electronic, industrial, and robotics systems.
