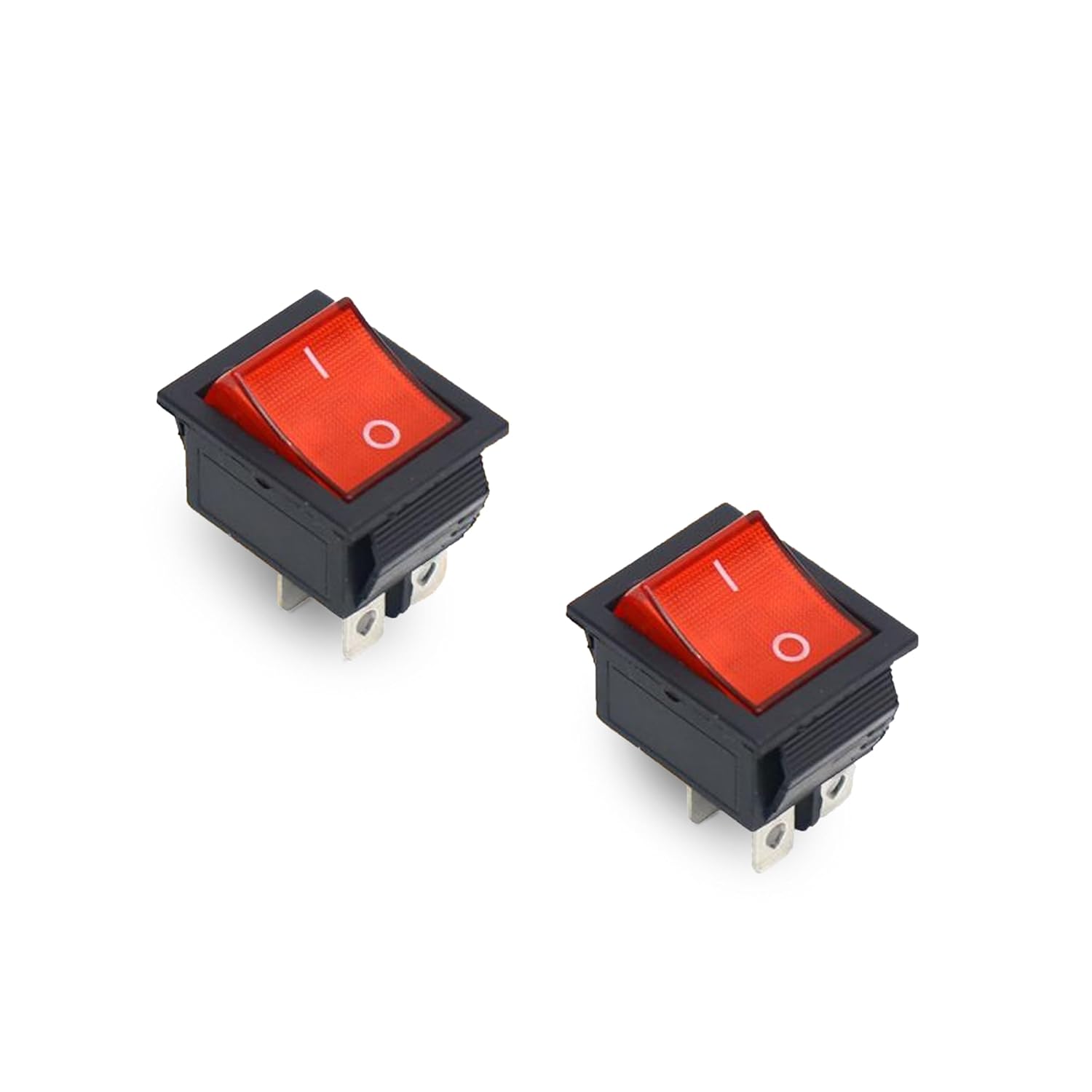

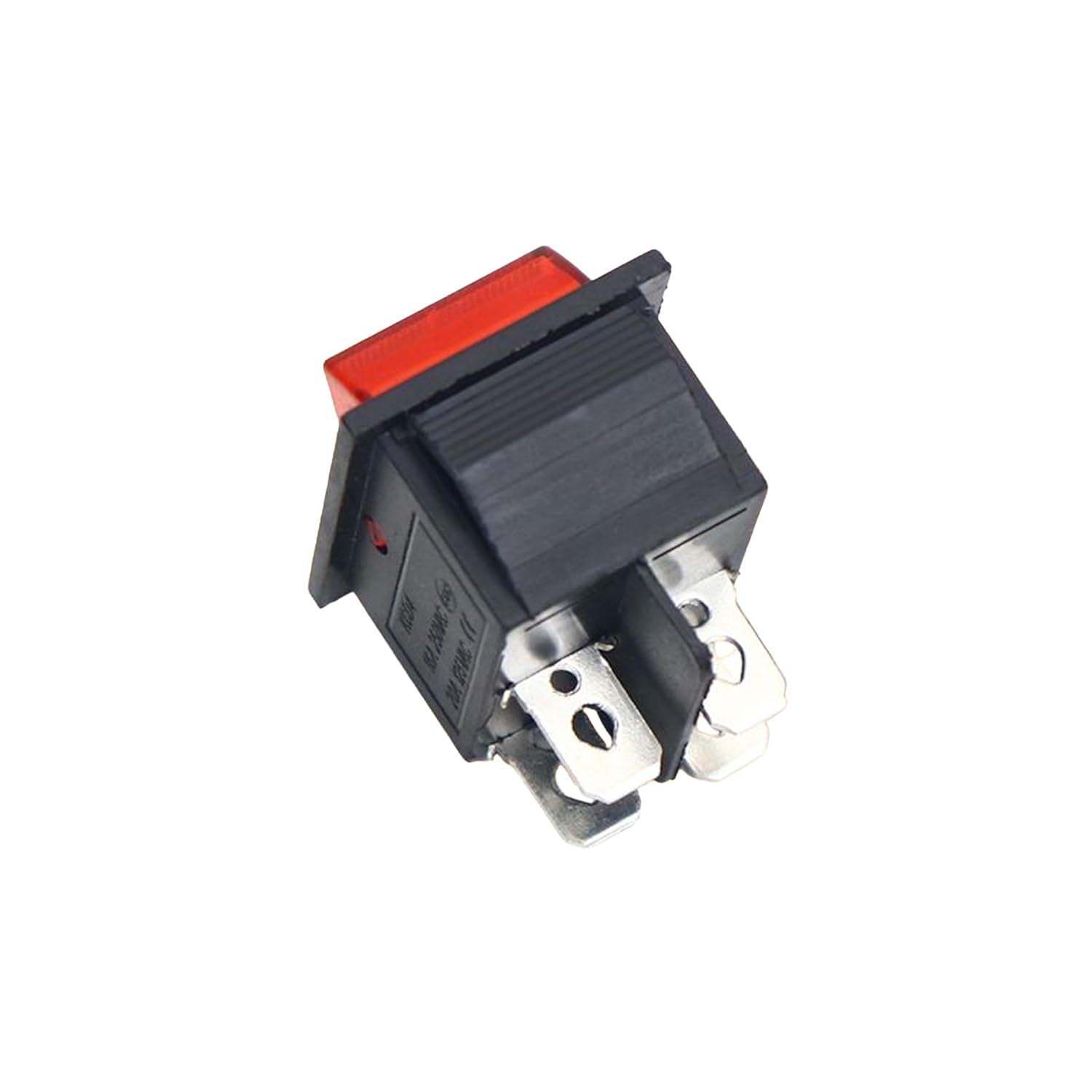

DPDT ON-OFF-ON Rocker Switch

The DPDT ON-OFF-ON Rocker Switch is a versatile electrical switch designed for controlling two separate circuits simultaneously. Featuring a Double Pole Double Throw (DPDT) configuration, this switch offers three positions: ON, OFF, and ON, allowing users to switch between two circuits or operating modes with a center-off position for complete disconnection. Its durable rocker mechanism and compact design make it ideal for control panels, power distribution systems, automotive applications, industrial equipment, robotics, and DIY electronics projects.

Key Features

• DPDT (Double Pole Double Throw) configuration

• Three-position ON-OFF-ON operation

• Controls two independent circuits simultaneously

• Center OFF position for circuit isolation

• Durable rocker-style actuator

• Reliable electrical performance

• Easy panel mounting installation

• Suitable for AC and DC switching applications

Specifications

• Product Type: DPDT Rocker Switch

• Switch Configuration: Double Pole Double Throw (DPDT)

• Operation: ON-OFF-ON

• Actuator Type: Rocker

• Mounting Type: Panel Mount

• Contact Type: Mechanical Switching Contacts

• Application: Circuit control and power switching

Applications

• Power control systems

• Motor direction control circuits

• Automotive electrical systems

• Industrial control panels

• Robotics and automation projects

• DIY electronics projects

• Battery switching applications

• Equipment mode selection controls

Package Includes

• 1 × DPDT ON-OFF-ON Rocker Switch

Benefits

• Enables control of two circuits with a single switch

• Provides a convenient center-off position

• Easy to install and operate

• Durable construction for long service life

• Suitable for professional and hobby electronics projects

The DPDT ON-OFF-ON Rocker Switch is a reliable and multifunctional switching component that offers flexible circuit control, making it an excellent choice for electrical, industrial, automotive, and electronic applications requiring multiple switching positions.
