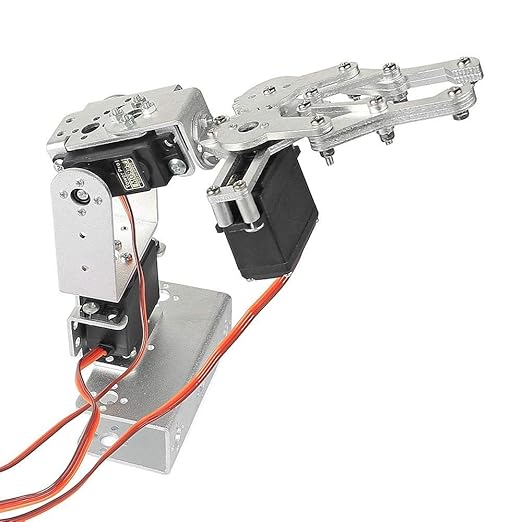

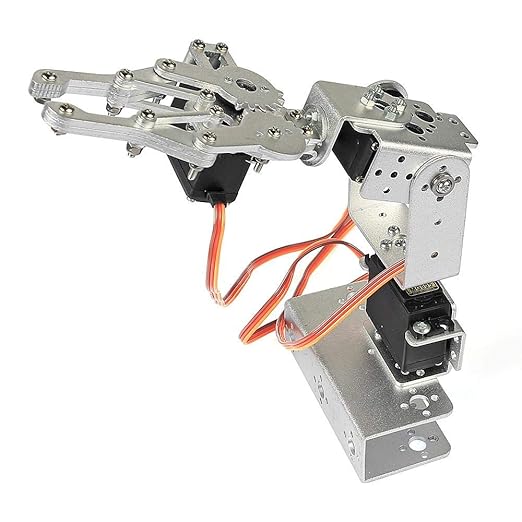

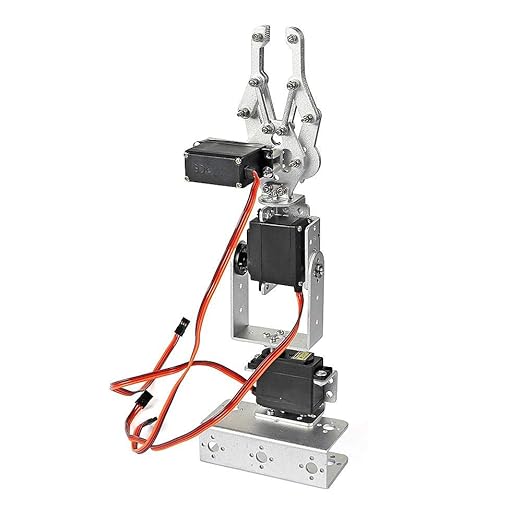

DIY 3DOF 3-Axis Control Palletizing Robot Arm Model with Servo Arm Plate (Including MG995 Servo, Fully Assembled)

The DIY 3DOF 3-Axis Control Palletizing Robot Arm Model with Servo Arm Plate is a fully assembled robotic arm designed for educational, research, and light-duty automation applications. It features three degrees of freedom (3DOF), allowing the arm to perform accurate pick-and-place (palletizing) operations using high-torque MG995 servo motors. The robot arm is supplied pre-assembled, eliminating the need for mechanical assembly and allowing users to focus on programming, control, and automation. It is ideal for robotics education, Arduino projects, STEM learning, industrial automation demonstrations, AI development, machine vision, IoT applications, and prototype development.

The robotic arm is built using a durable servo arm plate structure, typically made from high-quality aluminum alloy or engineering-grade metal components that provide excellent rigidity, stability, and long service life. The assembled mechanical structure includes the base, arm links, mounting brackets, gripper mechanism, bearings, fasteners, and all required MG995 metal gear servo motors, making it ready for immediate integration with a compatible controller.

The robot arm provides 3 Degrees of Freedom (3DOF), allowing independent movement along three axes:

• Base Rotation – Rotates the entire arm horizontally to reach different working positions.

• Shoulder Joint – Raises and lowers the arm for vertical movement.

• Gripper Control – Opens and closes the gripper to pick up, hold, and release lightweight objects.

The working principle of the 3DOF Robot Arm is based on servo motor position control. Each MG995 servo motor receives a Pulse Width Modulation (PWM) signal from a microcontroller. The internal control circuit of the servo compares the commanded position with the actual shaft position using a built-in feedback potentiometer. The servo automatically rotates until the desired angle is reached and continuously holds that position with high accuracy. By coordinating the movement of all servo motors, the robotic arm can perform smooth and repeatable pick-and-place operations.

The included MG995 metal gear servos provide high torque, making the robotic arm capable of lifting and moving lightweight objects with improved strength and durability. The metal gear construction offers greater wear resistance and longer operational life compared to plastic gear servos.

The robotic arm is compatible with popular development platforms such as Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi, STM32, PIC, and AVR microcontrollers. It can be programmed using the Arduino IDE or other embedded development environments and can be controlled through joysticks, Bluetooth, Wi-Fi, wireless controllers, computer vision systems, or mobile applications.

The integrated gripper enables the robotic arm to grasp, transport, and release small items such as plastic blocks, electronic components, laboratory objects, and lightweight materials. The precision of the arm makes it suitable for learning robotic motion control, kinematics, and automation principles.

The applications of the DIY 3DOF 3-Axis Control Palletizing Robot Arm include pick-and-place systems, object sorting, robotics education, STEM learning, engineering laboratories, industrial automation demonstrations, AI and machine vision projects, IoT systems, conveyor automation, laboratory experiments, prototype development, embedded systems, research projects, educational competitions, and DIY robotics.

The advantages of the robotic arm include a fully assembled design, high-torque MG995 metal gear servos, accurate position control, smooth and repeatable motion, durable servo arm plate construction, compact size, easy programming, compatibility with popular microcontrollers, low maintenance, upgradeable design, and suitability for beginners, students, researchers, and robotics enthusiasts.

In conclusion, the DIY 3DOF 3-Axis Control Palletizing Robot Arm Model with Servo Arm Plate (Including MG995 Servo, Fully Assembled) is a reliable and ready-to-use robotic arm designed for precision motion control and educational automation. Its pre-assembled construction, high-performance MG995 servo motors, accurate three-axis movement, and compatibility with widely used microcontroller platforms make it an excellent choice for robotics training, embedded system development, automation research, AI applications, and prototype engineering projects.
