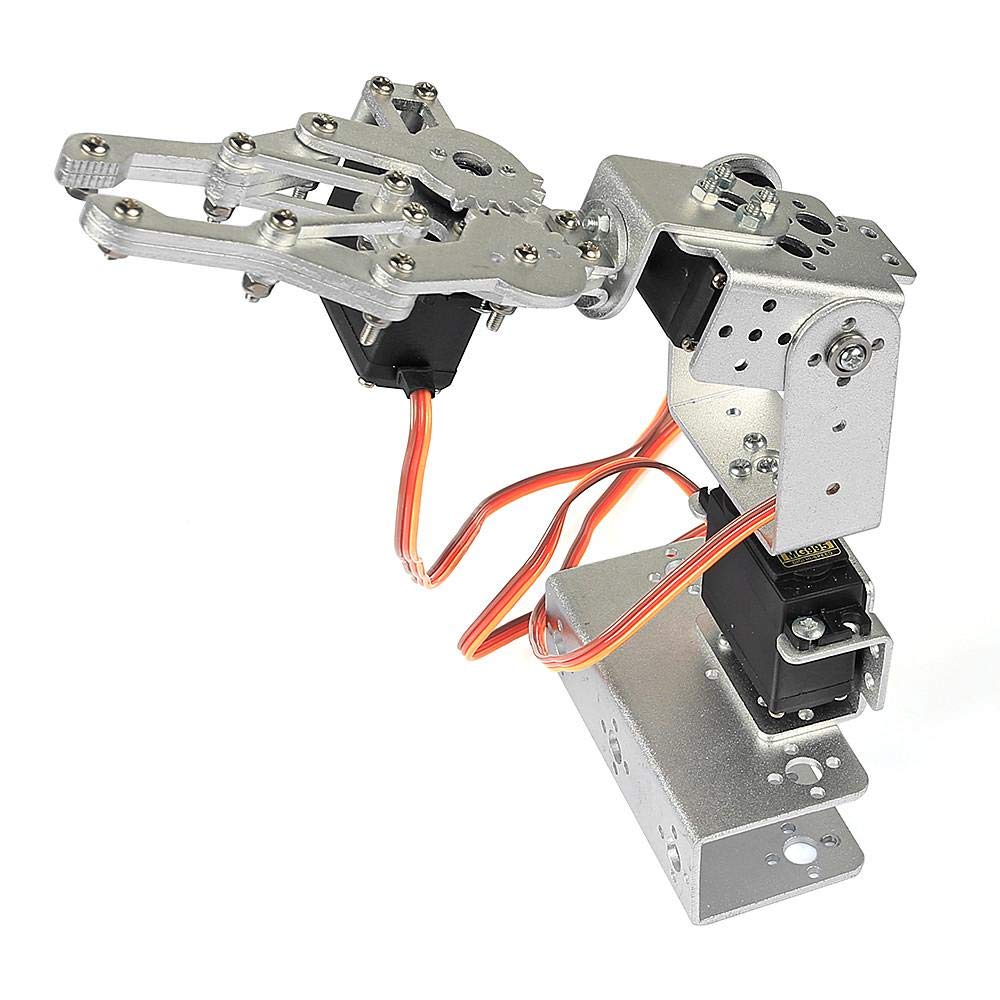

DIY 3 DOF 3-Axis Control Palletizing Robotic Arm Module with Servo Motor

The DIY 3 DOF (Three Degrees of Freedom) 3-Axis Control Palletizing Robotic Arm Module with Servo Motor is a compact programmable robotic arm designed for learning robotics, automation, and motion control. It features three independently controlled axes of movement and is powered by servo motors, allowing it to perform precise pick-and-place (palletizing) operations. This robotic arm is widely used in STEM education, Arduino projects, robotics competitions, automation research, AI development, machine vision applications, and DIY engineering projects.

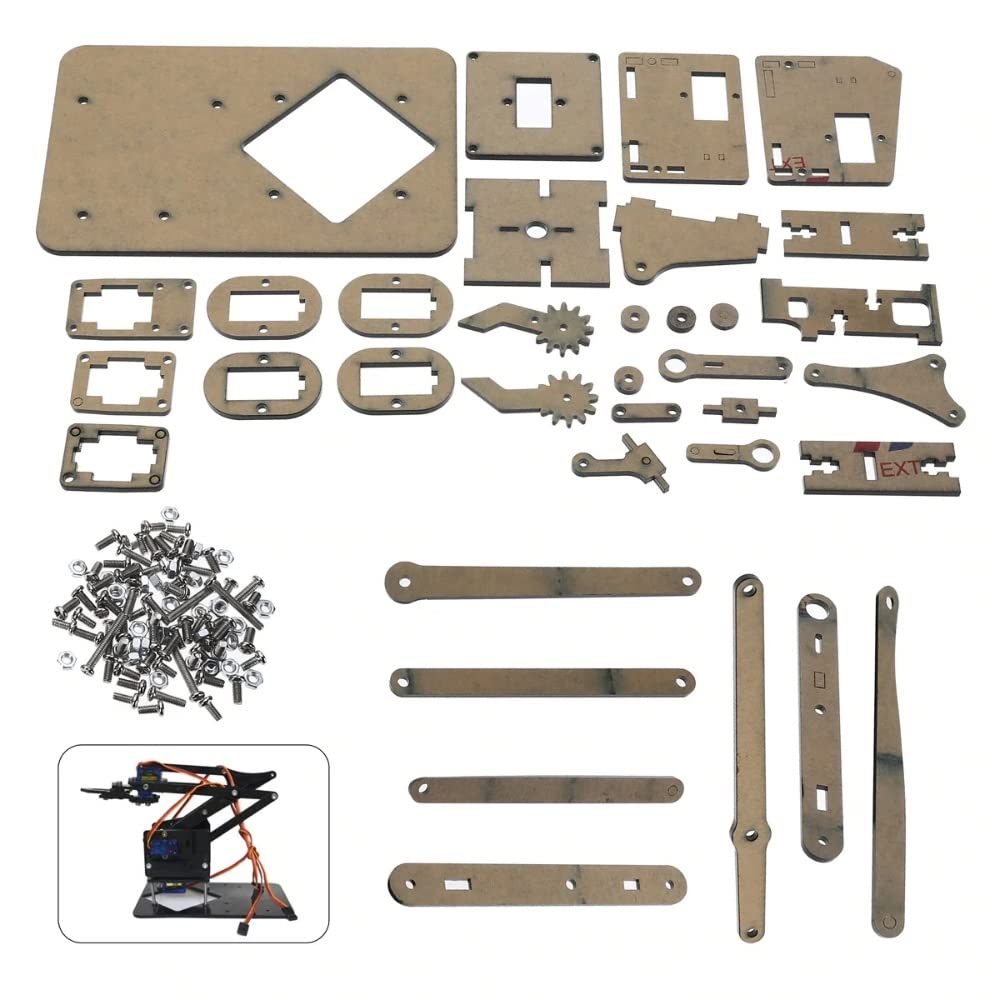

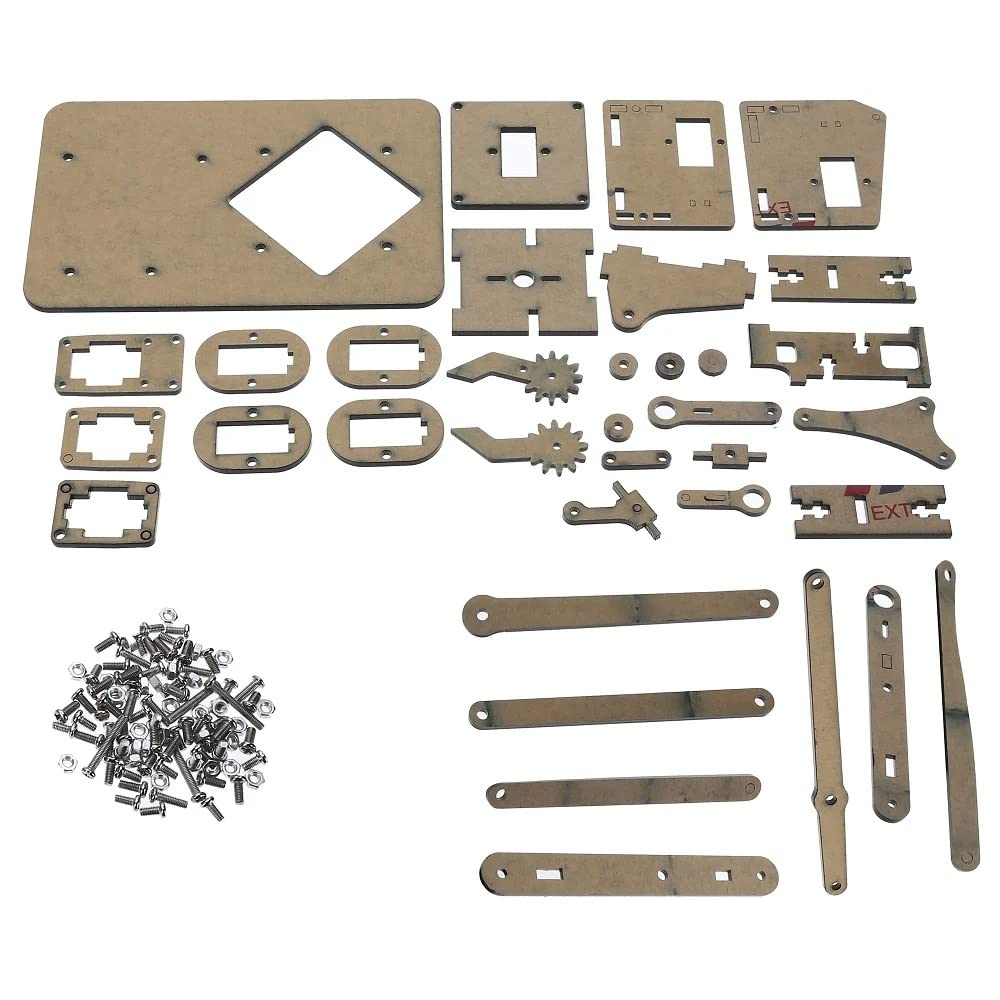

The robotic arm is constructed from lightweight yet durable materials such as aluminum alloy, acrylic, or high-quality engineering plastic, depending on the model. The kit generally includes the robotic arm structure, servo motors, mounting brackets, screws, bearings, linkage components, gripper, and assembly hardware. The modular design allows easy assembly, maintenance, and future upgrades.

The arm provides 3 Degrees of Freedom (3 DOF), enabling controlled movement in three independent directions:

• Base Rotation (Axis 1) – Rotates the robotic arm left and right to reach different positions.

• Shoulder Joint (Axis 2) – Raises and lowers the main arm for vertical movement.

• Gripper/Wrist Joint (Axis 3) – Controls the opening and closing of the gripper to pick up and release objects.

The working principle of the DIY 3 DOF Robotic Arm is based on servo motor position control. Each servo motor receives Pulse Width Modulation (PWM) signals from a microcontroller such as Arduino, ESP32, Raspberry Pi, STM32, PIC, or AVR. The internal control circuit of each servo continuously monitors its shaft position using a feedback potentiometer. When a PWM signal specifies a target angle, the servo rotates until the desired position is reached and then holds that position accurately.

By coordinating the movement of all three servo motors, the robotic arm can perform palletizing operations such as picking up objects from one location, moving them through a programmed path, and placing them at another location. This synchronized movement allows accurate object handling and demonstrates the principles of robotic manipulation and automation.

The integrated gripper is designed to securely hold lightweight objects such as plastic blocks, small boxes, electronic components, and educational models. The gripping force depends on the installed servo motor and the mechanical design of the arm.

The robotic arm is compatible with popular development platforms including Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi, STM32, PIC, and AVR. It can be programmed using Arduino IDE, Python (with Raspberry Pi), or other embedded programming environments. The arm can also be integrated with Bluetooth, Wi-Fi, computer vision cameras, joysticks, or wireless controllers for advanced applications.

The applications of the DIY 3 DOF Palletizing Robotic Arm include pick-and-place automation, object sorting, educational robotics, STEM learning, industrial automation demonstrations, machine vision systems, AI research, conveyor belt automation, laboratory experiments, prototype development, embedded systems, IoT projects, engineering education, robotic competitions, and DIY electronics projects.

The advantages of the robotic arm include accurate servo-based positioning, three-axis movement, lightweight construction, modular design, easy assembly, programmable control, compatibility with multiple microcontrollers, smooth motion, low power consumption, reusable components, educational value, and suitability for beginners as well as advanced robotics developers.

In conclusion, the DIY 3 DOF 3-Axis Control Palletizing Robotic Arm Module with Servo Motor is a versatile and easy-to-use robotic platform for learning and developing automation systems. Its three-axis motion, precise servo control, integrated gripper, and compatibility with popular microcontrollers make it an ideal solution for robotics education, automation training, AI experiments, prototype development, and embedded system applications.
