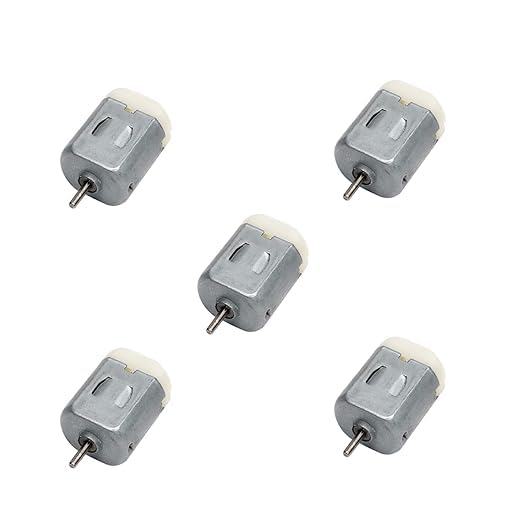

DC Toy Motor (5 Pieces)

The DC Toy Motor (5 Pieces) is a pack of compact, lightweight, and low-voltage brushed DC motors designed to convert direct current (DC) electrical energy into mechanical rotational motion. These motors are widely used in educational electronics, robotics, DIY projects, battery-operated toys, miniature fans, science experiments, and prototype development. Their simple construction, low cost, and ease of use make them ideal for beginners, students, hobbyists, and engineers working on small electromechanical systems.

Each motor consists of a metal housing, armature (rotor), permanent magnets (stator), commutator, carbon brushes, output shaft, and internal bearings. The permanent magnets create a fixed magnetic field, while the armature contains copper windings mounted on an iron core. The commutator and carbon brushes continuously supply current to the rotating armature, enabling smooth and continuous rotation.

The working principle of the DC Toy Motor is based on electromagnetic force. When a DC voltage is applied to the motor terminals, electric current flows through the armature windings, creating a magnetic field. This magnetic field interacts with the magnetic field produced by the permanent magnets, generating rotational torque that causes the armature and output shaft to rotate. As the rotor turns, the commutator automatically reverses the direction of current flowing through the armature windings, allowing continuous rotation in the same direction. Reversing the polarity of the power supply changes the direction of motor rotation.

These toy motors generally operate within a voltage range of 3V to 6V DC, although some models can also operate at 1.5V to 12V DC, depending on the manufacturer and specifications. The motor speed increases with the applied voltage, while the output torque depends on the supplied current and mechanical load. They can be powered using batteries, regulated DC power supplies, or motor driver circuits.

The motors are compatible with motor driver modules such as L293D, L298N, TB6612FNG, and MOSFET-based drivers. They can also be controlled using Arduino, ESP32, ESP8266, Raspberry Pi (through a motor driver), STM32, PIC, and AVR microcontrollers. Speed control can be achieved using Pulse Width Modulation (PWM), allowing smooth adjustment of motor speed.

The applications of the DC Toy Motor include battery-operated toys, robot cars, mini cooling fans, electronic models, science fair projects, educational experiments, DIY electronics, miniature pumps, vibration devices, robotic mechanisms, automatic projects, prototype development, hobby electronics, embedded systems, and engineering demonstrations.

The advantages of the DC Toy Motor include compact size, lightweight design, low power consumption, simple operation, easy speed control, reversible rotation, low cost, reliable performance, easy integration with electronic circuits, compatibility with batteries and motor drivers, and long service life when operated within the recommended voltage range. The pack of 5 motors is ideal for classrooms, laboratories, robotics kits, and multiple project development.

In conclusion, the DC Toy Motor (5 Pieces) is a versatile and economical set of miniature brushed DC motors that efficiently convert electrical energy into rotary motion. Their compact design, ease of operation, compatibility with popular microcontrollers, and suitability for a wide range of educational, robotics, and DIY applications make them an essential component for electronics enthusiasts, students, and engineers.
