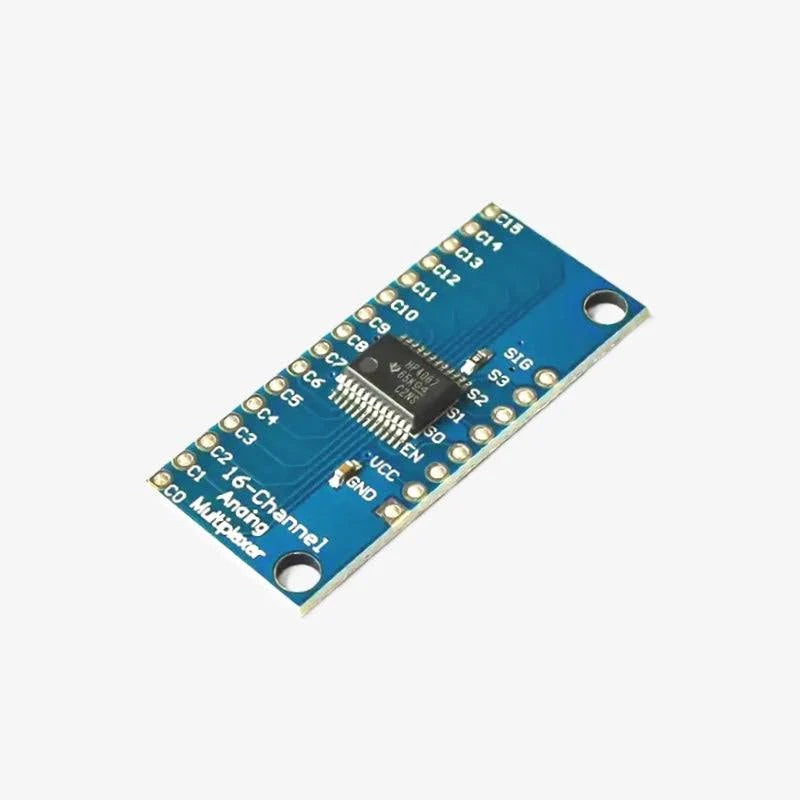

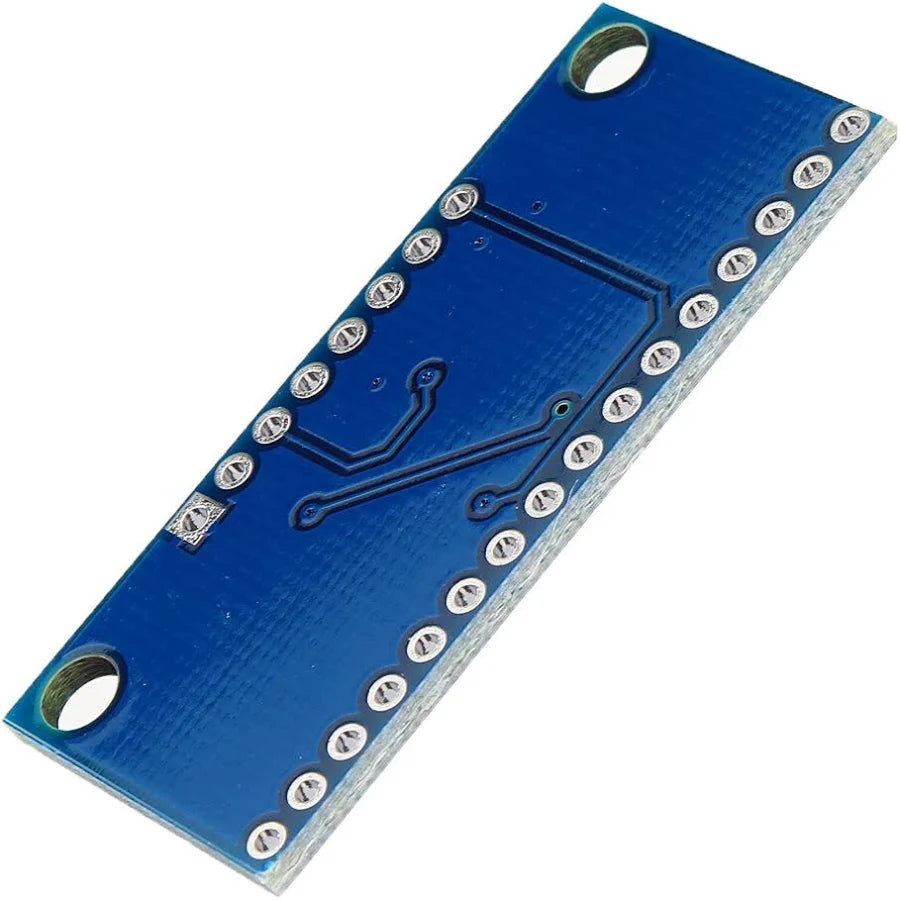

CD74HC4067 CMOS High Speed 16-Channel Analog Multiplexer Module

The CD74HC4067 CMOS High Speed 16-Channel Analog Multiplexer Module is a versatile electronic switching module used to connect multiple analog or digital signals to a single input/output pin of a microcontroller. It is based on the CD74HC4067 IC, which works as a 16-channel multiplexer and demultiplexer. This module allows users to expand the number of available input/output channels on Arduino, ESP32, Raspberry Pi, and other microcontroller-based projects.

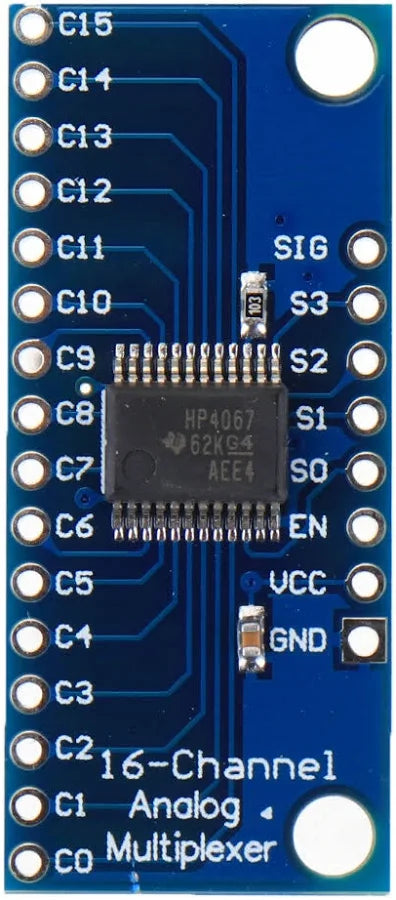

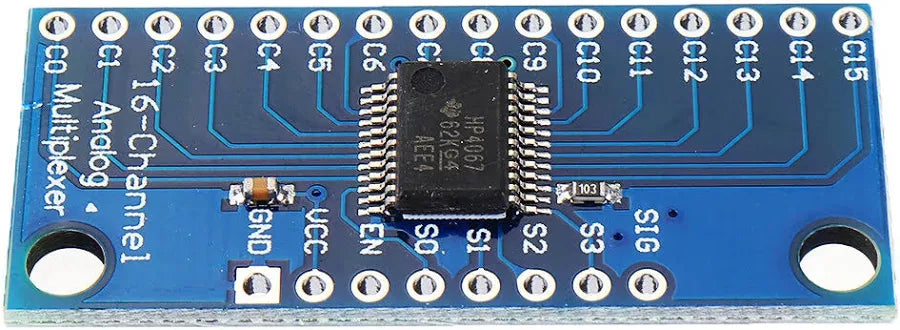

The module contains 16 independent signal channels (C0 to C15) that can be individually selected using four digital control pins (S0, S1, S2, and S3). By changing the logic combination of these select pins, any one of the 16 channels can be connected to the common input/output pin (SIG). This makes it possible to read multiple sensors or control multiple devices while using fewer microcontroller pins.

The CD74HC4067 module supports both analog and digital signals, making it suitable for applications such as sensor expansion, data acquisition systems, robotics, automation projects, and electronic testing equipment. It offers fast switching speed, low power consumption, and reliable signal transmission with minimal interference.

The module operates with a wide voltage range and is compatible with 3.3V and 5V logic systems. It features an enable pin that can be used to turn the multiplexer on or off, providing better control in complex circuits. The compact design and simple interface make it easy to integrate into various electronic projects.

Features

• 16-channel analog and digital signal multiplexer
• Based on high-speed CMOS CD74HC4067 IC
• Supports analog voltage and digital signals
• Four digital selection pins for channel control
• Fast switching response
• Low power consumption
• Compatible with Arduino, ESP32, Raspberry Pi, and other controllers
• Wide operating voltage support
• Easy-to-use pin header interface
• Compact module design

Technical Specifications

Model: CD74HC4067
Type: 16-Channel Analog Multiplexer/Demultiplexer
IC Used: CD74HC4067 CMOS IC
Number of Channels: 16 Channels
Operating Voltage: 2V to 6V DC
Recommended Voltage: 3.3V / 5V
Control Pins: S0, S1, S2, S3
Signal Pin: SIG (Common Input/Output)
Channels: C0 to C15
Low Power CMOS Technology
Fast Switching Operation

Working Principle

The CD74HC4067 multiplexer works by selecting one of the 16 input channels and connecting it to a common output line. The selection of channels is controlled by four digital address pins. Each combination of S0, S1, S2, and S3 selects a different channel. For example, when a specific binary value is applied to the select pins, the corresponding channel becomes active while all other channels remain disconnected.

In analog applications, the module can transfer variable voltage signals from sensors such as temperature sensors, gas sensors, and potentiometers. In digital applications, it can be used for expanding the number of switches, buttons, and digital devices connected to a microcontroller.

Applications

• Arduino sensor expansion projects
• Robotics and automation systems
• Multiple sensor monitoring systems
• Data acquisition equipment
• Industrial control systems
• IoT projects
• Analog signal switching
• Digital signal routing
• Testing and measurement devices
• Home automation projects

Advantages

The CD74HC4067 CMOS High Speed 16-Channel Analog Multiplexer Module reduces the number of microcontroller pins required for handling multiple devices. It provides an efficient and cost-effective solution for expanding analog and digital input capabilities. Its high-speed operation, simple control method, and compatibility with popular development boards make it a useful module for both beginners and advanced electronics designers.
