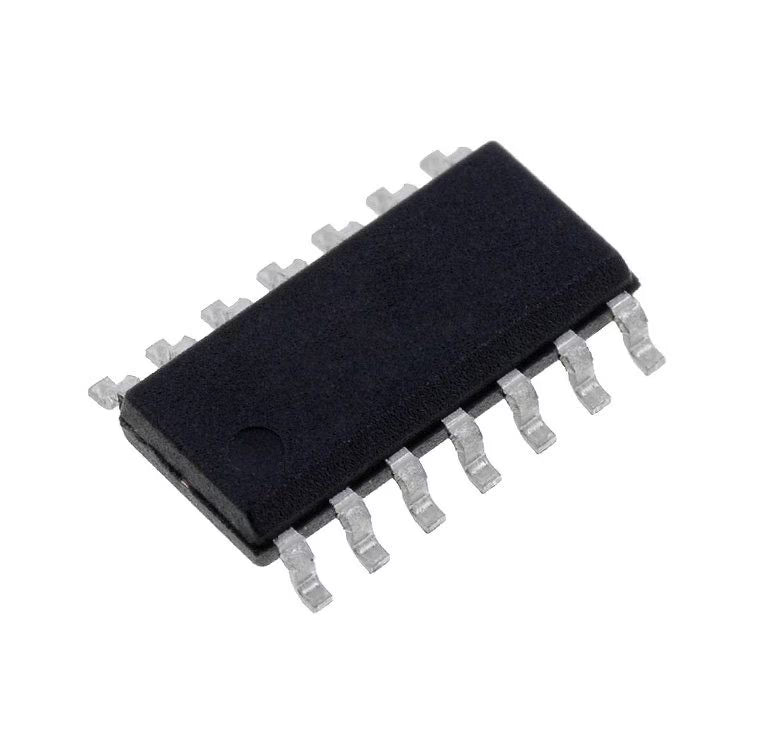

CD4002BM96 Dual 4-Input NOR Gate IC (SOIC-14 SMD Package)

The CD4002BM96 Dual 4-Input NOR Gate IC is a high-performance CMOS digital logic integrated circuit that contains two independent 4-input NOR gates in a compact SOIC-14 Surface Mount (SMD) package. Manufactured using advanced CMOS technology, this IC provides reliable digital logic performance with ultra-low power consumption, high noise immunity, and a wide operating voltage range, making it suitable for both battery-powered and industrial electronic applications.

Each NOR gate performs the logical NOR operation, producing a HIGH output only when all four inputs are LOW. If any one or more inputs are HIGH, the output becomes LOW. This functionality makes the IC ideal for implementing digital logic functions, control circuits, signal processing, and decision-making applications in electronic systems.

The CD4002BM96 operates over a wide supply voltage range of 3V to 18V DC, allowing seamless integration into various CMOS-based digital circuits. It features high input impedance, low static power consumption, and excellent noise immunity, ensuring stable and dependable operation even in electrically noisy environments. The compact SOIC-14 SMD package is well suited for modern PCB designs where space-saving and automated assembly are important.

This IC is widely used in embedded systems, industrial automation, digital control circuits, robotics, Arduino, ESP32, Raspberry Pi (with suitable logic-level interfacing), communication equipment, consumer electronics, and DIY electronics projects. Its combination of low power consumption, wide voltage compatibility, and reliable performance makes it an excellent choice for engineers, students, and electronics enthusiasts.

Features

• Two independent 4-input NOR gates

• Compact SOIC-14 Surface Mount (SMD) package

• High-performance CMOS technology

• Wide operating voltage range: 3V to 18V DC

• Ultra-low power consumption

• High noise immunity

• High input impedance

• Fast and reliable switching performance

• Suitable for high-density PCB designs

• Easy integration with CMOS logic circuits

• Reliable operation over a wide range of applications

Applications

• Digital logic circuits

• Embedded systems

• Industrial automation

• Robotics and control systems

• Arduino and ESP32 projects

• Raspberry Pi interface circuits

• Communication equipment

• Consumer electronics

• Signal processing circuits

• Educational electronics laboratories

• DIY electronics and PCB design projects
