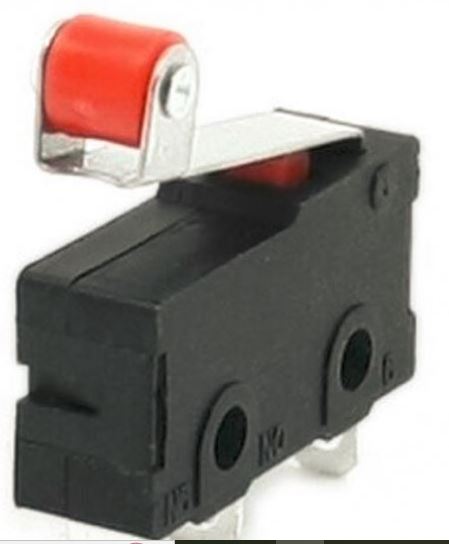

Bump Sensor – Limit Switch with Roller Lever

The Bump Sensor – Limit Switch with Roller Lever is a mechanical switching device used to detect physical contact, movement, position changes, or the presence of an object in electronic and automation systems. It is commonly used in robotics, CNC machines, 3D printers, industrial control systems, and DIY electronics projects where accurate position detection and collision sensing are required.

The sensor consists of a mechanical limit switch equipped with a roller lever actuator. The roller lever allows the switch to be activated smoothly when an object makes contact with it. When the lever is pressed or moved, the internal contacts inside the switch change their electrical state, allowing the circuit to either turn ON or OFF depending on the connection configuration.

The limit switch generally contains three terminals:

• COM (Common): The main connection terminal shared by the switch contacts.

• NO (Normally Open): The circuit remains open until the switch is activated.

• NC (Normally Closed): The circuit remains closed until the switch is activated.

When the roller lever is pushed, the switch mechanism changes the connection between these terminals. This allows it to send a signal to a controller or directly control an electrical circuit. The switch provides quick and reliable detection without requiring complex electronic sensors.

The roller lever design improves the sensitivity and flexibility of the switch by allowing objects to activate it from different angles. The rolling action reduces friction and mechanical wear, increasing the lifespan of the switch. It is especially useful in applications where repeated movement and frequent triggering occur.

The Bump Sensor – Limit Switch with Roller Lever is commonly used in:

• Robot obstacle detection systems

• Robotic arm position sensing

• CNC machine limit detection

• 3D printer end-stop switches

• Automatic door systems

• Industrial automation equipment

• Motor control systems

• Safety and protection circuits

• Electronic prototypes and DIY projects

In robotics projects, the bump sensor is often used to detect collisions or determine the movement limits of a robot. When the robot touches an object or reaches a predefined position, the switch sends a signal to the control system, allowing the robot to stop, reverse direction, or perform a programmed action.

The switch is designed with a durable mechanical structure that provides reliable operation over many switching cycles. Its compact size, simple wiring, and low-cost design make it suitable for both beginners and professional electronics applications. It can be easily connected with microcontrollers such as Arduino, Raspberry Pi, and other control boards.

The Bump Sensor – Limit Switch with Roller Lever is an essential component for automation and control applications. With its accurate detection capability, robust construction, and easy integration into electronic circuits, it provides a dependable solution for position sensing, safety control, and object detection systems.
