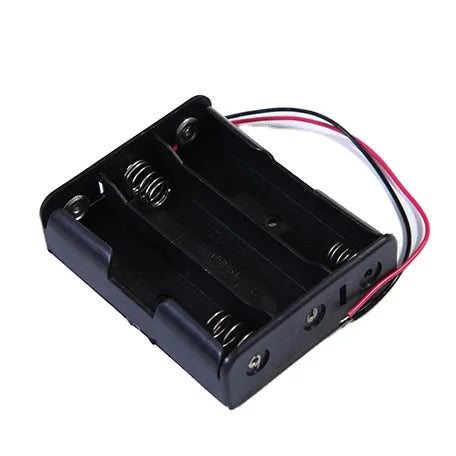

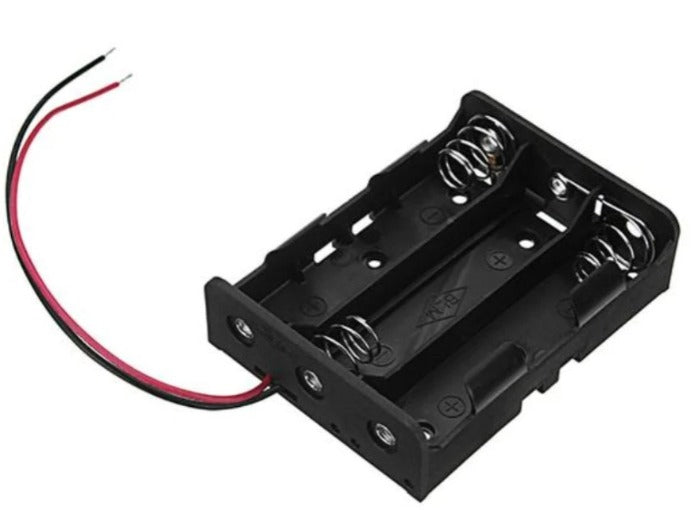

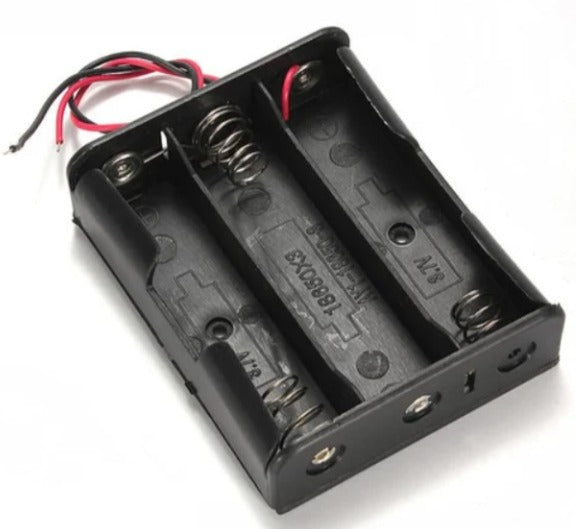

18650 3-Cell Battery Holder Without Cover

The 18650 3-Cell Battery Holder Without Cover is a battery mounting accessory designed to securely hold three 18650 lithium-ion rechargeable batteries and provide a reliable electrical connection for powering electronic circuits and portable devices. The holder is supplied without a protective cover, allowing quick battery installation and removal. It is widely used in robotics, Arduino projects, IoT devices, embedded systems, battery packs, solar power systems, portable electronics, educational projects, and DIY electronics.

The battery holder is manufactured from high-quality ABS plastic, providing excellent mechanical strength, electrical insulation, heat resistance, and durability. It features nickel-plated steel spring contacts and metal battery terminals that ensure secure battery placement and low-resistance electrical connections. Most models include red (positive) and black (negative) output wires for easy connection to electronic circuits.

The holder is designed to accommodate three standard 18650 lithium-ion rechargeable batteries, each having a nominal voltage of 3.7V. In most versions, the batteries are connected in series, producing:

• Nominal Output Voltage: 11.1V DC (3 × 3.7V)

• Fully Charged Voltage: 12.6V DC (3 × 4.2V)

• Current Capacity: Equal to the capacity of a single battery (for example, three 3000mAh cells provide 11.1V at 3000mAh)

Some holders may be available in parallel configuration, where the output voltage remains 3.7V and the battery capacity increases. Users should verify the wiring configuration before use.

The working principle of the 18650 3-Cell Battery Holder is straightforward. After inserting the batteries according to the polarity markings, the spring-loaded terminals maintain firm electrical contact with the battery terminals. The holder delivers power through the output wires to the connected electronic device. The open design without a cover allows quick battery replacement and easy maintenance.

Typical specifications include:

• Product Type: Battery Holder

• Battery Compatibility: 3 × 18650 Lithium-Ion Batteries

• Battery Size: 18 mm × 65 mm (18650)

• Configuration: Series (commonly)

• Nominal Output Voltage: 11.1V DC

• Fully Charged Voltage: 12.6V DC

• Housing Material: ABS Plastic

• Terminal Material: Nickel-Plated Steel

• Output Leads: Red (+) and Black (−) Wires

• Cover: No (Open Type)

The battery holder is compatible with standard 18650 rechargeable lithium-ion batteries and can be used to power various electronic devices, including:

• Arduino Projects

• ESP32 Development Boards

• ESP8266 Modules

• Raspberry Pi (with appropriate voltage regulation)

• STM32 Development Boards

• PIC Microcontrollers

• AVR Microcontrollers

• Robotics Platforms

• DC Motor Driver Circuits

• LED Lighting Systems

• Portable Electronic Devices

• Battery-Powered Embedded Systems

The applications of the 18650 3-Cell Battery Holder Without Cover include portable battery packs, robotics, IoT devices, wireless sensor networks, embedded systems, solar-powered projects, battery-powered lighting, electronic prototypes, laboratory experiments, educational electronics, engineering projects, automation systems, portable testing equipment, and DIY electronics.

The advantages of the battery holder include secure battery mounting, durable ABS plastic construction, reliable spring-loaded contacts, easy battery replacement, lightweight design, compact size, reusable construction, stable electrical connection, simple wiring, compatibility with standard 18650 batteries, and long service life.

Safety Precautions:

• Insert the batteries with the correct polarity (+ and −).

• Use batteries of the same type, capacity, and charge level.

• Do not short-circuit the output terminals.

• Do not expose the holder to excessive heat or moisture.

• Remove batteries when the holder is not in use for extended periods.

• Inspect the holder regularly for damaged contacts or loose wiring.

In conclusion, the 18650 3-Cell Battery Holder Without Cover is a durable and reliable battery mounting solution for portable power applications. Its sturdy ABS construction, secure electrical contacts, open design for easy battery replacement, and compatibility with standard 18650 lithium-ion cells make it an excellent choice for robotics, embedded systems, IoT devices, educational electronics, battery-powered equipment, and DIY engineering projects.
