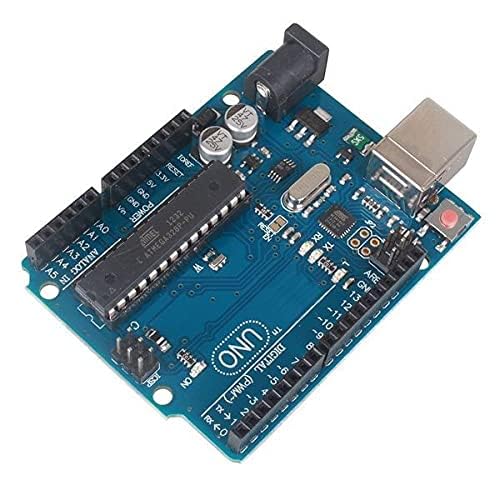

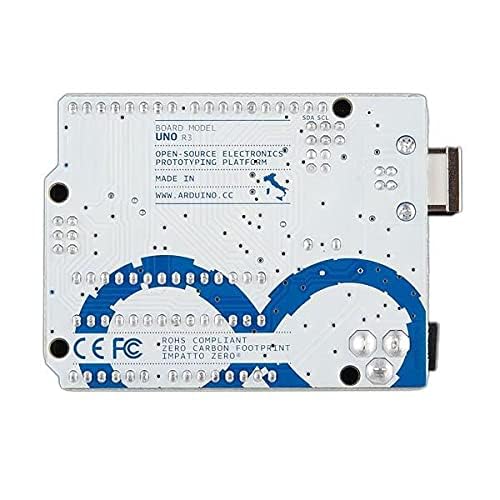

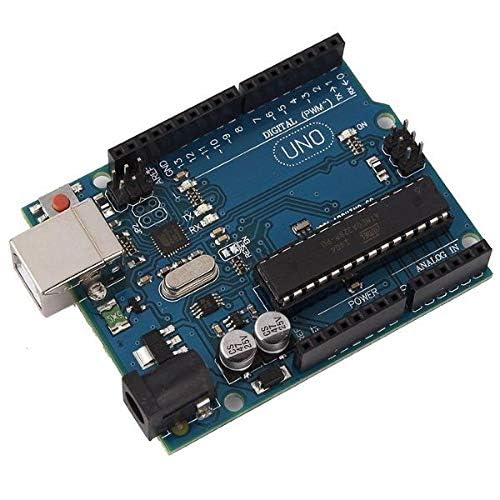

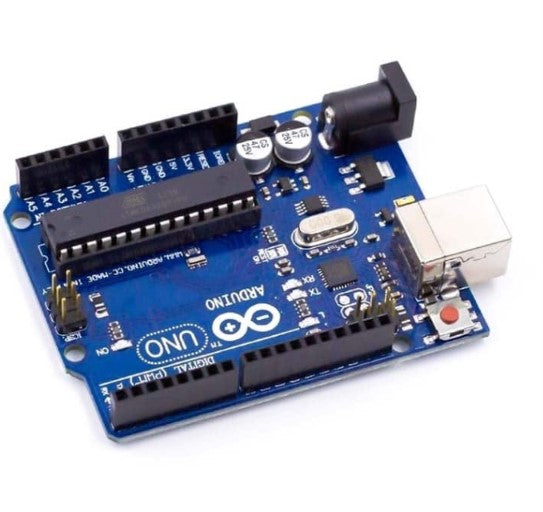

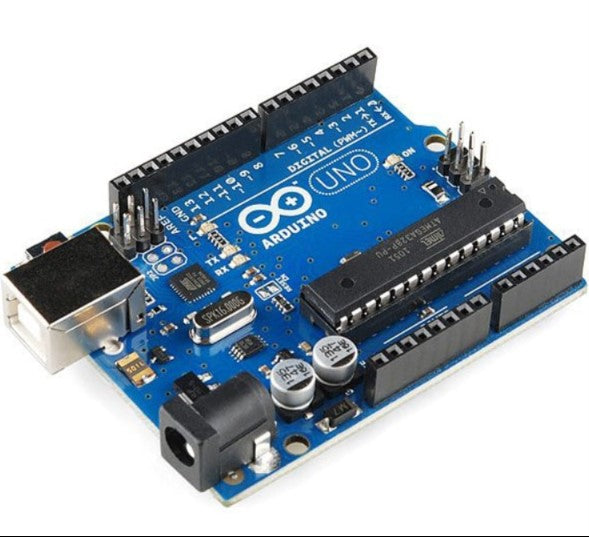

Arduino Uno R3 Board

The Arduino Uno R3 Board is a widely used open-source microcontroller development platform based on the ATmega328P microcontroller. It is designed for learning electronics, rapid prototyping, and developing embedded systems. Because of its simplicity, stability, and huge community support, it is one of the most popular boards for beginners as well as professional developers working on hardware-based projects.

The board allows users to write programs using the Arduino IDE and upload them directly through a USB connection. It acts as the central controller in electronic projects, capable of reading inputs from sensors, processing data based on programmed instructions, and controlling output devices such as LEDs, motors, relays, displays, and communication modules.

At the core of the Arduino Uno R3 is the ATmega328P microcontroller, which handles all processing tasks. It runs at a clock speed of 16 MHz and provides reliable performance for a wide range of embedded applications, including robotics, automation, IoT systems, and educational experiments.

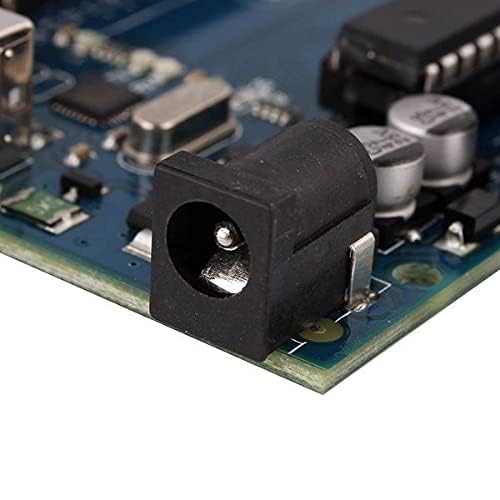

The board operates at 5V logic level and can be powered through USB or an external power supply. The recommended input voltage range is 7–12V, which allows flexible powering options using adapters, batteries, or regulated DC supplies.

For interfacing with external components, the Arduino Uno R3 provides 14 digital input/output pins, out of which 6 pins support PWM (Pulse Width Modulation). PWM enables control of motor speed, LED brightness, and similar analog-like outputs using digital signals.

In addition to digital pins, the board includes 6 analog input pins that allow it to read varying voltage levels from sensors such as temperature sensors, light sensors, potentiometers, gas sensors, and other analog devices.

The memory structure of the board includes 32 KB of flash memory for storing program code, 2 KB of SRAM for runtime variables, and 1 KB of EEPROM for storing non-volatile data that remains even after power is removed.

The Arduino Uno R3 supports multiple communication protocols, making it highly versatile for system integration. These include:

• UART (Serial communication)

• SPI (Serial Peripheral Interface)

• I2C (Inter-Integrated Circuit)

These protocols allow the board to communicate with sensors, displays, memory modules, and other microcontrollers efficiently.

One of the major advantages of the Arduino Uno R3 is its compatibility with a wide range of shields and modules. Users can easily expand functionality by attaching sensor shields, motor driver shields, Wi-Fi modules, Bluetooth modules, and more without complex wiring.

The board is fully compatible with the Arduino IDE, which provides an easy-to-use programming environment based on simplified C/C++ language. It includes built-in libraries and example codes, making it easy for beginners to start building projects quickly.

The Arduino Uno R3 is widely used in many applications, including:

• Robotics and automation systems

• IoT and smart devices

• Sensor-based monitoring systems

• Home automation projects

• Educational electronics training

• DIY hobby projects

• Industrial prototyping

• Embedded system development

Its simple structure, reliable performance, and strong ecosystem support make it an ideal choice for both beginners and advanced users.

Overall, the Arduino Uno R3 Board is a powerful, flexible, and user-friendly microcontroller platform that enables easy development of electronics and embedded systems. Its combination of digital and analog I/O, communication interfaces, expandable architecture, and wide compatibility makes it one of the most essential boards in modern electronics prototyping and learning environments.
