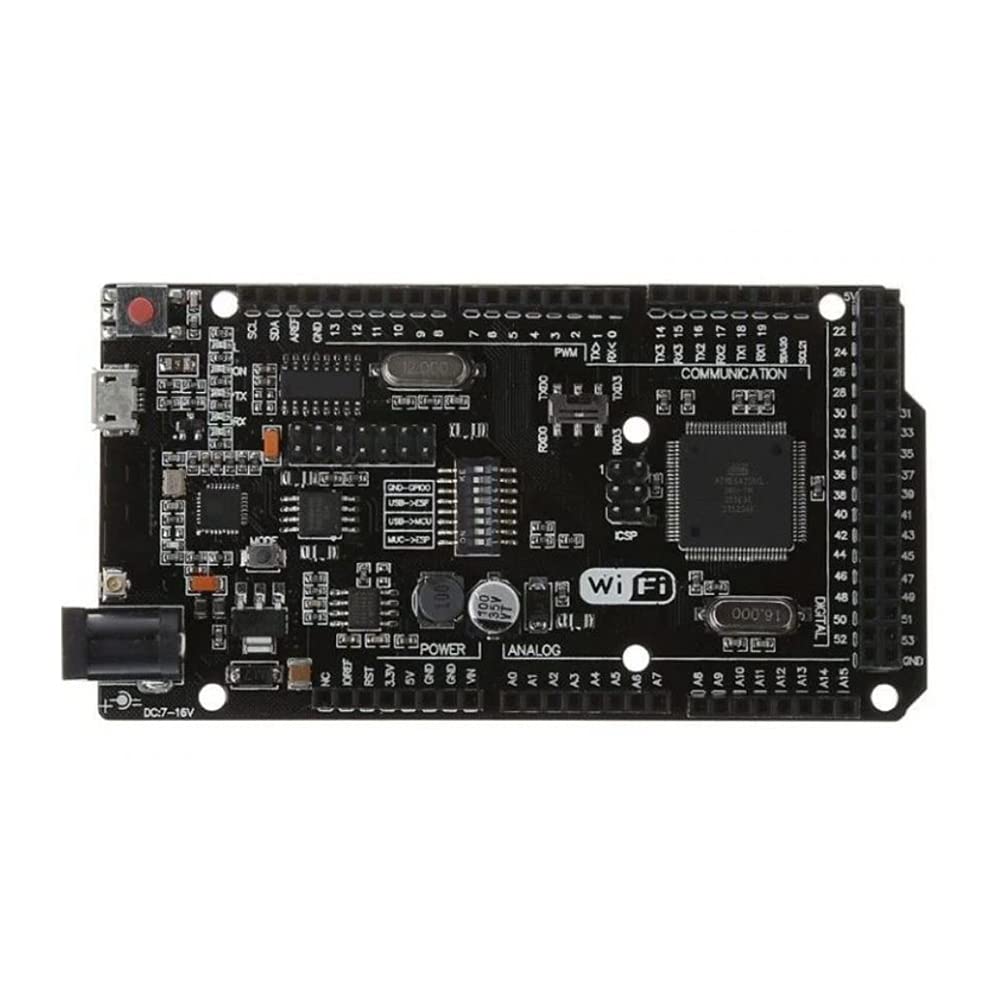

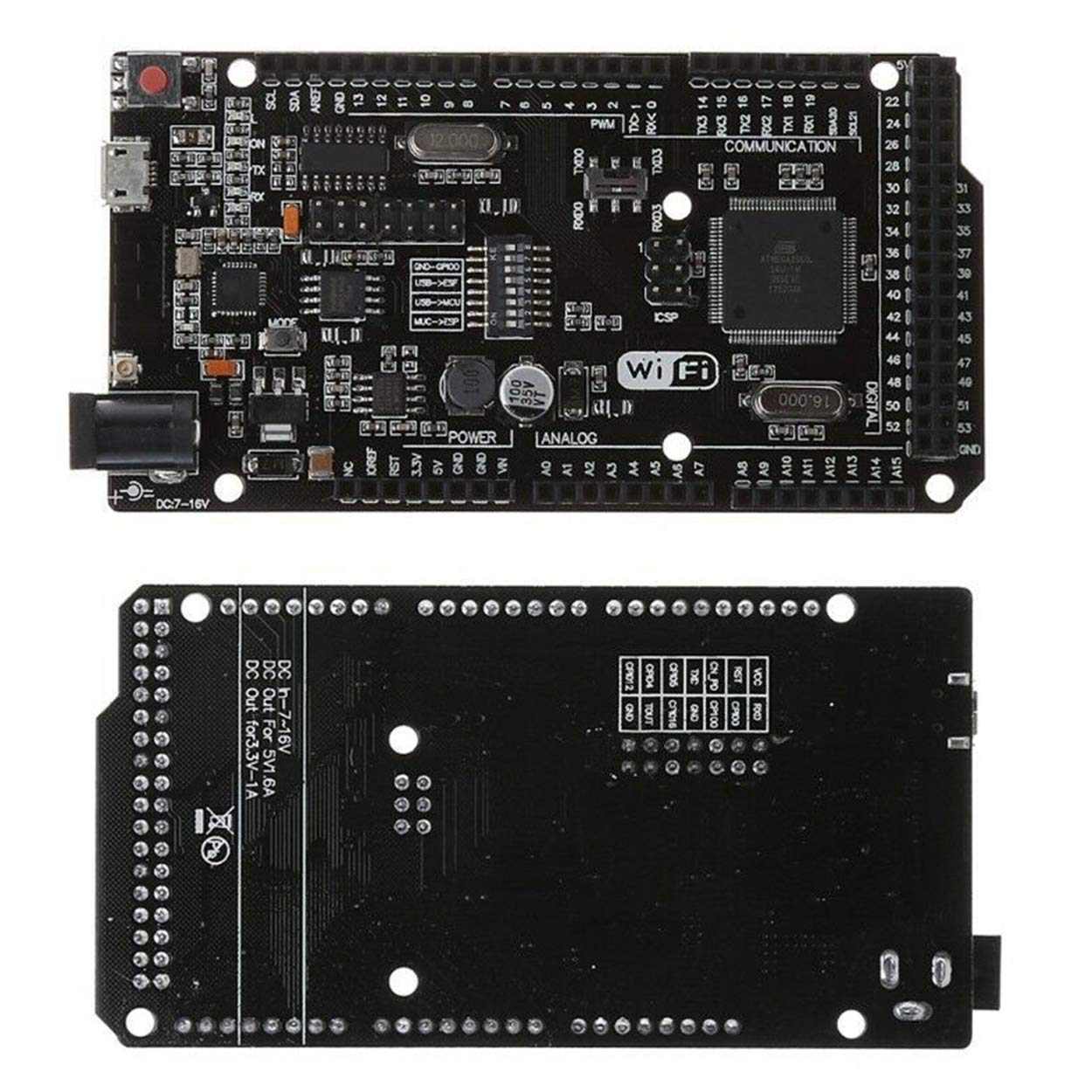

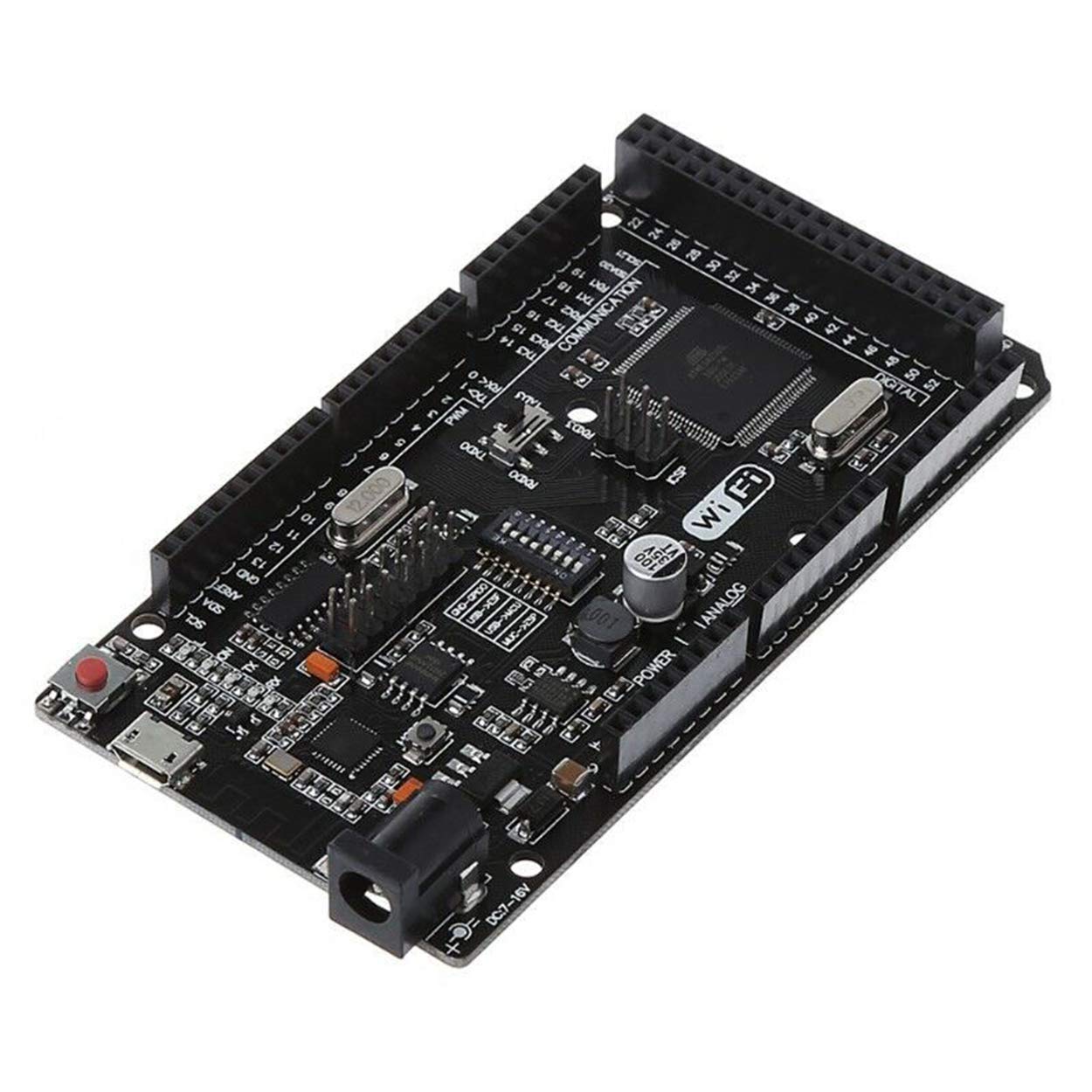

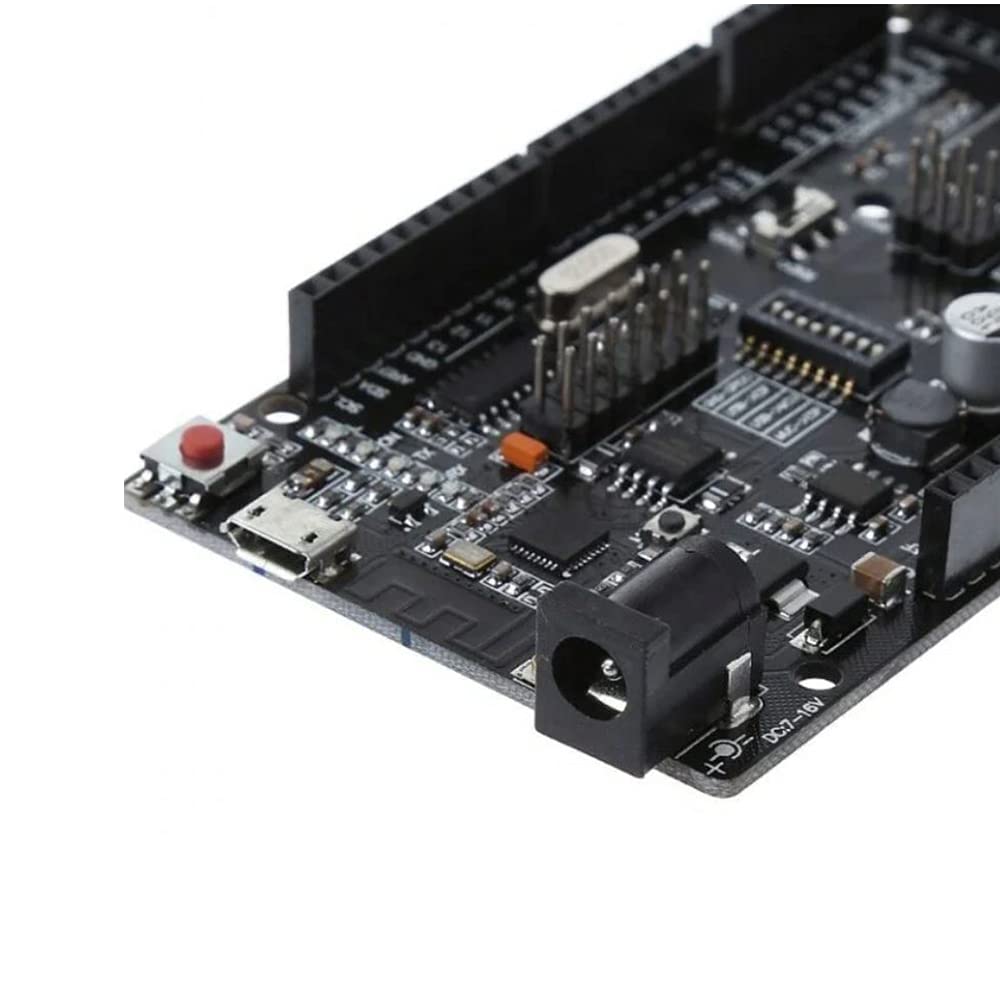

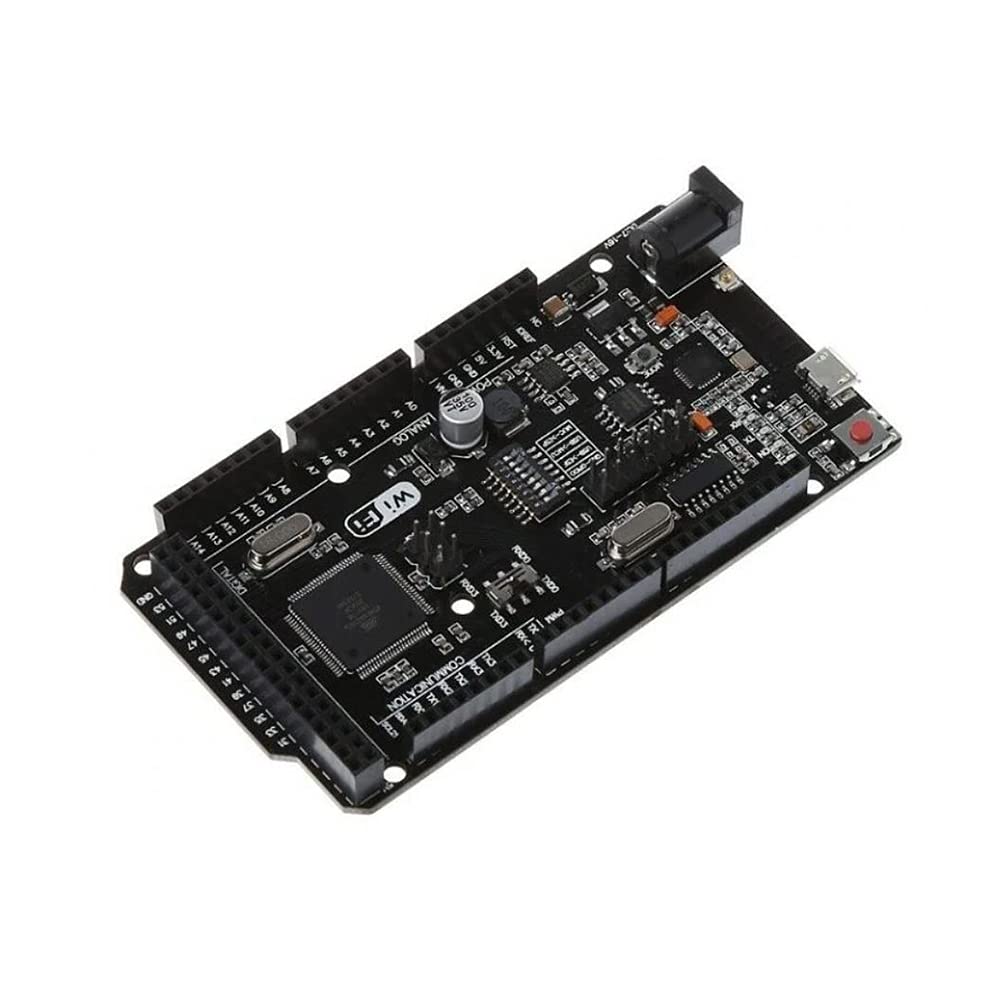

Arduino Mega 2560 + WiFi R3 ATmega2560 + NodeMCU ESP8266 CH340G Compatible Board

The Arduino Mega 2560 + WiFi R3 ATmega2560 + NodeMCU ESP8266 CH340G Compatible Board is a powerful all-in-one development platform that combines the capabilities of the ATmega2560 microcontroller and the ESP8266 WiFi module on a single board, making it an ideal solution for advanced embedded systems, Internet of Things (IoT), robotics, industrial automation, and wireless communication projects. The board is built around the ATmega2560 microcontroller running at 16 MHz with 256 KB of Flash memory, 8 KB of SRAM, and 4 KB of EEPROM, providing ample resources for complex applications requiring numerous input/output connections and extensive program storage. Integrated alongside the ATmega2560 is the ESP8266 NodeMCU WiFi module, which enables high-speed 2.4 GHz IEEE 802.11 b/g/n wireless connectivity for cloud communication, remote monitoring, web servers, MQTT applications, and IoT networking. Both microcontrollers can operate independently or communicate with each other through serial interfaces, allowing users to divide processing tasks between real-time control and wireless communication.

The board features 54 digital input/output pins, including 15 PWM outputs, 16 analog input channels, four hardware UART serial ports, SPI, I2C, USB communication, external interrupt support, timers, and multiple power options for interfacing with a wide variety of sensors, actuators, displays, motors, and communication modules. The onboard CH340G USB-to-Serial converter provides reliable programming and serial communication with a computer, while DIP switches allow users to select programming modes and communication paths between the ATmega2560, ESP8266, and USB interface. This flexible hardware architecture enables programming of both microcontrollers directly from the Arduino IDE using the appropriate board packages, providing a familiar and user-friendly software development environment. The board can be powered through the USB port or an external DC power supply, with onboard voltage regulation ensuring stable operation across a wide range of applications.

Designed for high-performance and feature-rich projects, the Arduino Mega 2560 + WiFi R3 Compatible Board is widely used in smart home automation, IoT gateways, industrial monitoring, robotics, environmental monitoring, weather stations, data logging systems, wireless sensor networks, smart agriculture, machine control, security systems, energy management, remote control applications, educational laboratories, engineering projects, research and development, and rapid prototyping. It supports seamless integration with WiFi-based cloud platforms, mobile applications, web dashboards, MQTT brokers, Blynk, ThingSpeak, Firebase, and other IoT services while simultaneously controlling multiple sensors and actuators through the ATmega2560. Compatible with Arduino Mega shields and a vast ecosystem of modules and libraries, this development board offers exceptional flexibility, high processing capability, abundant I/O resources, and built-in wireless connectivity, making it an excellent choice for students, hobbyists, engineers, makers, and professional developers building sophisticated connected electronic systems.
