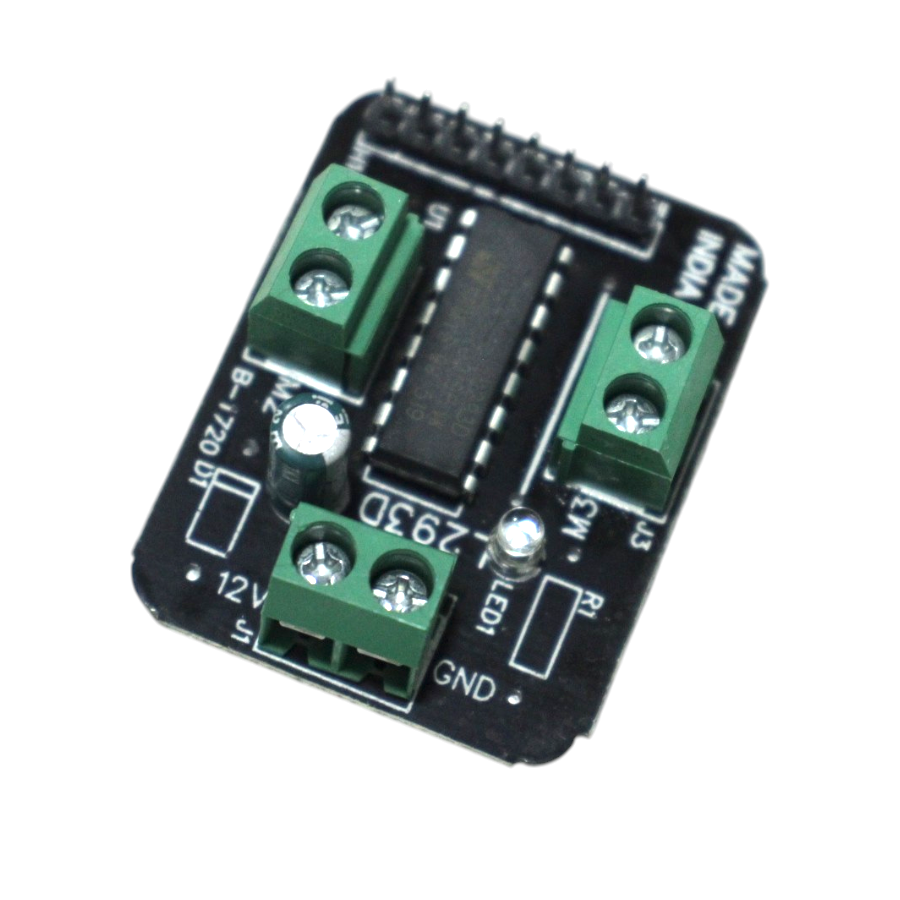

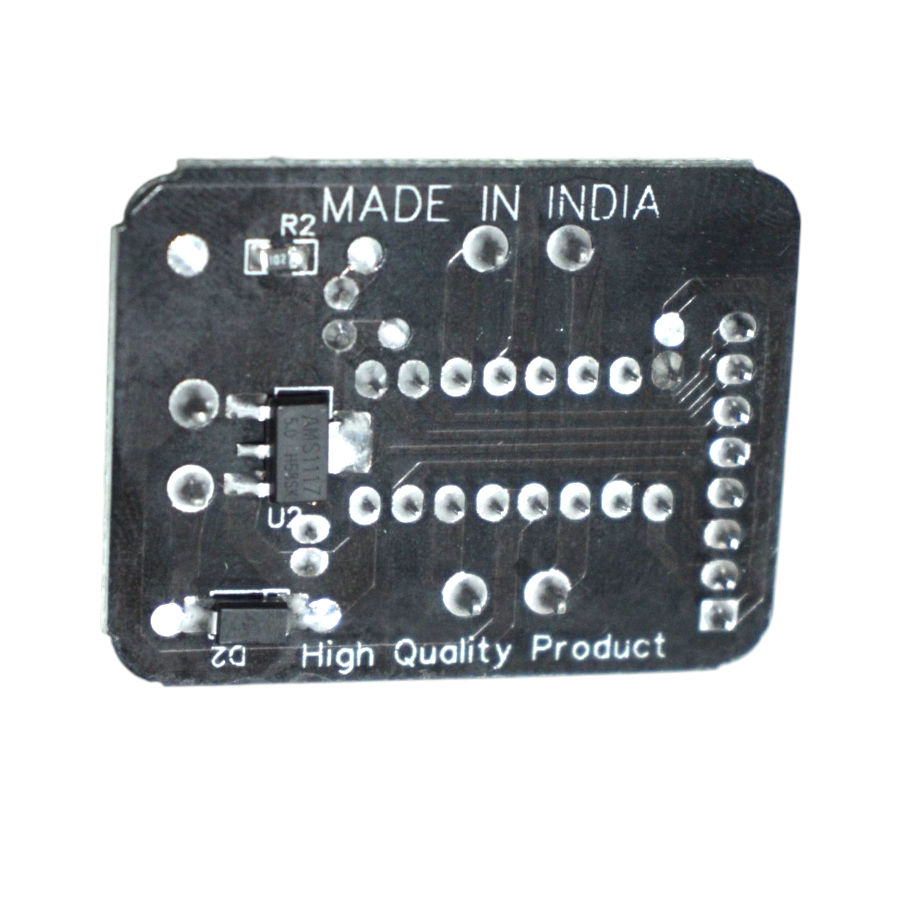

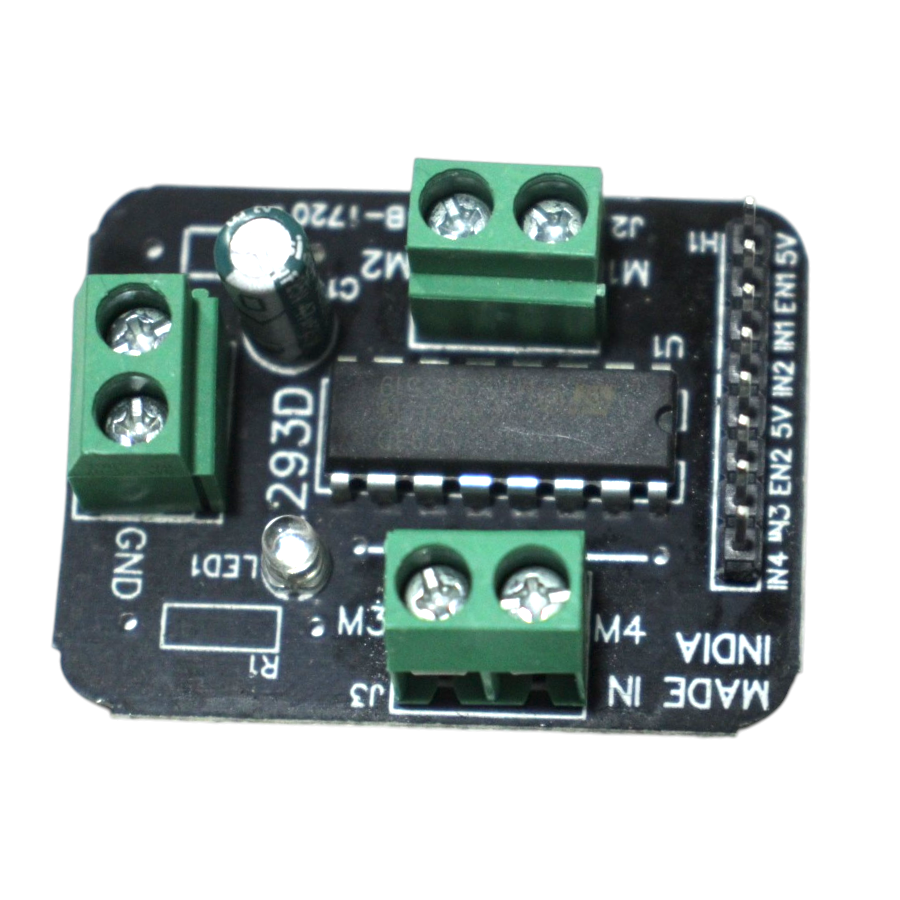

Airfly L293D Motor Driver

Airfly L293D Motor Driver Module is a medium power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L293 motor driver IC. It can drive 4 DC motors on and off, or drive 2 DC motors with directional and speed control. The driver greatly simplifies and increases the ease with which you may control motors, relays, etc from micro controllers.

It can drive motors upto 36V with a total DC current of up to 600mA.You can connect the two channels in parallel to double the maximum current or in series to double the maximum input voltage.

Features

• Maximum motor supply voltage: 36V
• Maximum motor supply current: 600 mA per motor
• Onboard Heatsink for better performance
• The driver two holes of 3mm diameter for easy mounting
• Screw terminal connectors for easy motor connection.
• High noise immunity inputs
