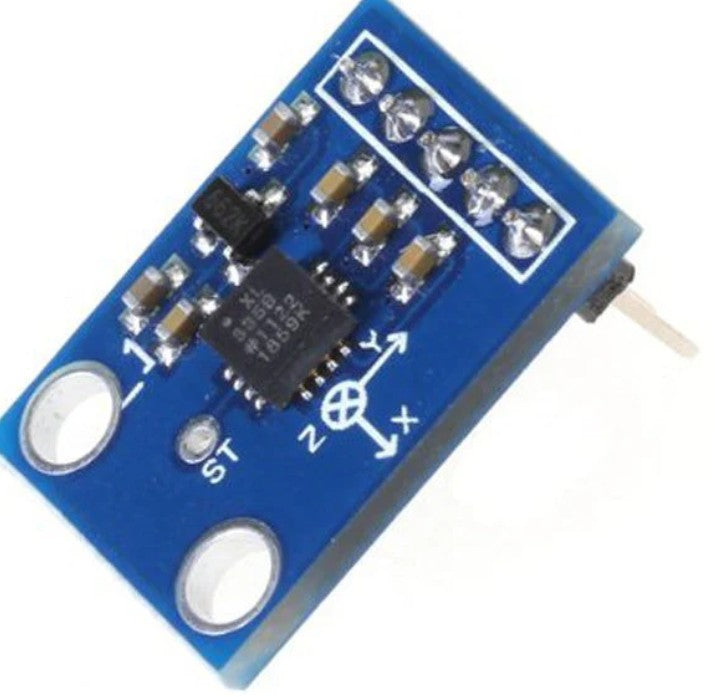

The ADXL335 Triple-Axis Accelerometer Module is a compact and highly sensitive motion sensing module designed to measure acceleration, tilt, orientation, vibration, and movement along three perpendicular axes: X, Y, and Z. Based on the ADXL335 MEMS accelerometer integrated circuit, this module provides accurate analog voltage outputs corresponding to acceleration forces acting on each axis, making it ideal for robotics, embedded systems, motion tracking, wearable electronics, industrial monitoring, and IoT applications.

An accelerometer is a sensor capable of detecting changes in motion, vibration, tilt, and gravitational force. The ADXL335 specifically measures acceleration in three dimensions simultaneously, allowing electronic systems to understand movement direction, orientation, and dynamic motion behavior. Because of its compact size, low power consumption, and reliable performance, the sensor is widely used in both educational and professional electronics projects.

The working principle of the ADXL335 is based on MEMS (Micro-Electro-Mechanical Systems) technology. Inside the sensor, microscopic mechanical structures are suspended using tiny springs and capacitive plates. When acceleration or tilt occurs, these structures shift slightly due to inertia, causing a change in capacitance. The sensor circuitry converts these capacitance variations into analog voltage signals that represent acceleration along each axis.

The module continuously outputs separate analog voltages for the X, Y, and Z axes. These analog signals can be read directly by analog input pins of microcontrollers or through analog-to-digital converters (ADCs). By analyzing the voltage values, a controller can calculate motion intensity, orientation angle, tilt direction, vibration level, or acceleration forces.

One of the major advantages of the ADXL335 module is its smooth analog output behavior. Unlike digital motion sensors that provide discrete values through communication protocols, the analog outputs allow continuous and highly responsive motion sensing, making the module suitable for real-time control systems and precise movement analysis.

The sensor supports a measurement range of approximately ±3g, where “g” represents gravitational acceleration. This range makes it suitable for detecting moderate movement, tilt, shock, and vibration in portable electronics and embedded systems.

The ADXL335 operates at low voltage, typically between 1.8V and 3.6V DC, which helps reduce power consumption and makes it suitable for battery-powered systems, portable electronics, and wearable devices. Many breakout board versions also include onboard voltage regulation and conditioning circuits for easier integration with 5V development platforms.

The module usually provides the following connections:

VCC (Power Supply)

GND (Ground)

X-axis Analog Output

Y-axis Analog Output

Z-axis Analog Output

Some versions may also include additional pins for self-test or signal conditioning functions.

The ADXL335 module is fully compatible with popular embedded development platforms such as:

Arduino Uno R3

Arduino Nano

ESP32

ESP8266 NodeMCU

Raspberry Pi (via ADC)

STM32

PIC microcontrollers

AVR development boards

Because the sensor outputs analog signals, it can easily interface with microcontrollers that contain built-in analog input pins, simplifying system design and integration.

The module is widely used in robotics applications for balancing robots, motion-controlled systems, autonomous vehicles, and navigation systems. By monitoring acceleration and tilt, robotic systems can maintain balance, detect movement, and improve navigation accuracy.

In drone and UAV systems, the ADXL335 helps measure orientation, tilt angle, and vibration, contributing to flight stabilization and motion control systems.

The sensor is also extensively used in vibration monitoring applications where machinery, motors, or structures must be monitored for unusual movement or oscillation. The analog outputs allow precise vibration intensity analysis in industrial systems.

In wearable electronics and gesture-controlled devices, the module can detect body movement, hand gestures, tilt orientation, and physical activity. This makes it useful for fitness trackers, motion-controlled interfaces, and interactive electronics.

The ADXL335 is commonly used in:

Motion sensing systems

Tilt detection systems

Robotics projects

Drone stabilization systems

Gesture control devices

Gaming controllers

Wearable electronics

Industrial vibration monitoring

Vehicle motion analysis

Educational embedded systems

Smart automation systems

Research and experimentation

In automotive systems, the sensor can be used for motion analysis, crash detection, tilt sensing, and vibration monitoring in embedded vehicle electronics.

Educational institutions frequently use the ADXL335 module for teaching MEMS technology, motion sensing principles, analog signal processing, embedded system integration, and robotics programming. Its straightforward analog output method makes it highly beginner-friendly while still supporting advanced motion analysis applications.

One important advantage of the ADXL335 is its low power consumption, making it ideal for continuously operating portable and battery-powered systems. Its compact and lightweight design also enables easy integration into miniature devices and space-constrained electronics.

The sensor’s stable and reliable performance allows it to operate effectively in dynamic environments where accurate motion measurement is important. Its low noise characteristics improve sensitivity and measurement quality during operation.

Because the module outputs analog signals rather than processed digital data, developers have flexibility in implementing custom filtering, calibration, and motion analysis algorithms according to application requirements.

Overall, the ADXL335 Triple-Axis Accelerometer Module is a reliable, precise, and efficient motion sensing solution for modern embedded electronics and automation systems. Its MEMS-based acceleration detection, triple-axis analog outputs, compact design, low power consumption, and compatibility with popular microcontroller platforms make it an excellent choice for robotics, wearable devices, vibration monitoring, IoT systems, automation projects, and educational electronics development. Whether used for tilt sensing, motion tracking, gesture recognition, or vibration analysis, the ADXL335 module delivers accurate and dependable acceleration measurement performance in a compact and easy-to-use form factor.
