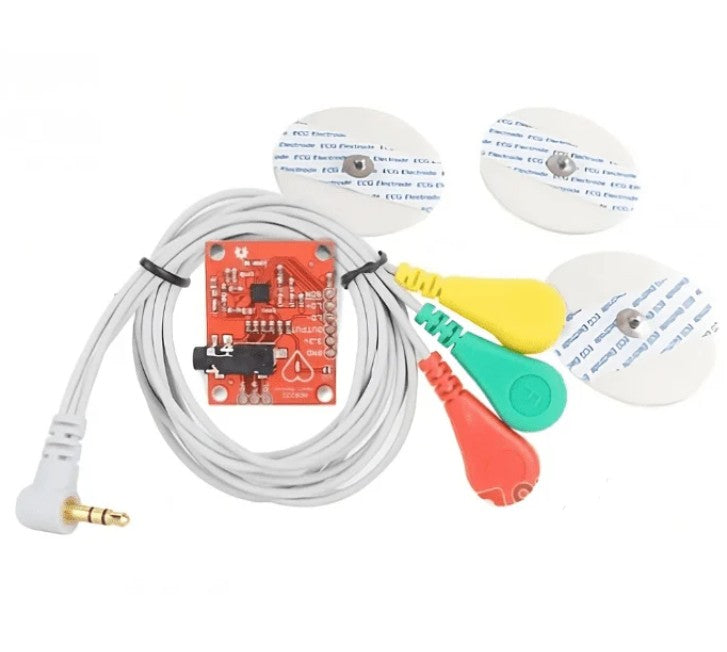

AD8232 ECG Module Heart Rate Monitor Kit

The AD8232 ECG Module Heart Rate Monitor Kit is a compact, low-power biomedical sensor module designed to measure and monitor the electrical activity of the human heart. Based on the AD8232 integrated signal conditioning chip, the module amplifies, filters, and processes weak bioelectric signals generated by the heart, producing a clean analog output waveform that can be read by microcontrollers and development boards.

The module is specifically designed for portable ECG (Electrocardiogram) and heart rate monitoring applications. It works with disposable ECG electrodes that are attached to the human body to detect cardiac electrical activity. The processed analog signal can then be displayed, recorded, or analyzed using platforms such as Arduino, ESP32, Raspberry Pi, STM32, PIC, AVR, and other embedded systems.

Featuring low power consumption, high signal accuracy, and excellent noise filtering, the AD8232 module is ideal for educational purposes, biomedical research, wearable electronics, health monitoring prototypes, and IoT-based healthcare projects. It provides dedicated lead-off detection pins that indicate whether the electrodes are properly connected, helping improve measurement reliability.

The compact design and simple interface make the module easy to integrate into a wide variety of electronics projects. It is widely used by students, researchers, engineers, and makers for learning ECG signal acquisition and developing heart monitoring systems. This module is intended for research, educational, and development purposes only and is not certified as a medical diagnostic device.

Key Features

Based on the AD8232 integrated ECG signal conditioning IC.

Measures the electrical activity of the human heart.

Amplifies and filters low-amplitude ECG signals.

Provides clean analog output for easy processing.

Low power consumption for portable applications.

High signal accuracy with excellent noise suppression.

Built-in lead-off detection for electrode status monitoring.

Simple interface for quick microcontroller integration.

Compact PCB suitable for embedded applications.

Compatible with Arduino, ESP32, Raspberry Pi, STM32, PIC, AVR, NodeMCU, and other development boards.

Ideal for educational, research, and biomedical prototype development.

Easy to interface using standard analog input pins.

Specifications

IC: AD8232 Heart Rate Monitor Front-End

Operating Voltage: 3.3V to 5V DC

Output Type: Analog ECG Signal

Interface: Analog Output with Lead-Off Detection Pins

Signal Conditioning: Integrated Amplifier and Filter

Power Consumption: Low Power

Operating Temperature: Suitable for standard indoor environments

Module Type: ECG Signal Acquisition Module

Applications

ECG waveform monitoring.

Heart rate monitoring projects.

Biomedical signal acquisition.

Wearable health monitoring devices.

Medical electronics education.

Biomedical engineering experiments.

Research and laboratory projects.

IoT healthcare systems.

Fitness monitoring prototypes.

Portable ECG development.

University and engineering laboratory projects.

Embedded biomedical applications.

DIY electronics and educational projects.
