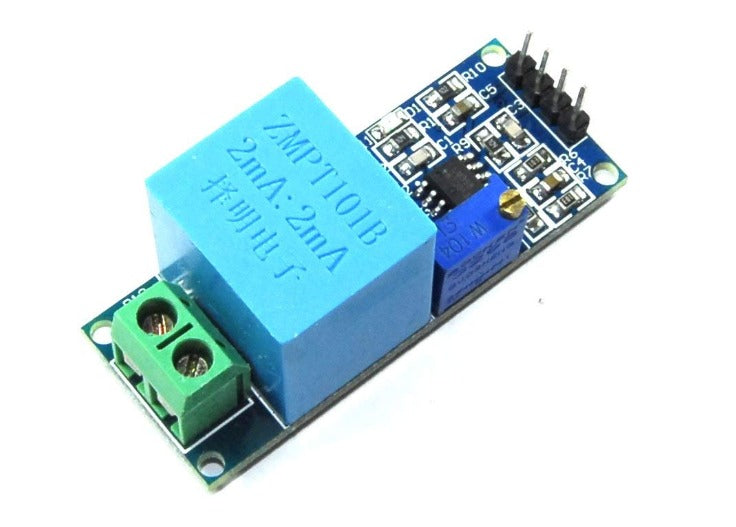

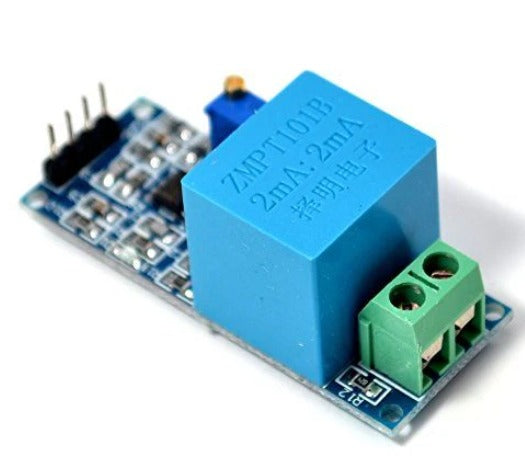

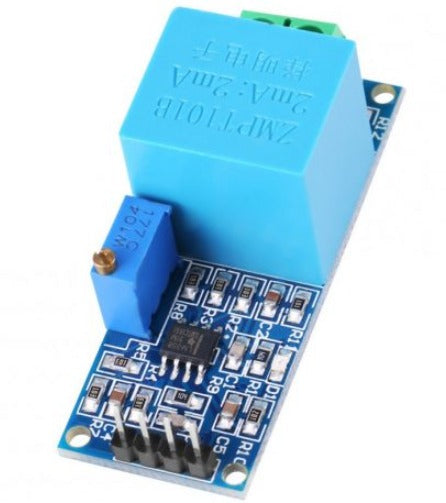

AC Voltage Sensor ZMPT101B

The AC Voltage Sensor ZMPT101B is a precision electronic sensing module designed for safe and accurate measurement of alternating current (AC) voltage in electrical systems and power monitoring applications. Built around the highly sensitive ZMPT101B precision voltage transformer, this module enables microcontrollers and embedded systems to monitor mains voltage levels while maintaining electrical isolation from high-voltage AC circuits. Its compact design, reliable performance, and easy interfacing make it a widely used component in energy monitoring systems, smart automation projects, IoT applications, industrial control systems, and educational electronics development.

The primary purpose of the ZMPT101B module is to convert high AC voltages into a low-level analog signal that can be safely measured by microcontrollers such as Arduino Uno R3, Arduino Nano Board V3, Arduino UNO R3 (CH340G), ESP32 development boards, NodeMCU modules, and Raspberry Pi 4 Model B systems. By providing electrical isolation between the high-voltage input and low-voltage electronics, the module improves user safety and protects sensitive microcontroller circuits from dangerous electrical conditions.

At the core of the module is the ZMPT101B precision voltage transformer, a miniature transformer specifically designed for accurate AC voltage sensing. The transformer works by electromagnetic induction, where the AC input voltage applied to the primary side generates a proportional lower voltage on the secondary side. This reduced and isolated signal is then conditioned by onboard analog circuitry to produce an output voltage suitable for analog input pins on microcontrollers and embedded devices.

One of the major advantages of the ZMPT101B sensor module is its high electrical isolation capability. Since the sensing mechanism is transformer-based, there is no direct electrical connection between the high-voltage AC mains and the low-voltage microcontroller circuitry. This isolation significantly improves operational safety and reduces the risk of electrical damage during voltage monitoring applications.

The module provides an analog output signal proportional to the measured AC voltage. Microcontrollers can read this analog signal using analog-to-digital converters (ADC) and calculate voltage values through software processing. By analyzing the amplitude and waveform of the output signal, developers can implement real-time AC voltage measurement, power analysis, energy monitoring, and smart electrical control systems.

The module typically operates using a 5V DC power supply for its onboard electronics and signal conditioning circuitry. Its low-voltage operation ensures compatibility with most embedded development boards and microcontroller platforms commonly used in electronics and IoT applications.

An onboard adjustable potentiometer is usually included on the module to allow calibration and sensitivity adjustment. This feature enables users to fine-tune the output signal according to the specific AC voltage range and measurement requirements of their application. Proper calibration improves measurement accuracy and enhances reliability in power monitoring systems.

The compact and lightweight design of the ZMPT101B module makes it easy to integrate into breadboards, prototype circuits, industrial control panels, and custom embedded systems. Its breadboard-friendly layout simplifies experimental development and rapid prototyping for students, hobbyists, and professional developers.

The module is widely used in AC voltage monitoring systems where real-time measurement of mains voltage is required. It can continuously monitor household electrical supply voltage, industrial AC lines, generator outputs, inverter systems, and renewable energy systems such as solar power installations.

In energy measurement applications, the ZMPT101B sensor is frequently combined with current sensors to calculate electrical power consumption, energy usage, power factor, and load analysis. Such systems are commonly used in smart meters, energy auditing systems, and intelligent electrical monitoring solutions.

The module also plays an important role in home automation and IoT projects. Smart home systems can use the sensor to monitor electrical conditions, detect abnormal voltage fluctuations, and automate protective actions such as turning off appliances or triggering warning notifications during unsafe voltage conditions.

Industrial automation systems utilize the ZMPT101B module for monitoring AC supply stability, detecting overvoltage or undervoltage conditions, and protecting electrical equipment from power irregularities. Its isolated sensing capability improves safety and reliability in industrial environments.

The sensor is highly useful in educational and experimental electronics projects because it allows students and developers to learn about AC signal measurement, transformer-based sensing, analog signal processing, and power monitoring concepts safely and practically. The simple interface and availability of open-source libraries make it suitable for beginner-level experimentation as well as advanced embedded system development.

The working principle of the ZMPT101B sensor module is based on electromagnetic induction and analog signal conditioning. When AC voltage is applied to the transformer input, a proportional low-voltage AC signal is generated at the secondary side. This signal passes through amplification and filtering circuits before appearing as an analog output that can be sampled by a microcontroller’s ADC. Software algorithms then calculate RMS voltage and other electrical parameters from the sampled waveform data.

The module supports measurement of sinusoidal AC waveforms commonly found in household mains and industrial power systems. It is suitable for applications involving 50 Hz and 60 Hz AC electrical systems used worldwide.

Typical applications of the AC Voltage Sensor ZMPT101B include:

• AC mains voltage monitoring

• Smart energy meters

• Power quality analysis systems

• Home automation projects

• Industrial voltage monitoring

• IoT-based power management systems

• Smart electrical protection systems

• Renewable energy monitoring

• Inverter and UPS monitoring

• Educational electronics experiments

• Embedded power measurement systems

• Load monitoring and analysis

The module is especially valuable in IoT environments when combined with wireless microcontrollers such as ESP32 or Wi-Fi modules. Developers can create cloud-connected energy monitoring systems capable of transmitting real-time voltage data to mobile applications, dashboards, and remote servers for analysis and automation.

Another important advantage of the ZMPT101B module is its affordability and widespread availability. It offers a low-cost solution for AC voltage sensing without requiring complex isolation circuits or expensive measurement equipment. This makes it highly attractive for educational institutions, prototype development, DIY projects, and low-cost industrial monitoring systems.

The module is supported by a large online community and extensive software resources, including Arduino libraries, calibration examples, and open-source power monitoring projects. These resources simplify development and help users implement reliable AC voltage measurement systems quickly.

Because the module interfaces directly with high-voltage AC lines, proper safety precautions must always be followed during installation and testing. Although the transformer provides electrical isolation, users should ensure correct wiring, insulation, and safe handling procedures when working with mains electricity.

Overall, the AC Voltage Sensor ZMPT101B is a reliable, accurate, and easy-to-use AC voltage sensing solution designed for modern embedded electronics and power monitoring applications. Its precision voltage transformer, high isolation capability, analog output interface, compact design, and compatibility with popular microcontroller platforms make it an excellent choice for energy monitoring, smart automation, industrial control, IoT systems, and educational electronics development. Whether used for simple voltage measurement or advanced smart energy management systems, the ZMPT101B module provides safe and efficient AC voltage monitoring in a compact and cost-effective form factor.
