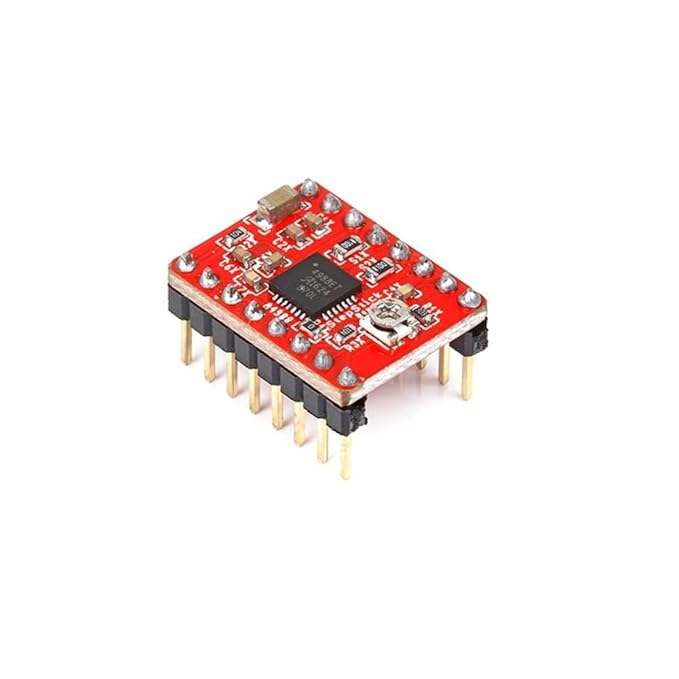

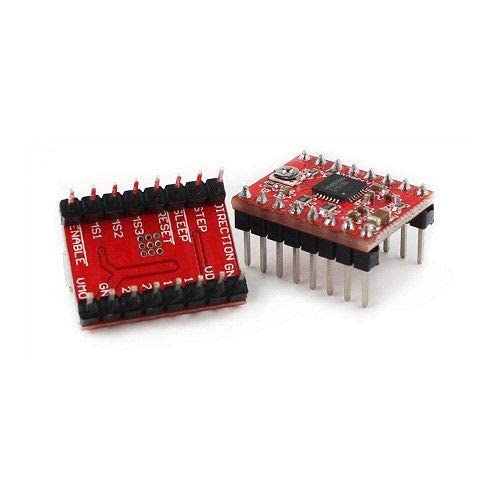

A4988 Stepper Motor Driver Module with Heat Sink for 3D Printer (Red)

The A4988 Stepper Motor Driver Module with Heat Sink (Red) is a compact microstepping motor driver designed to control bipolar stepper motors with high precision and efficiency. It is based on the Allegro A4988 stepper motor driver IC and is widely used in 3D printers, CNC machines, laser engravers, robotics, automation systems, camera sliders, plotters, and other motion control applications. The included aluminum heat sink improves heat dissipation, allowing the driver to operate more reliably during continuous operation.

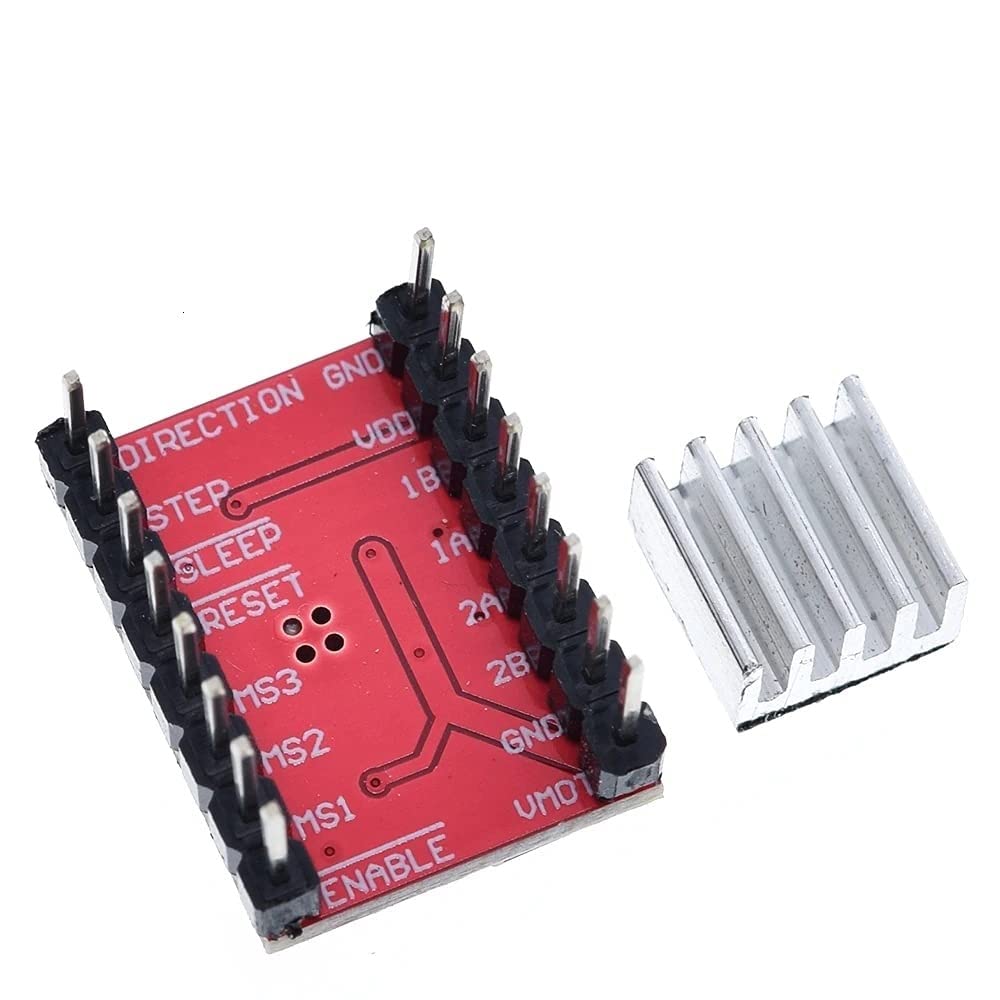

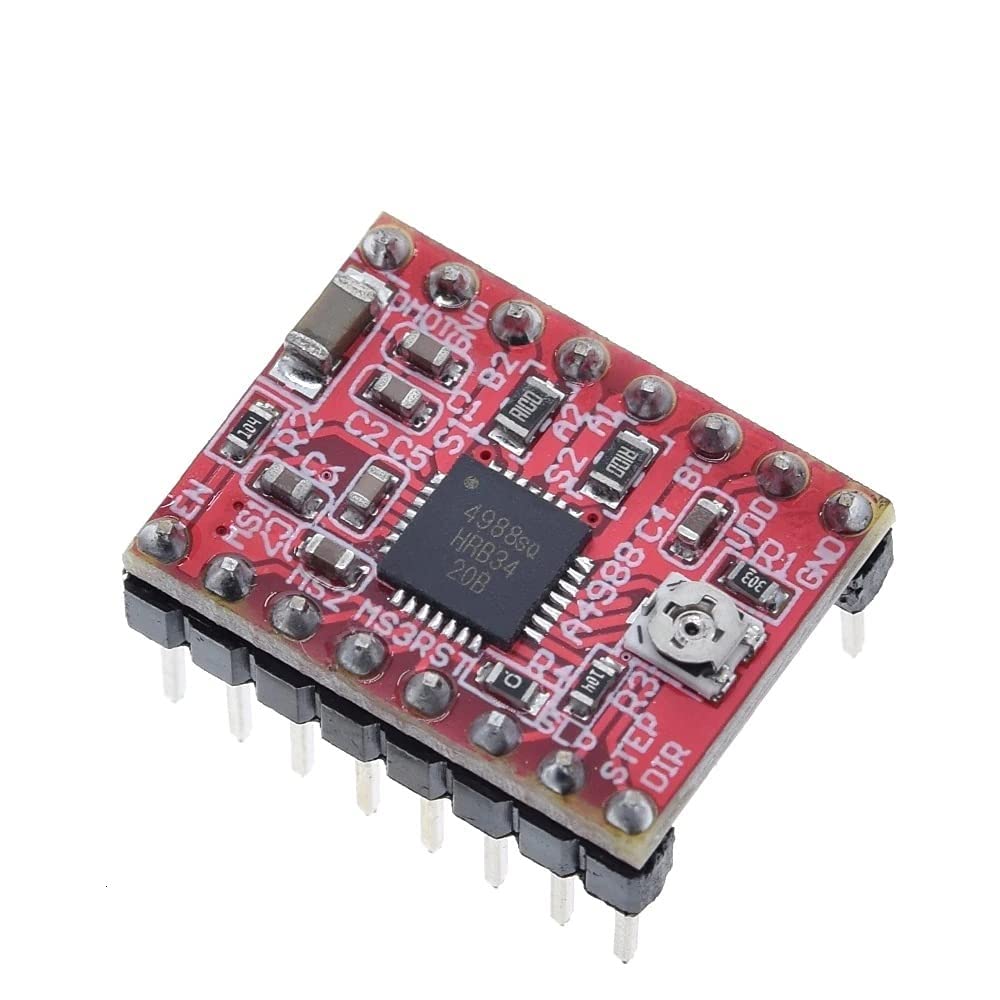

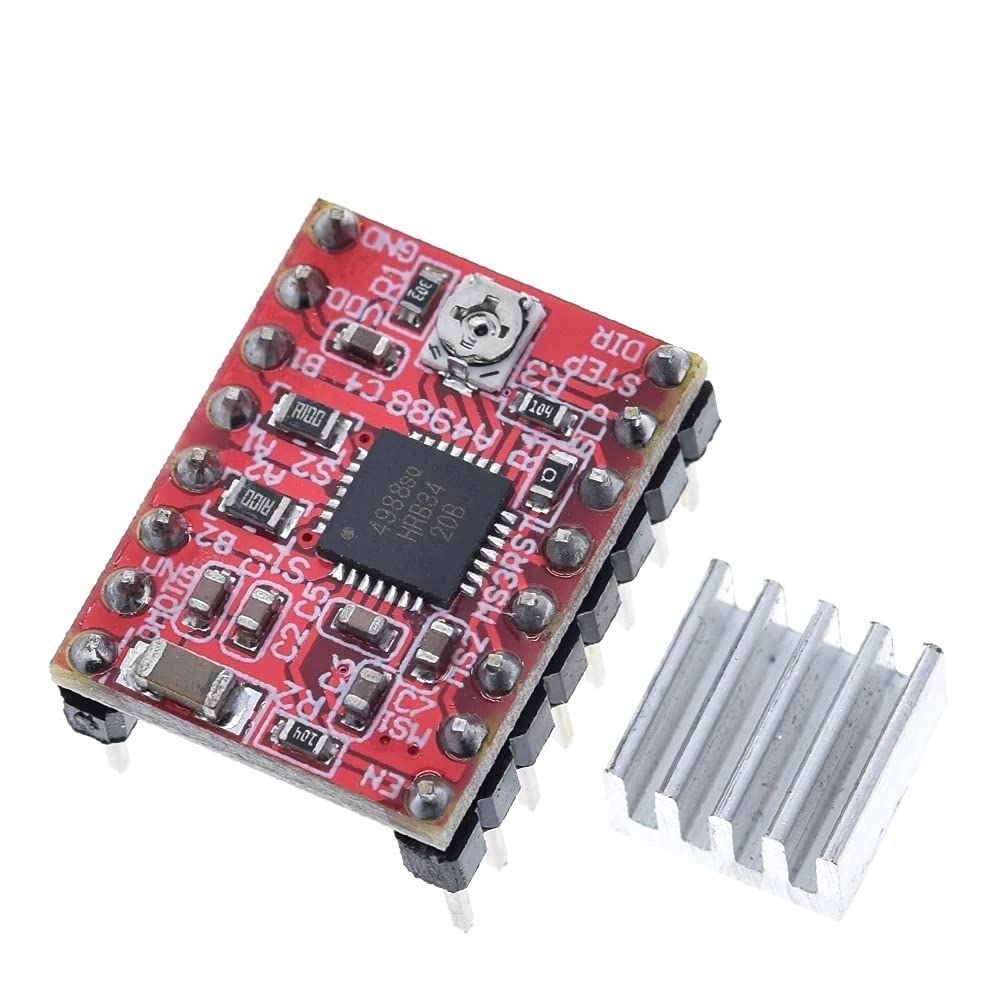

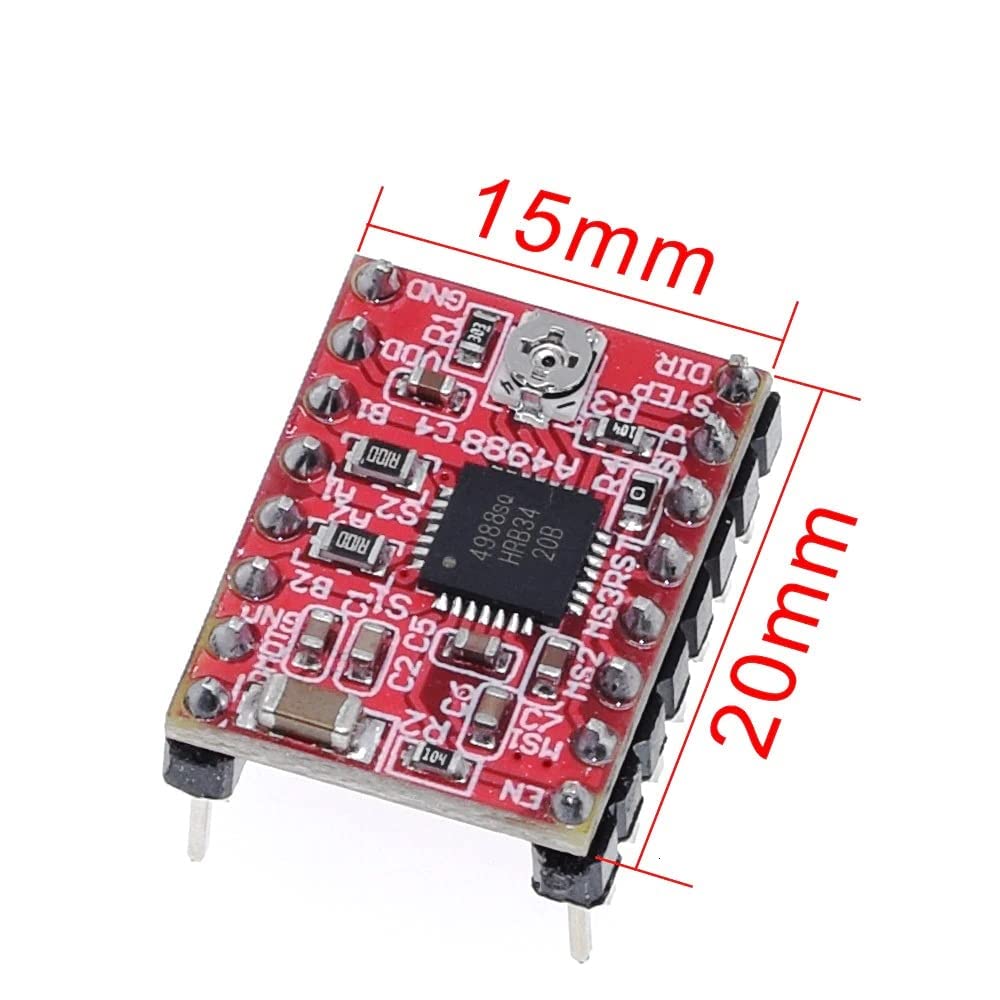

The module consists of the A4988 driver IC, current-sense resistors, voltage regulator, protection circuitry, microstepping selection pins, motor output terminals, logic input pins, adjustable current limiting potentiometer, power supply terminals, and an aluminum heat sink. The compact design allows the module to be easily installed on controller boards such as RAMPS, CNC shields, and custom PCBs.

The working principle of the A4988 Stepper Motor Driver is based on controlled current regulation and microstepping technology. The module receives STEP and DIR (Direction) signals from a microcontroller. Every pulse applied to the STEP pin moves the stepper motor by one step or microstep, while the DIR pin determines the direction of rotation. The A4988 controls the current flowing through the motor windings using PWM (Pulse Width Modulation), providing smooth motion, improved torque, and reduced vibration.

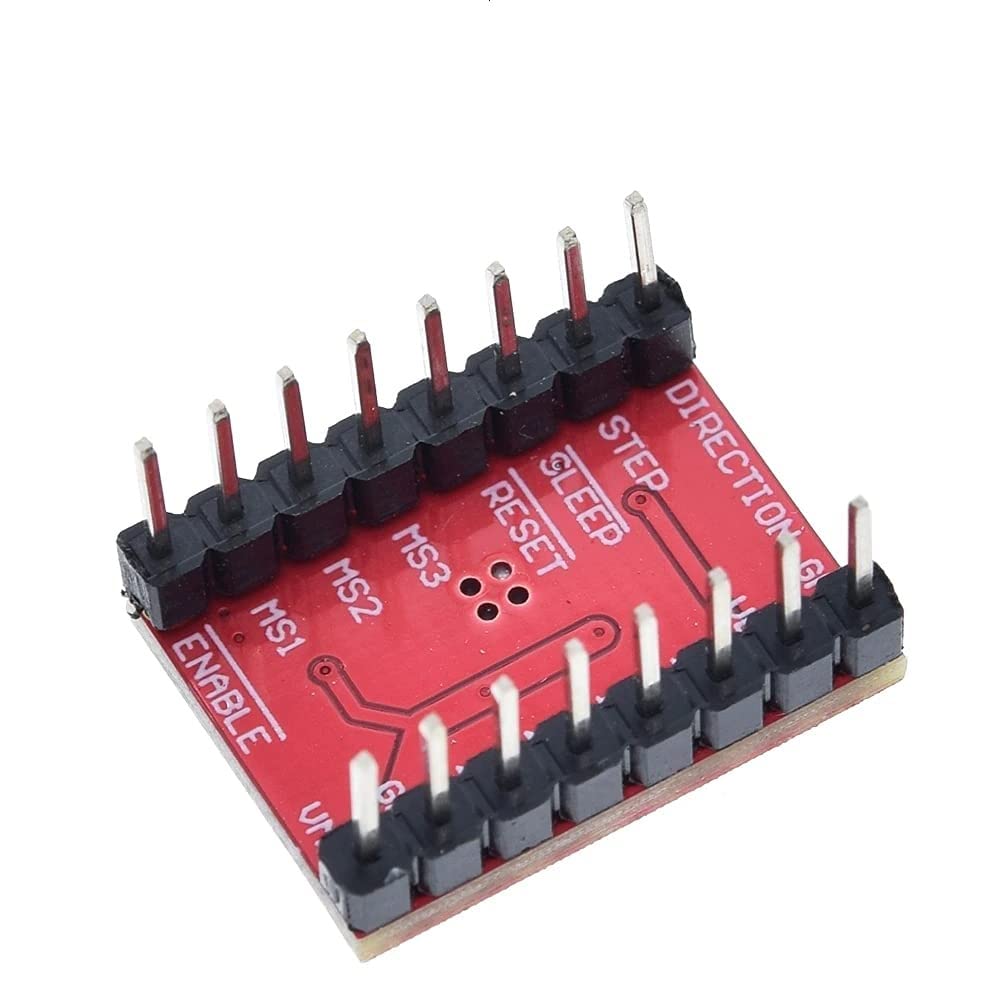

The driver supports multiple microstepping modes, including Full Step, Half Step, Quarter Step (1/4), Eighth Step (1/8), and Sixteenth Step (1/16). These modes are selected using the MS1, MS2, and MS3 control pins. Microstepping increases positioning accuracy and produces smoother motor movement, making it ideal for precision applications such as 3D printing and CNC machining.

The module operates with a logic voltage of 3V to 5.5V, making it compatible with Arduino, ESP32, ESP8266, STM32, PIC, AVR, and Raspberry Pi (through GPIO). The motor supply voltage ranges from approximately 8V to 35V DC, allowing it to drive a wide variety of bipolar stepper motors. With proper cooling, the driver can supply up to approximately 2A per coil (with adequate heat dissipation), although continuous operation is typically recommended at lower currents for improved reliability.

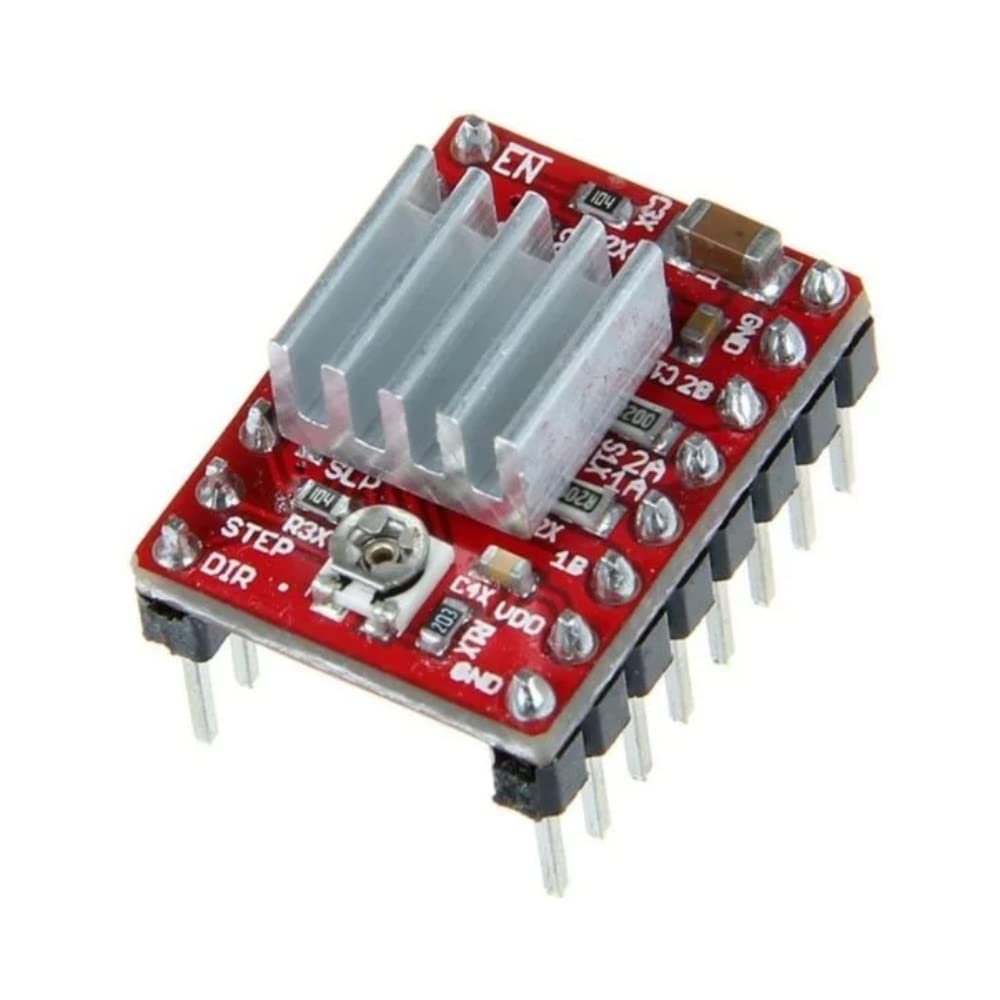

The onboard current adjustment potentiometer allows users to set the maximum motor current according to the motor specifications. Proper current adjustment helps prevent motor overheating and protects both the motor and the driver from excessive current.

The module includes built-in protection features such as overcurrent protection, thermal shutdown, undervoltage lockout, and short-circuit protection, ensuring safe and reliable operation even under demanding conditions.

The applications of the A4988 Stepper Motor Driver Module include 3D printers, CNC routers, laser engraving machines, robotic arms, camera sliders, automatic positioning systems, conveyor control, plotters, industrial automation, educational robotics, laboratory equipment, embedded systems, IoT projects, prototype development, and DIY electronics.

The advantages of the A4988 Stepper Motor Driver Module include compact size, precise microstepping control, adjustable current limiting, smooth motor operation, reduced vibration and noise, easy interfacing using STEP and DIR signals, built-in protection circuits, wide operating voltage range, compatibility with popular microcontrollers, included aluminum heat sink for improved cooling, and reliable performance in continuous operation.

In conclusion, the A4988 Stepper Motor Driver Module with Heat Sink for 3D Printer (Red) is a reliable and high-performance motor driver designed for accurate control of bipolar stepper motors. Its microstepping capability, adjustable current control, integrated safety features, and compatibility with Arduino, CNC controllers, and 3D printer electronics make it an excellent choice for robotics, automation, precision motion control, educational electronics, and engineering projects.
