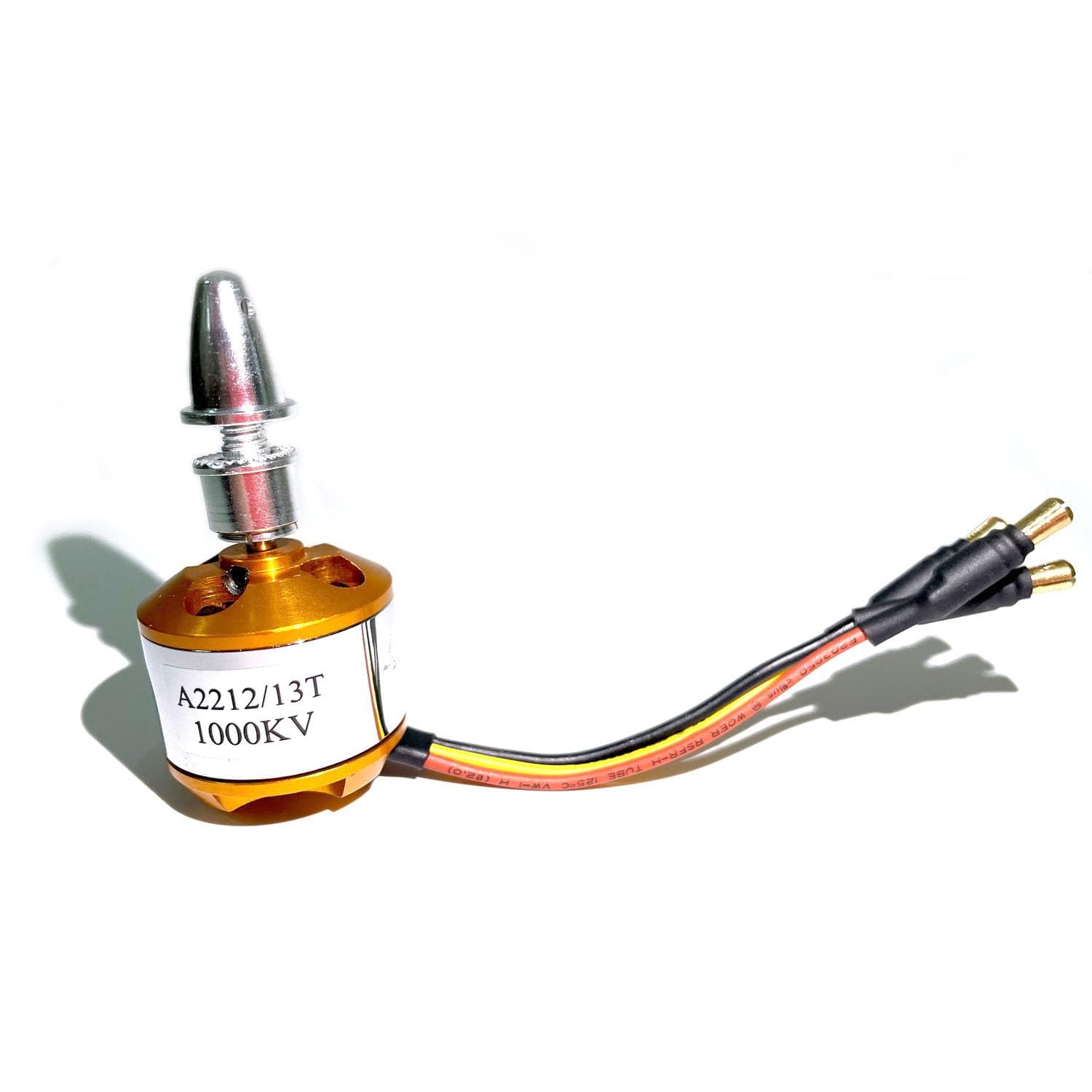

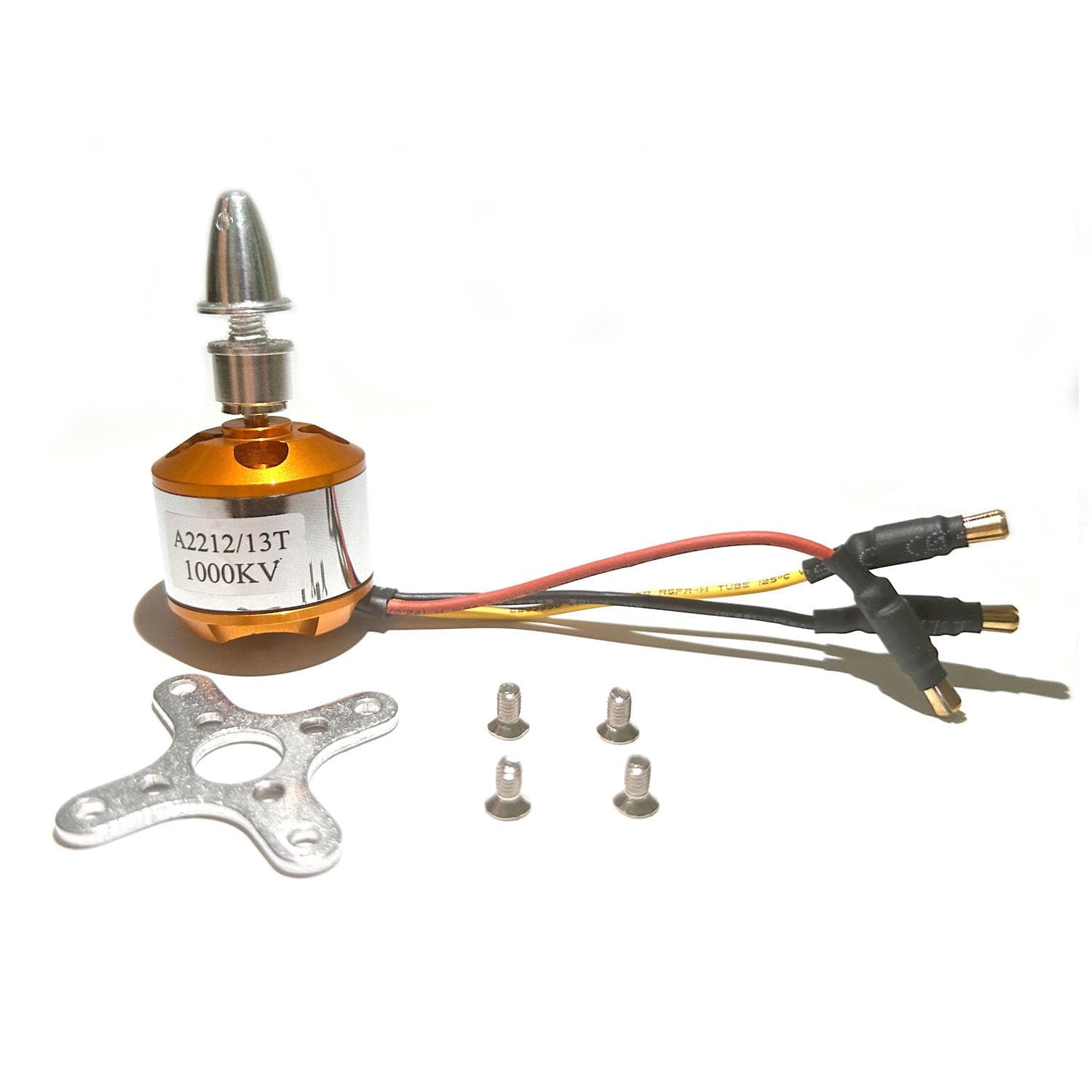

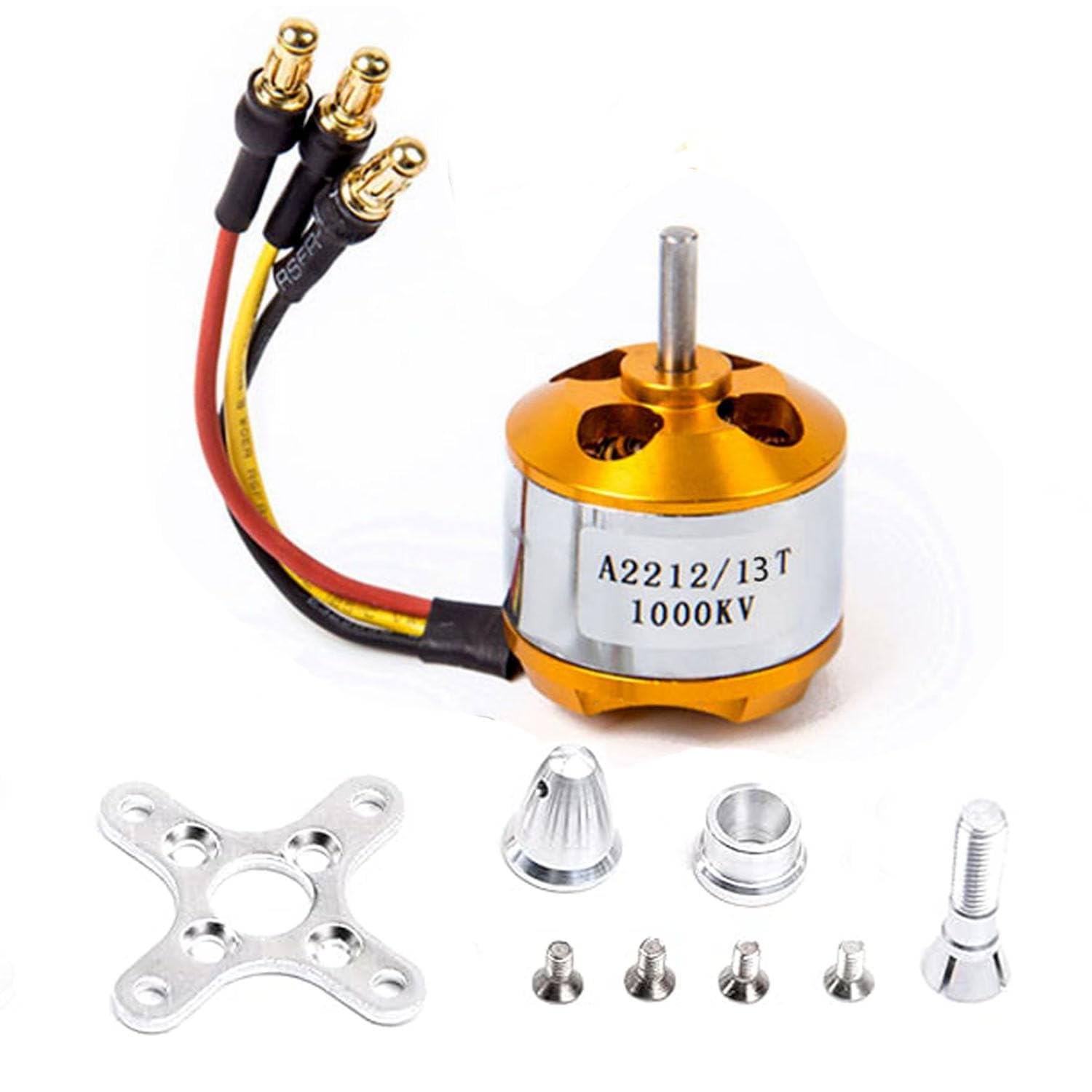

A2212 1000KV BLDC Motor For RC Drones And Quadcopters

the a2212 1000kv bldc motor is a high-efficiency brushless dc motor widely used in rc drones, quadcopters, multirotor aircraft, and other aerial robotics applications. it is designed to provide powerful rotational speed, smooth performance, and reliable thrust generation while maintaining lightweight construction, which is essential for flying systems.

the term “a2212” refers to the motor’s physical size and stator configuration. the “1000kv” rating indicates the motor speed constant, meaning the motor can theoretically rotate at approximately 1000 revolutions per minute (rpm) for every 1 volt supplied under no-load conditions. for example, when powered with an 11.1v lipo battery, the motor can reach around 11,000 rpm without load.

unlike traditional brushed motors, the a2212 uses brushless dc (bldc) technology. in a brushless motor, there are no physical brushes making contact with the rotating shaft. instead, electronic switching controls the magnetic fields inside the motor. this greatly reduces friction, improves efficiency, lowers heat generation, and increases operational lifespan.

the motor requires an electronic speed controller (esc) for operation. the esc receives pwm signals from a flight controller or microcontroller and regulates the power supplied to the motor. this allows precise control over motor speed, acceleration, and stability during flight.

the working principle of the a2212 motor is based on electromagnetic rotation. when the esc energizes the stator windings in sequence, a rotating magnetic field is created. the permanent magnets attached to the rotor follow this magnetic field, causing the shaft and attached propeller to rotate at high speed.

the motor is specifically designed for use with propellers to generate thrust. by spinning the propeller rapidly, the motor pushes air downward, producing lift that allows drones and quadcopters to fly. different propeller sizes and battery voltages can be used depending on the desired thrust and flight characteristics.

one of the major advantages of the a2212 1000kv motor is its excellent balance between speed, torque, and efficiency. it provides stable flight performance, smooth throttle response, and sufficient lifting power for medium-sized drones and rc aircraft.

the motor is commonly paired with:

• 30a esc controllers

• 10x4.5 or similar propellers

• 3s lipo batteries (11.1v)

• flight controllers such as kk2.1.5, naze32, pixhawk, or arduino-based systems

typical applications include:

• rc quadcopters and drones

• multirotor aerial vehicles

• diy drone building projects

• fpv racing drones

• rc airplanes and aircraft

• aerial photography platforms

• robotics and propulsion systems

the lightweight aluminum body improves heat dissipation and reduces total aircraft weight, helping improve flight time and efficiency. its durable construction and reliable operation make it popular among hobbyists, students, and professional drone developers.

overall, the a2212 1000kv bldc motor is a reliable, efficient, and high-performance motor solution for drone propulsion and rc flight systems, offering smooth operation, strong thrust generation, and long operational life for a wide range of aerial and robotics applications.
