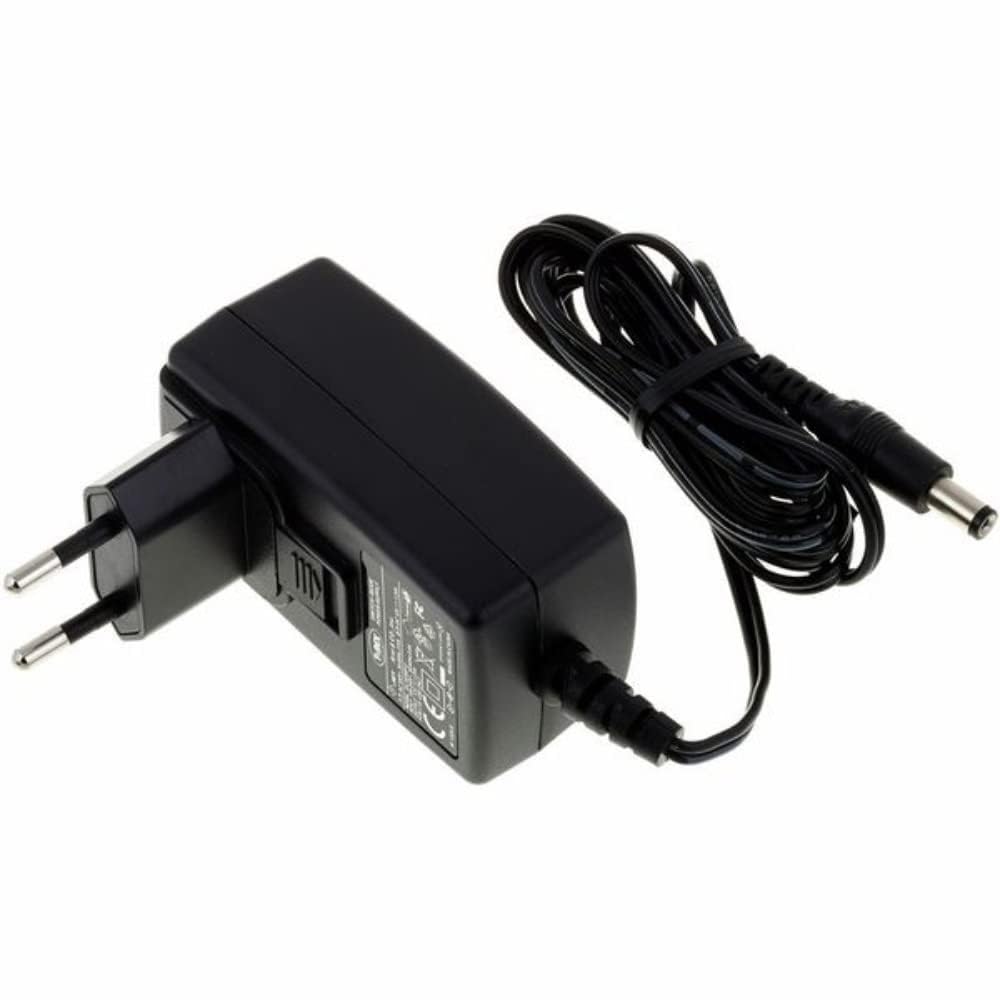

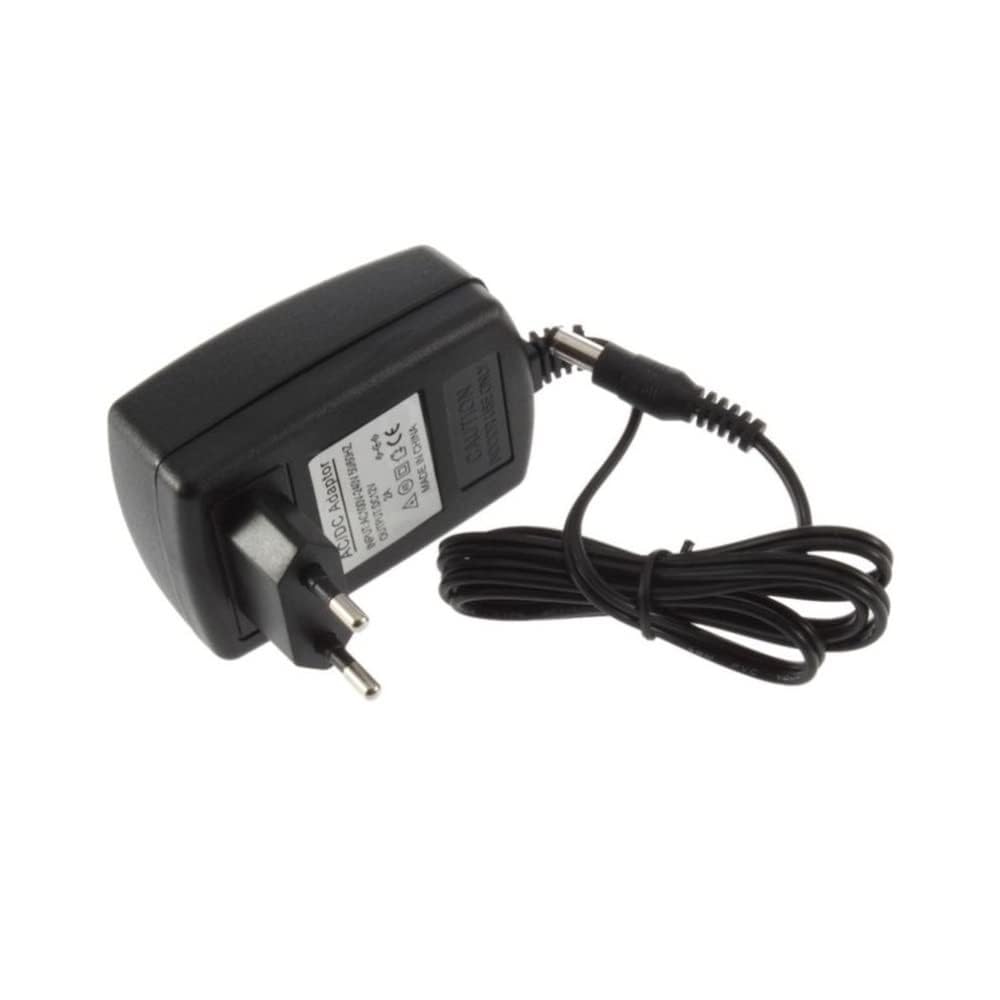

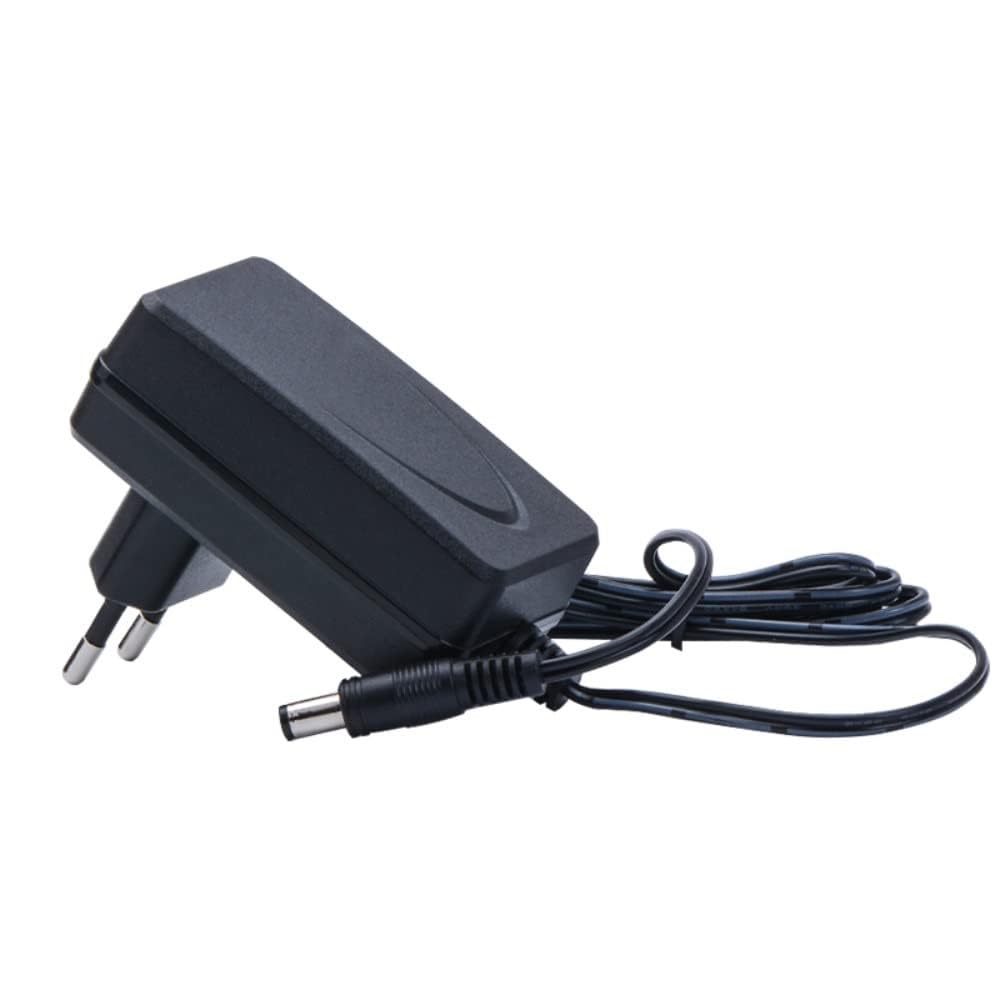

9V 2A DC Power Supply Adapter (single pin)

The 9V 2A DC Power Supply Adapter is a regulated AC-to-DC switching power adapter designed to convert high-voltage AC mains electricity into a stable 9V DC output with a maximum output current of 2 Amperes (2A). It is commonly used to power Arduino projects, routers, CCTV cameras, audio equipment, LED lighting, development boards, embedded systems, robotics, communication devices, and DIY electronic projects. The adapter provides a reliable and efficient power source while protecting connected devices from voltage fluctuations and electrical faults.

The adapter consists of a Switch Mode Power Supply (SMPS) circuit, EMI filter, bridge rectifier, high-frequency transformer, PWM controller, switching MOSFET, output rectifier, filter capacitors, voltage regulation circuit, protection circuitry, DC output cable, and a DC barrel connector (typically 5.5 mm × 2.1 mm, depending on the model). The entire circuit is enclosed in a durable, flame-retardant insulated plastic housing that ensures electrical safety, efficient heat dissipation, and long service life.

The working principle of the 9V 2A DC Power Supply Adapter begins when an AC input voltage of 100–240V is supplied to the adapter. The AC voltage is first filtered and rectified into DC. The switching circuit then converts the DC into high-frequency pulses, which pass through a high-frequency transformer to reduce the voltage. The output is rectified, filtered, and regulated to provide a stable 9V DC output. This switching technology provides high conversion efficiency, low heat generation, and minimal output ripple, making it suitable for sensitive electronic devices.

The adapter provides a maximum output of 9 Volts DC at 2 Amperes, delivering up to 18 Watts of power. It is designed for devices that require 9V DC and consume 2A or less. Devices requiring less current will draw only the current they need, while devices requiring more than 2A may not operate properly and could activate the adapter's protection circuits.

Most versions are equipped with a center-positive DC barrel connector (5.5 mm × 2.1 mm), which is widely used in electronic equipment. Before connecting the adapter, users should verify the required voltage, current rating, connector size, and polarity of the device to ensure compatibility.

The adapter incorporates multiple built-in safety features, including:

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Overload protection

• Over-temperature (thermal) protection

• Surge protection

These protection mechanisms help safeguard both the adapter and connected devices from electrical damage, ensuring reliable and safe operation.

The 9V 2A DC Power Supply Adapter is compatible with a wide range of electronic equipment, including Arduino Uno, Arduino Mega, development boards (through appropriate voltage regulation), routers, CCTV cameras, LCD displays, LED lighting systems, audio amplifiers, wireless communication devices, embedded systems, robotics platforms, laboratory instruments, testing equipment, and various DIY electronic circuits.

The applications of the 9V 2A DC Power Supply Adapter include powering routers, CCTV security systems, audio devices, LED lighting, robotics, embedded systems, IoT devices, automation equipment, wireless communication modules, laboratory instruments, educational electronics, engineering projects, prototype development, industrial control systems, testing equipment, and DIY electronics.

The advantages of the adapter include stable regulated 9V DC output, maximum 2A current capacity, high conversion efficiency, universal 100–240V AC input, low ripple and electrical noise, compact and lightweight design, reliable performance, multiple built-in protection circuits, energy-efficient operation, durable insulated housing, plug-and-play installation, and long operational life.

In conclusion, the 9V 2A DC Power Supply Adapter is a dependable and efficient regulated power supply that delivers a stable 9V DC output for a wide variety of electronic devices. Its high efficiency, universal AC input compatibility, comprehensive protection features, and compatibility with robotics, embedded systems, communication devices, automation equipment, and DIY electronics make it an excellent choice for educational, industrial, and professional electronic applications.
