8 Channel Relay Module 5V DC

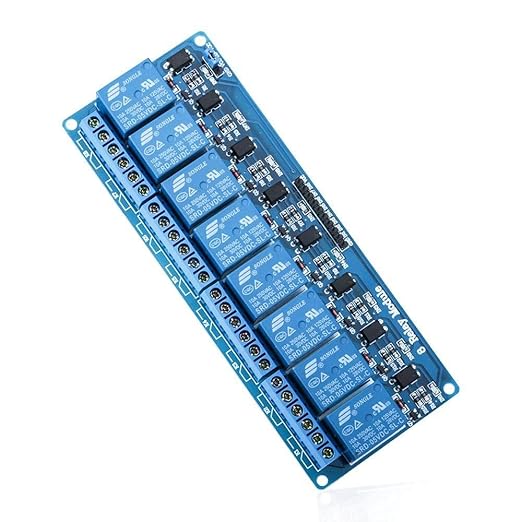

The 8 Channel Relay Module 5V DC is a versatile electronic switching interface board designed to control multiple high-voltage or high-current electrical devices using low-voltage digital signals from microcontrollers and embedded systems. Operating on a 5V DC supply, this module enables safe and efficient switching of AC and DC electrical loads such as lights, fans, motors, pumps, solenoids, appliances, and industrial equipment. Its multi-channel design makes it highly suitable for automation systems, smart home projects, industrial control applications, robotics, and IoT-based switching systems.

The module contains eight independent relay channels, allowing a single microcontroller or control system to operate up to eight separate electrical devices simultaneously. Each relay acts as an electrically operated switch that isolates the low-voltage control side from the high-voltage load side, improving system safety and protecting sensitive electronics from dangerous voltages and currents.

The primary function of the relay module is to enable microcontrollers such as Arduino Uno R3, Arduino Nano Board V3, Arduino UNO R3 (CH340G), ESP32 boards, NodeMCU modules, and Raspberry Pi 4 Model B systems to control electrical devices that require voltages and currents beyond the direct handling capability of microcontroller pins.

The working principle of the relay module is based on electromagnetic switching. Each relay contains an internal electromagnetic coil and mechanical switching contacts. When a low-voltage signal is applied from the microcontroller to the relay input pin, the coil becomes energized and creates a magnetic field. This magnetic field pulls the internal switching contact into a new position, either opening or closing the connected electrical circuit. As a result, external electrical devices can be turned ON or OFF electronically through software control.

The module operates using a 5V DC power supply, which powers the onboard relay coils, status LEDs, and control circuitry. Most modules feature a separate control signal interface that allows direct connection to microcontroller GPIO pins for easy operation and integration.

Each relay channel typically includes three output terminals:

• Common (COM)

• Normally Open (NO)

• Normally Closed (NC)

These terminals provide flexibility for different switching configurations. The Normally Open contact remains disconnected until the relay is activated, while the Normally Closed contact remains connected until activation. This arrangement enables both automatic ON and automatic OFF control systems depending on application requirements.

One of the major advantages of the 8 Channel Relay Module is its ability to isolate low-voltage control electronics from high-voltage electrical loads. This electrical isolation helps protect microcontrollers and users from dangerous voltages commonly present in AC mains systems and industrial equipment.

Many versions of the module include onboard optocoupler isolation circuitry. Optocouplers provide additional electrical isolation between the control side and the relay switching side by transferring signals using light instead of direct electrical connections. This improves noise immunity, reduces interference, and enhances system safety in industrial and automation environments.

The module usually includes LED indicators for each relay channel. These LEDs visually display relay status and make troubleshooting easier during installation, testing, and operation. Power indicators are also commonly included to confirm module power availability.

The 8-channel configuration is particularly useful in automation and control systems where multiple devices need to be managed independently. A single module can control lighting systems, motors, fans, pumps, alarms, doors, and other equipment simultaneously, reducing circuit complexity and improving system organization.

In home automation applications, the relay module is widely used to create smart switching systems for controlling household appliances, lights, fans, water pumps, curtains, and electrical outlets. When combined with Wi-Fi or IoT-enabled microcontrollers, users can remotely control devices through mobile applications, cloud platforms, or voice assistants.

Industrial automation systems use relay modules for machine control, process automation, motor switching, emergency shutdown systems, and equipment monitoring. The module’s ability to handle higher voltages and currents makes it suitable for interfacing embedded controllers with industrial electrical equipment.

The relay module is also frequently used in robotics and embedded systems projects where microcontrollers must control motors, actuators, solenoids, and external power systems. Its simple interface allows easy software-based control using digital output pins.

Educational institutions and STEM learning programs commonly use the relay module to teach students about electrical switching, automation, industrial control systems, and embedded electronics. Beginners can safely learn how low-voltage electronics interact with high-power electrical devices through practical experimentation.

The module is highly compatible with standard embedded development environments and software platforms. Arduino libraries and GPIO programming examples simplify relay control implementation for beginners and advanced users alike.

Typical applications of the 8 Channel Relay Module 5V DC include:

• Home automation systems

• Smart appliance control

• Industrial automation systems

• Motor and pump control

• Lighting control systems

• Smart irrigation systems

• Security and alarm systems

• IoT switching applications

• Robotics and automation projects

• Embedded control systems

• Electrical load switching

• Remote-controlled power systems

The relay module is designed for easy wiring and installation. Screw terminals or terminal blocks provide secure connections for external loads, while standard header pins allow quick interfacing with microcontroller development boards.

The compact PCB design enables easy integration into project enclosures, industrial control panels, and prototype systems. Its modular structure also simplifies maintenance and replacement if required.

Another important feature of the relay module is its flexibility in supporting both AC and DC loads. Depending on the relay specifications, the module can switch household AC appliances as well as DC-powered devices such as motors, LEDs, and solenoids.

Because the relay contacts are mechanical, they provide complete electrical isolation between the switched load and the control electronics. This makes relay modules more suitable for certain high-voltage switching applications compared to transistor-only switching systems.

The module’s durable relay components are designed to support repeated switching operations and continuous usage in automation environments. Proper load handling and safe operating conditions can significantly extend relay lifespan and improve system reliability.

Safety precautions are essential when working with high-voltage electrical systems. Although the relay module provides electrical isolation, proper insulation, secure wiring, and safe installation practices must always be followed when switching mains-powered devices.

The 8 Channel Relay Module is highly popular because of its affordability, simplicity, reliability, and broad compatibility with embedded development platforms. Extensive online tutorials, sample codes, and automation projects are available for users ranging from beginners to professional developers.

Overall, the 8 Channel Relay Module 5V DC is a powerful, reliable, and easy-to-use switching interface designed for controlling multiple electrical devices safely through low-voltage embedded systems. Its eight independent relay channels, electrical isolation capability, high-voltage switching support, LED status indicators, and compatibility with popular microcontroller platforms make it an excellent solution for home automation, industrial control, robotics, IoT systems, and educational electronics projects. Whether used for smart home switching, automation control, or embedded power management, this relay module provides dependable electrical switching performance and flexible integration for a wide range of practical applications.
