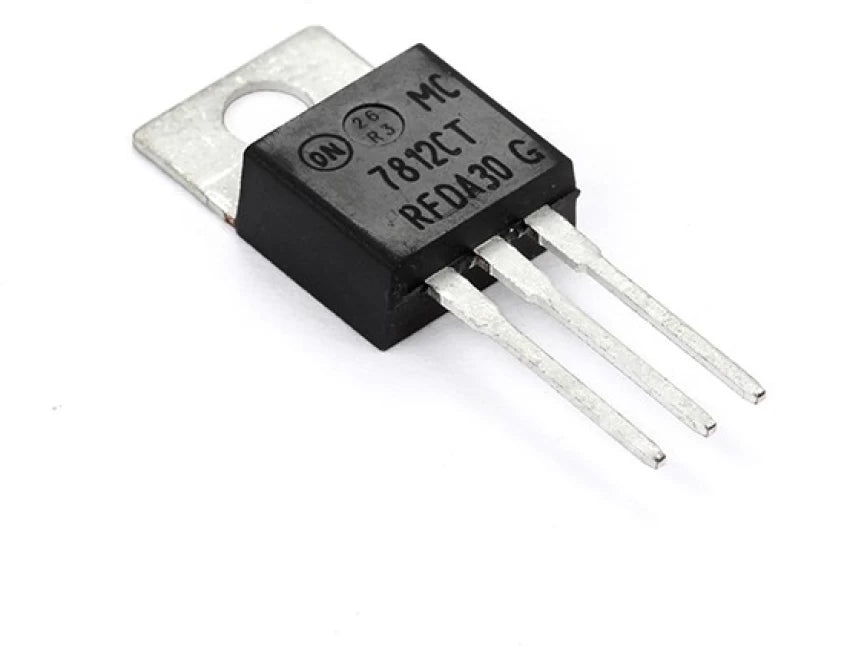

7812 Voltage Regulator IC

The 7812 Voltage Regulator IC is a fixed positive linear voltage regulator designed to provide a stable and regulated +12V DC output from a higher unregulated DC input voltage. It is one of the most commonly used members of the 78xx series voltage regulators, widely known for its simplicity, reliability, and strong performance in electronic power supply circuits.

This IC is used in a wide range of electronic systems where a constant 12V supply is required. It helps protect sensitive electronic components from voltage fluctuations, spikes, and unstable power sources. By maintaining a steady output voltage, it ensures safe and efficient operation of circuits such as microcontroller systems, sensors, amplifiers, and communication devices.

The 7812 regulator operates as a linear voltage regulator, meaning it reduces excess input voltage by dissipating it as heat. Because of this, it is important to use an appropriate heat sink when the load current is high or when the input-output voltage difference is large. Under proper thermal conditions, it can supply up to 1A of output current, making it suitable for low to medium power applications.

The IC comes in a simple 3-pin configuration:

• Input Pin: Receives unregulated DC voltage (typically 14V to 35V)

• Ground Pin: Common reference point for circuit

• Output Pin: Provides regulated +12V DC output

Its internal design includes multiple protection mechanisms that enhance safety and durability. These include thermal overload protection, which prevents overheating, and short-circuit protection, which safeguards both the IC and connected components in case of accidental short circuits.

The 7812 IC is widely used in power supply circuits, embedded systems, DIY electronics projects, automotive electronics, industrial control systems, and audio devices. Its ability to provide a clean and stable voltage makes it an essential component in almost every electronics workshop.

Working Principle

The 7812 regulator works by comparing the output voltage with an internal reference voltage and automatically adjusting its internal resistance to maintain a constant output.

• When input voltage increases, the IC dissipates extra energy as heat.

• When load demand changes, it adjusts internal conduction to maintain 12V output.

• Internal feedback circuitry ensures stable voltage regulation under varying conditions.

This process ensures that the output remains steady even if the input voltage or load changes.

Key Features

• Fixed +12V regulated output

• Output current up to 1A (with heat sink)

• Simple 3-pin configuration

• Built-in thermal overload protection

• Short-circuit protection

• High reliability and stability

• Low external component requirement

• Easy integration into circuits

• Wide input voltage range support

Applications

The 7812 Voltage Regulator IC is widely used in:

• DC power supply circuits

• Arduino and microcontroller systems

• Sensor modules and embedded systems

• Audio amplifiers

• Communication devices

• Industrial control circuits

• DIY electronics projects

• Automotive electronics

• Battery-powered systems

• Robotics and automation systems

Specifications

• Product Type: Linear Voltage Regulator IC

• Series: 78xx Series

• Output Voltage: +12V Fixed

• Output Current: Up to 1A (with proper cooling)

• Input Voltage Range: Typically 14V – 35V

• Package Type: TO-220 (commonly)

• Pins: Input, Ground, Output

• Regulation Type: Linear regulator

Package Includes

• 1 × 7812 Voltage Regulator IC

Safety Precautions

• Always use a heat sink for high current loads.

• Do not exceed recommended input voltage range.

• Ensure correct pin connections before powering the circuit.

• Avoid short circuits at the output terminal.

• Provide proper ventilation during operation.
