LM7805 IC – 5V Positive Voltage Regulator IC

The LM7805 IC (5V Positive Voltage Regulator IC) is a widely used linear voltage regulator designed to provide a stable and regulated +5V DC output voltage from a higher DC input voltage source. It belongs to the 78xx series of fixed voltage regulators and is commonly used in electronic circuits where a reliable 5V power supply is required for microcontrollers, sensors, and other low-power electronic components.

The LM7805 regulator maintains a constant 5V output despite variations in input voltage or load conditions, ensuring safe and stable operation of connected devices. It accepts an input voltage typically ranging from 7V to 35V DC and can provide up to 1A output current with proper heat dissipation. The device uses internal regulation circuitry to minimize voltage fluctuations and protect sensitive electronic components from unstable power sources.

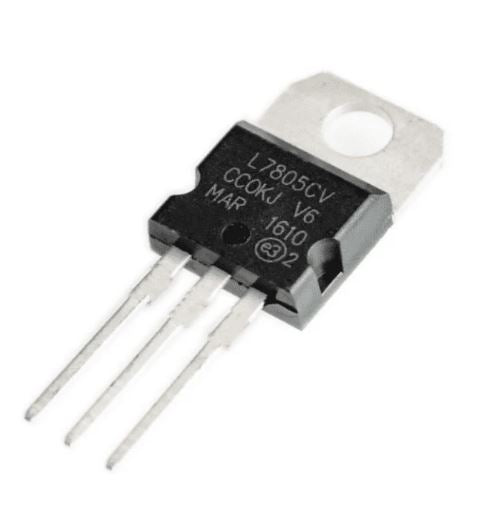

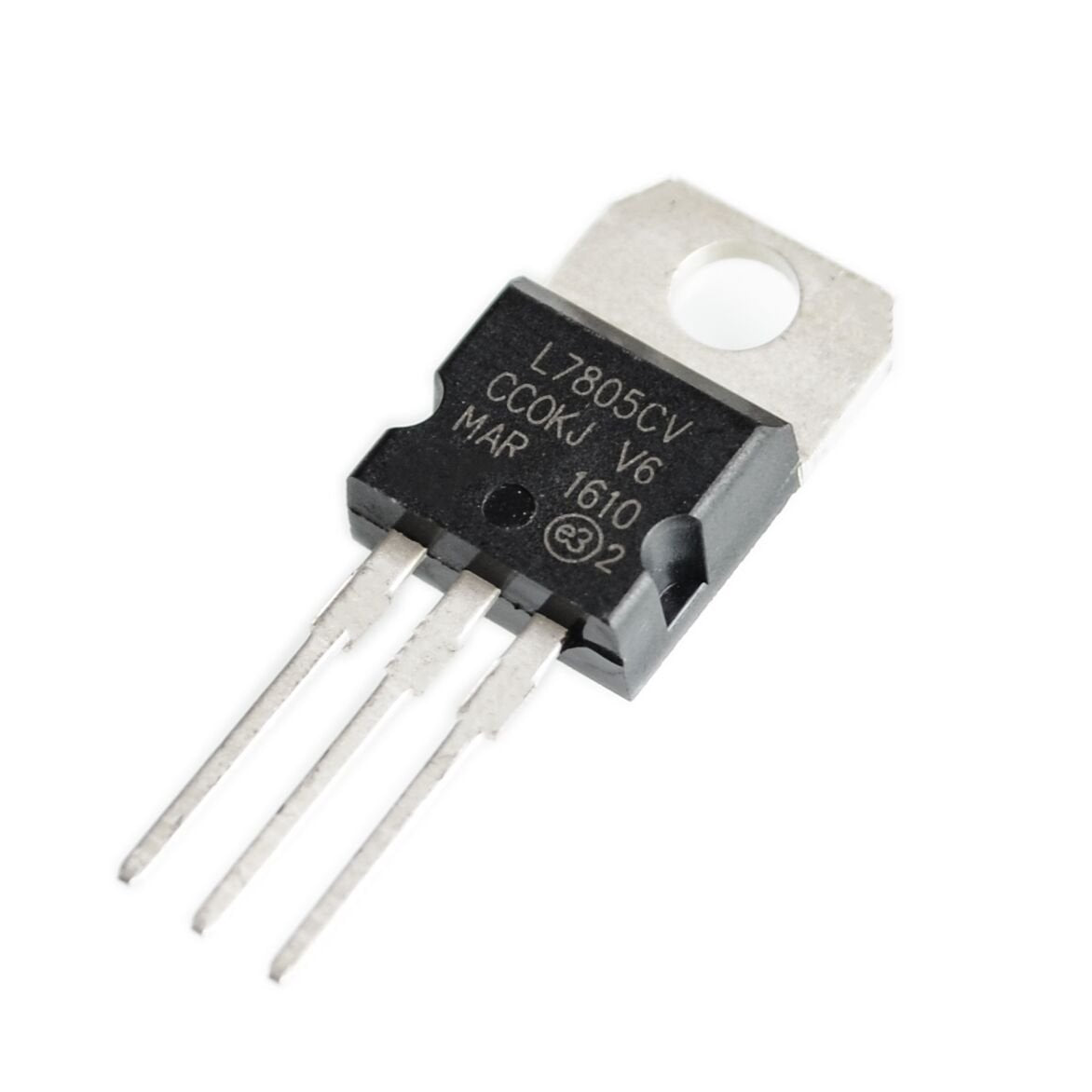

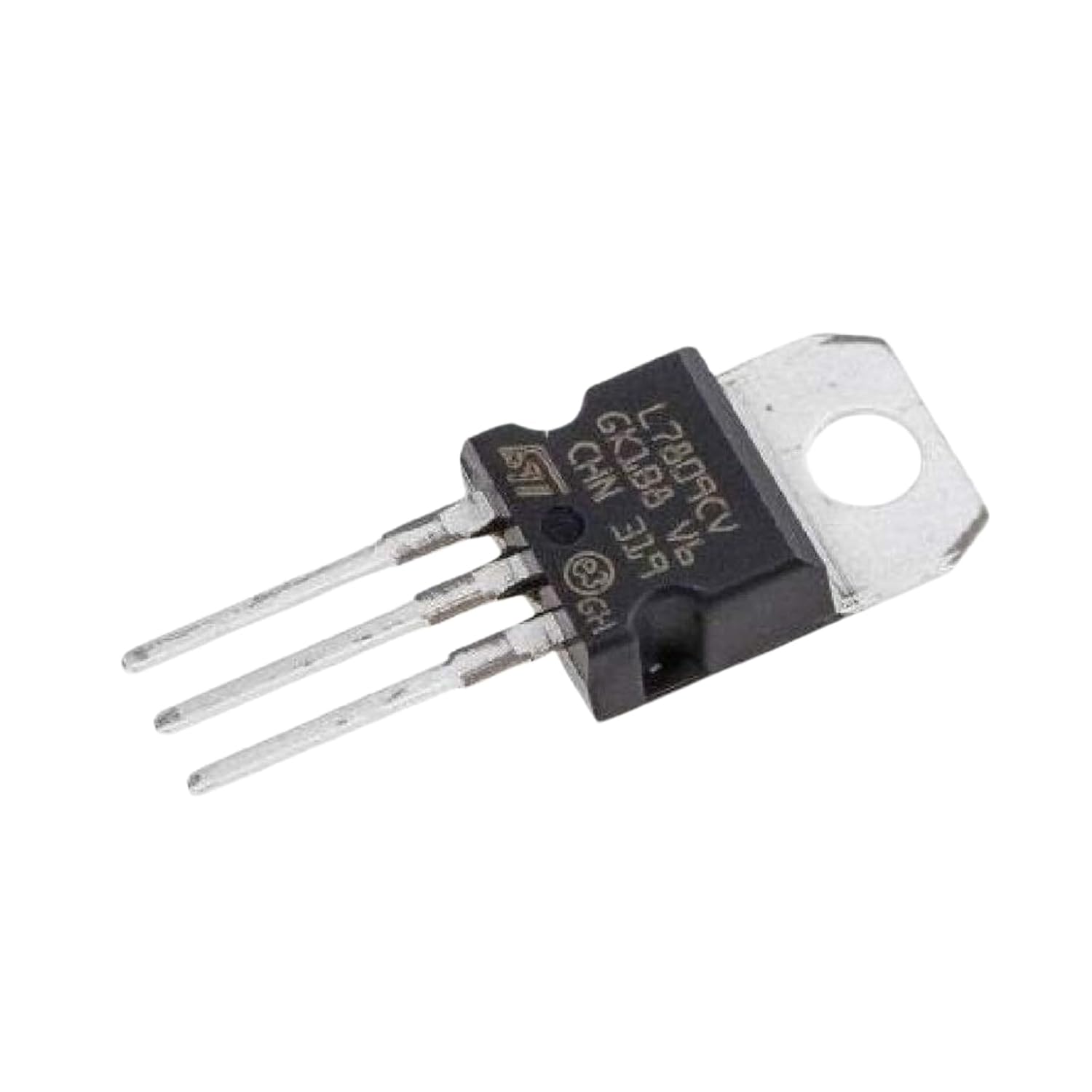

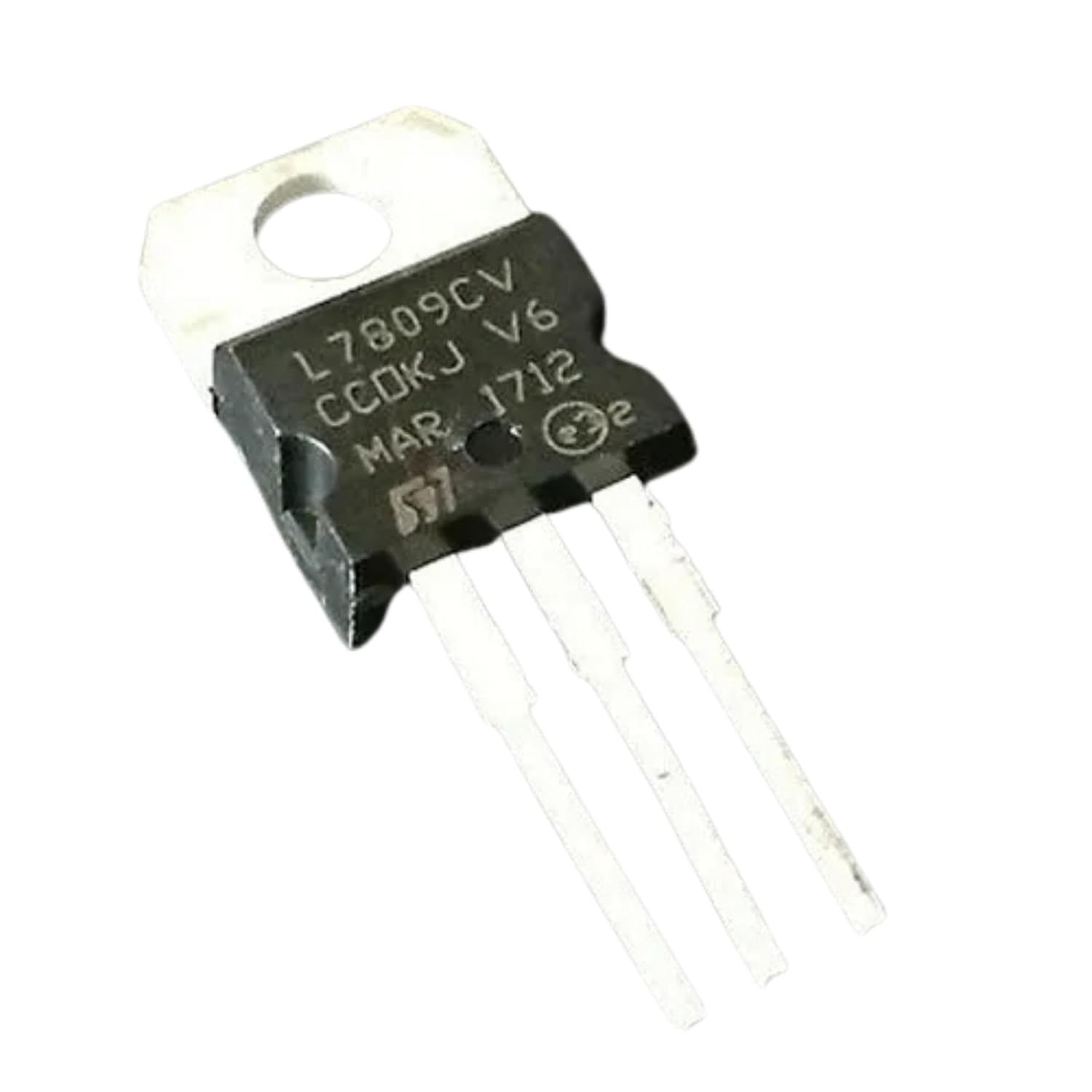

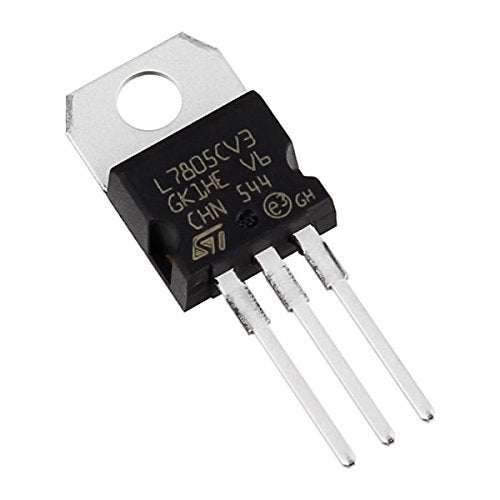

The IC is available in a standard TO-220 package, which allows easy mounting on PCBs and heat sinks for improved thermal performance. Built-in protection features such as thermal shutdown, short-circuit protection, and safe operating area protection help improve reliability and prevent damage during abnormal operating conditions.

The LM7805 5V Voltage Regulator IC is widely used in Arduino power supplies, embedded systems, robotics, IoT devices, sensor circuits, battery-powered projects, control systems, audio circuits, communication equipment, and DIY electronics applications. Its simple design, low cost, and reliable performance make it one of the most popular voltage regulator ICs used by students, hobbyists, engineers, and electronic designers.

Features

• Fixed +5V regulated DC output

• Part of the 78xx voltage regulator family

• Input voltage range: typically 7V to 35V DC

• Output current: up to 1A (with proper heat sinking)

• Standard TO-220 package

• Built-in thermal overload protection

• Short-circuit protection

• Stable voltage regulation

• Low cost and easy to use

• Requires minimal external components

• Suitable for PCB mounting

• Reliable performance for electronic circuits

Applications

• Arduino power supply circuits

• Microcontroller power regulation

• Sensor and module power supply

• Embedded systems

• Robotics projects

• IoT devices

• Battery-powered electronics

• Communication circuits

• Control systems

• Audio and electronic circuits

• Educational electronics projects

• DIY electronics and prototyping
