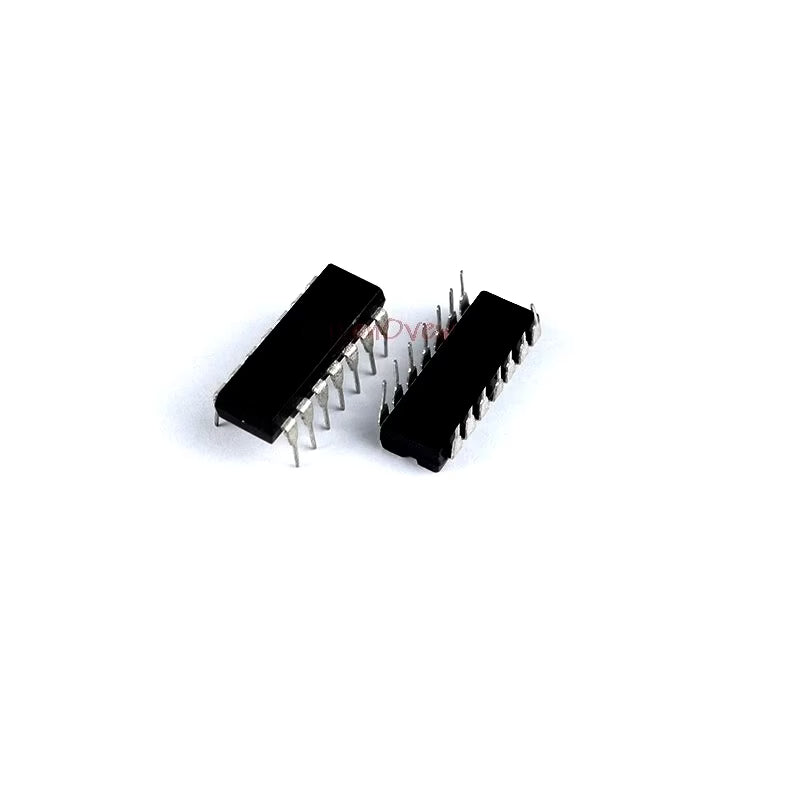

74LS85 4-Bit Magnitude Comparator IC (7485 IC) DIP-16 Package

The 74LS85 is a high-speed 4-bit Magnitude Comparator IC designed to compare two 4-bit binary or BCD numbers and determine their relative values. It compares two parallel 4-bit inputs, A0–A3 and B0–B3, where A3 and B3 are the most significant bits (MSBs). The IC provides three comparison outputs indicating whether A is greater than B (A>B), A is less than B (A<B), or A is equal to B (A=B).

The 74LS85 is not limited to binary data and can also compare other monotonic codes such as BCD, making it suitable for a wide variety of digital logic applications. It includes three cascade (expander) inputs that allow multiple comparator ICs to be connected together for comparing numbers larger than 4 bits without requiring additional external logic gates. This makes it ideal for building high-bit-width comparison circuits in digital systems.

Built using Low-Power Schottky TTL (LS TTL) technology, the 74LS85 delivers fast switching performance, low power consumption, and reliable operation. It operates from a standard 5V power supply and is fully compatible with TTL logic families, making it suitable for industrial equipment, embedded systems, digital instrumentation, automation, and educational electronics projects.

Features

• 4-bit magnitude comparator IC.

• Compares two 4-bit parallel inputs.

• Provides three outputs: A>B, A<B, and A=B.

• Supports binary and BCD number comparison.

• Cascade inputs for expanding to compare larger binary words.

• High-speed Low-Power Schottky TTL (LS TTL) technology.

• Fast and reliable comparison operation.

• Standard 5V operating voltage.

• TTL compatible.

• Available in a 16-pin DIP package.

• Suitable for digital logic and sequential control systems.

Applications

• Digital comparison circuits

• Binary number comparison

• BCD comparison systems

• Microprocessor and microcontroller interfaces

• Digital instrumentation

• Industrial automation

• Data sorting and decision-making circuits

• Arithmetic Logic Units (ALUs)

• Embedded systems

• Robotics and automation projects

• Educational digital electronics experiments

• General-purpose digital logic applications
