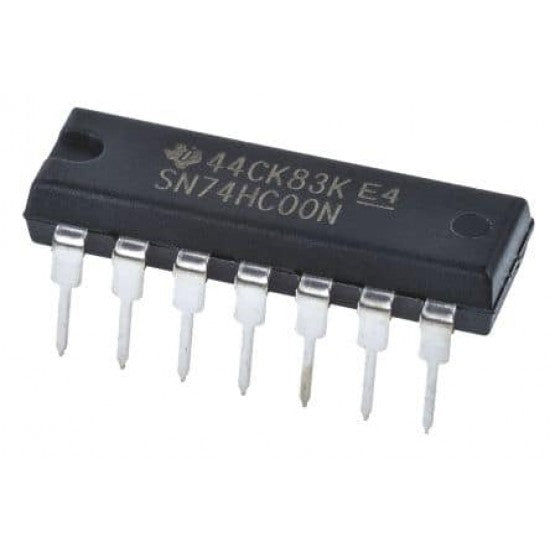

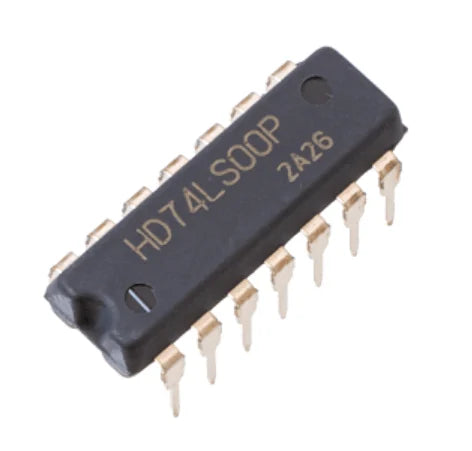

7400 Quad 2-Input NAND Gate IC (DIP-14 Package)

The 7400 IC is a fundamental digital logic integrated circuit that contains four independent 2-input NAND gates in a single 14-pin package. Each gate performs the NAND operation, where the output is LOW only when both inputs are HIGH; otherwise, the output remains HIGH. Because NAND gates are universal logic gates, the 7400 IC is widely used as a building block for creating various digital logic circuits.

The IC operates on standard TTL logic levels, typically with a +5V power supply, and is known for its reliable high-speed switching performance. It is widely used in both simple and complex digital systems due to its versatility, stability, and ease of use. Its compact DIP-14 package makes it suitable for breadboards, prototyping, and PCB designs.

The 7400 NAND gate IC is commonly used in arithmetic logic units (ALUs), control systems, signal processing circuits, memory addressing, and general digital logic design. It is also widely used in educational electronics for learning basic logic gate operations and digital circuit construction.

With low power consumption, fast response time, and strong compatibility with other TTL logic devices, the 7400 IC remains one of the most important and widely used components in digital electronics.

Features

• Four independent 2-input NAND gates

• Standard TTL logic family (5V operation)

• High-speed switching performance

• Low power consumption

• Compact 14-pin DIP package

• Universal logic gate (can build all logic functions)

• Wide usage in digital systems

• Reliable and stable operation

• Easy to use in breadboards and circuits

• Suitable for beginners and professionals

Applications

• Digital logic circuit design

• Arithmetic Logic Units (ALUs)

• Signal inversion and processing

• Control logic systems

• Memory address decoding

• Embedded systems

• Educational electronics projects

• Industrial automation systems

• Microcontroller interfacing

• General-purpose digital electronics
