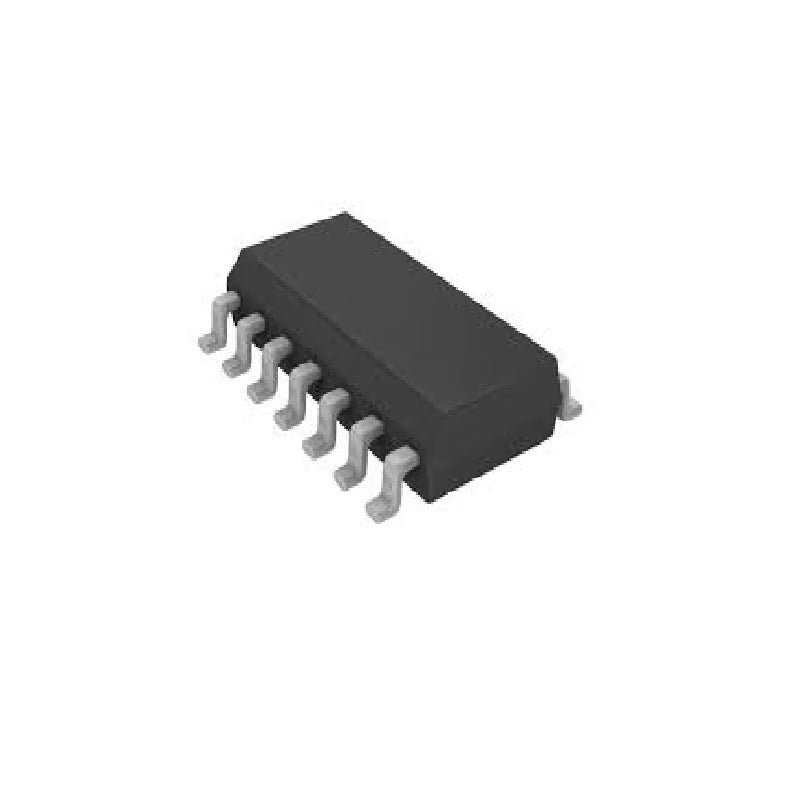

74HC86 Quad 2-Input EXOR Gate 14-Pin SMD IC

The 74HC86 is a high-speed CMOS Quad 2-Input Exclusive-OR (EXOR/XOR) Gate IC designed for reliable digital logic applications. It contains four independent 2-input XOR gates in a compact 14-pin SMD package. Manufactured using advanced silicon-gate CMOS technology, it delivers high-speed performance comparable to Schottky TTL logic while maintaining very low power consumption.

The IC features a three-stage internal circuit with buffered outputs, providing excellent noise immunity, stable switching performance, and reliable operation. Its inputs can tolerate voltages up to 7V, making it suitable for interfacing between 5V and 3V logic systems. The 74HC86 is widely used in digital electronics for arithmetic and logic circuits, logic comparators, parity generation, error detection circuits, signal processing, and true/complement logic functions.

Features

• High-speed CMOS performance with low power consumption.

• Four independent 2-input Exclusive-OR (XOR) gates.

• High noise immunity with VNIH = VNIL = 28% of VCC.

• Input voltage tolerance up to 7V.

• Built-in power-down protection on inputs.

• Balanced propagation delays for consistent performance.

• Designed for operation over a 2V to 6V supply voltage range.

• Low output noise with VOLP = 0.8V (maximum).

• Buffered outputs for stable and reliable operation.

• Pin and function compatible with standard logic families.

• Compact 14-pin SMD package suitable for space-saving PCB designs.

Applications

• Arithmetic Logic Units (ALUs)

• Digital logic circuits

• Computational logic comparators

• Parity generation and error detection circuits

• Data processing and signal conditioning

• True/complement logic generation

• Industrial control systems

• Embedded systems and microcontroller interfaces

• Consumer electronic devices

• Educational and prototyping projects
