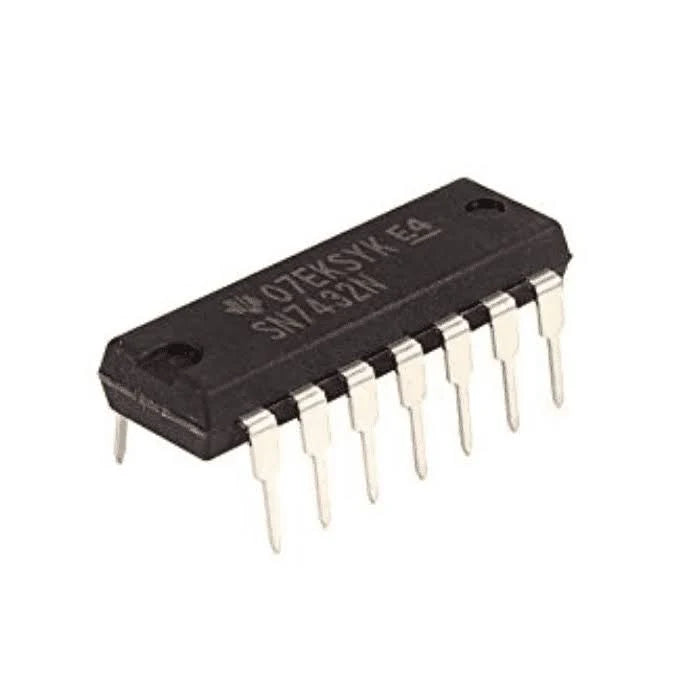

74HC32 Quad 2-Input OR Gate IC (7432 IC) – DIP-14 Package

The 74HC32 Quad 2-Input OR Gate IC (7432 IC) is a high-speed CMOS digital logic integrated circuit that contains four independent 2-input OR gates in a standard 14-pin DIP package. It is designed to perform OR logic operations, where the output becomes HIGH if one or both inputs are HIGH. Combining fast switching speed with low power consumption, the 74HC32 is widely used in digital logic circuits, embedded systems, industrial electronics, and educational projects.

Built using advanced silicon-gate CMOS technology, the 74HC32 delivers high-speed performance comparable to LS-TTL logic while maintaining the low power consumption characteristic of CMOS devices. It operates over a wide supply voltage range of 2V to 6V, making it compatible with both 3.3V and 5V digital systems. The IC is also functionally and pin compatible with the standard 74LS32 logic family, allowing easy integration into existing digital designs.

Each of the four OR gates features buffered outputs that provide high noise immunity and can directly interface with CMOS, NMOS, and TTL logic families. The device incorporates Schmitt trigger action on all inputs, improving noise tolerance and ensuring stable switching even with slowly changing input signals. Additionally, the inputs support current-limiting resistor interfacing, allowing safe operation with input voltages that exceed the supply voltage (within specified limits).

The 74HC32 Quad 2-Input OR Gate IC is commonly used in digital logic design, signal processing, microcontroller-based systems, Arduino, ESP32, Raspberry Pi projects, robotics, industrial automation, communication equipment, and educational electronics. Its reliable operation, low power consumption, and versatile compatibility make it an essential component for a wide range of digital applications.

Features

• Four independent 2-input OR gates

• Standard 14-pin DIP package

• High-speed CMOS technology

• Wide operating voltage range: 2V to 6V

• Low power consumption

• Buffered outputs with high noise immunity

• Direct interface with CMOS, NMOS, and TTL logic

• Schmitt trigger action on all inputs

• Fast switching performance

• Pin compatible with the 74LS32 logic family

• Reliable and stable digital operation

Applications

• Digital logic circuits

• Logic gate implementation

• Signal processing systems

• Embedded systems

• Arduino projects

• ESP32 and Raspberry Pi projects

• Robotics and automation

• Industrial control systems

• Educational electronics laboratories

• DIY digital electronics projects
