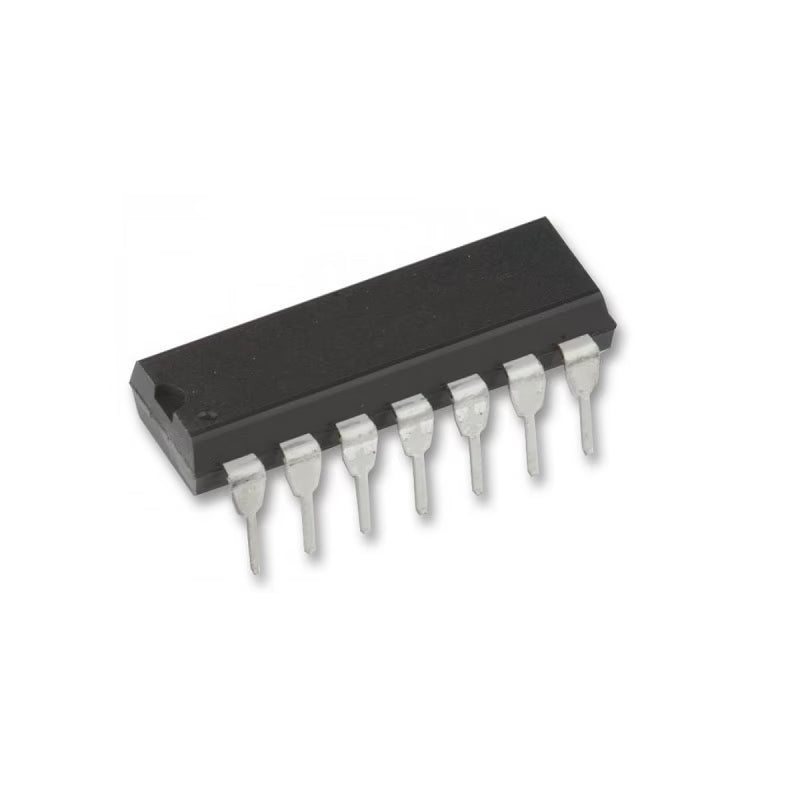

74HC32 Quad 2-Input OR Gate IC (7432 IC) DIP-14 Package

The 74HC32 is a high-speed CMOS Quad 2-Input OR Gate integrated circuit designed for a wide range of digital logic applications. It contains four independent 2-input OR gates in a standard 14-pin DIP package, allowing multiple logic functions to be implemented within a single IC. Each OR gate produces a HIGH output when one or both of its inputs are HIGH, and a LOW output only when both inputs are LOW.

Built using advanced CMOS technology, the 74HC32 combines high-speed switching performance with low power consumption, making it an excellent choice for modern digital systems. It operates over a wide supply voltage range of 2V to 6V, providing compatibility with both battery-powered and standard electronic circuits. The IC features push-pull outputs for reliable signal driving, high noise immunity, and stable operation in demanding applications.

The 74HC32 offers a typical propagation delay of approximately 23 ns, enabling fast and accurate logic processing. It provides sufficient output drive capability for interfacing with CMOS and TTL-compatible logic circuits. Designed for reliable operation over a wide temperature range of –55°C to +125°C, the IC is suitable for industrial, commercial, and harsh-environment applications.

The 74HC32 is widely used in digital logic circuits, embedded systems, industrial automation, communication equipment, signal processing, robotics, and educational electronics projects where dependable OR logic functions are required.

Features

• Four independent 2-input OR gates.

• High-speed CMOS technology.

• Standard push-pull outputs.

• Wide operating voltage range of 2V to 6V.

• Low power consumption.

• High noise immunity.

• Typical propagation delay of 23 ns.

• CMOS and TTL logic compatible.

• Reliable output drive capability.

• Wide operating temperature range of –55°C to +125°C.

• Compact 14-pin DIP package.

• Suitable for high-speed digital logic applications.

Applications

• Digital logic circuits

• Combinational logic design

• Embedded systems

• Signal processing circuits

• Industrial automation

• Robotics projects

• Communication equipment

• Microcontroller interface circuits

• Digital control systems

• Consumer electronics

• Educational and laboratory projects

• General-purpose digital circuit design
