74HC20 – Dual 4-Input NAND Gate IC

The 74HC20 – Dual 4-Input NAND Gate IC is a high-speed CMOS digital logic integrated circuit that contains two independent 4-input NAND gates in a single package. Designed using advanced CMOS technology, it combines high-speed switching performance, low power consumption, and high noise immunity, making it suitable for a wide range of digital logic and embedded system applications.

Each NAND gate performs the logical NOT-AND operation, producing a LOW output only when all four inputs are HIGH. For all other input combinations, the output remains HIGH. This functionality makes the 74HC20 ideal for implementing complex logic functions, signal inversion, digital control circuits, and logic decision-making in electronic systems.

The IC operates over a wide supply voltage range of 2V to 6V, allowing compatibility with both CMOS and TTL logic families. Buffered outputs provide reliable signal drive capability, while the inputs are protected against electrostatic discharge (ESD) by internal protection diodes, improving durability and long-term reliability.

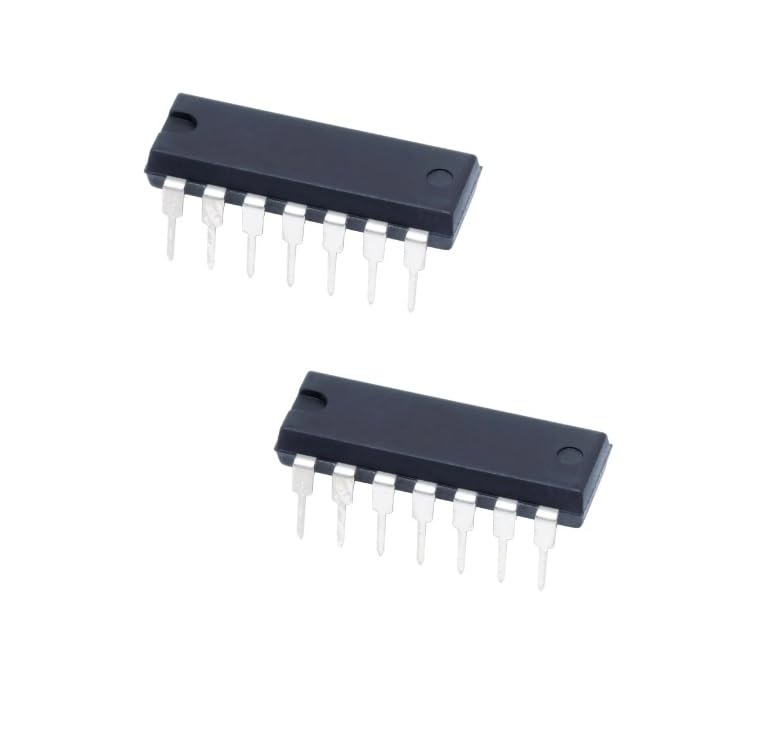

The 74HC20 is commonly available in DIP-14 for through-hole applications and SOIC-14 for surface-mount designs, making it suitable for breadboard prototyping as well as compact PCB assemblies.

The 74HC20 – Dual 4-Input NAND Gate IC is widely used in digital logic circuits, embedded systems, industrial automation, communication equipment, Arduino projects, ESP32 applications, Raspberry Pi interfacing, robotics, educational laboratories, and DIY electronics projects.

Features

• Two independent 4-input NAND gates

• High-speed CMOS logic design

• Low power consumption

• High noise immunity

• Wide operating voltage range: 2V to 6V

• Buffered outputs for reliable signal drive

• High-speed switching performance

• CMOS and TTL logic compatible

• Internal ESD protection on all inputs

• Available in DIP-14 and SOIC-14 packages

• Reliable operation over a wide temperature range

Applications

• Digital logic circuits

• Logic gate implementation

• Signal processing and inversion

• Embedded systems

• Industrial automation

• Communication systems

• Arduino and ESP32 projects

• Raspberry Pi interfacing

• Robotics and automation

• Timing and control circuits

• Educational electronics laboratories

• Digital control systems

• Test and measurement equipment

• DIY electronics projects

• General-purpose logic design
