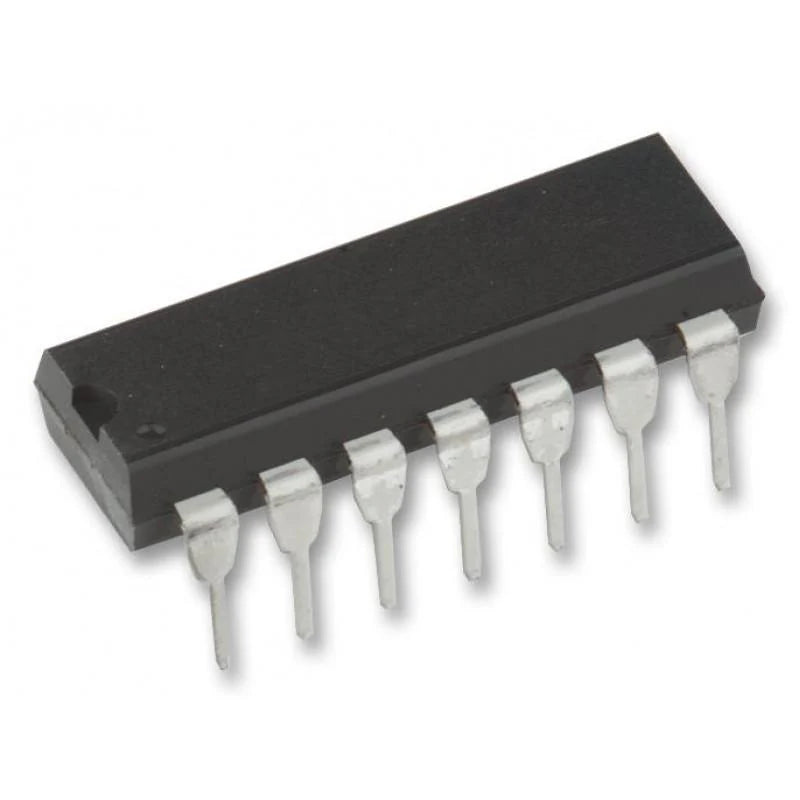

74HC20 Dual 4-Input NAND Gate IC – DIP-14 Package

The 74HC20 Dual 4-Input NAND Gate IC is a high-speed CMOS digital logic integrated circuit that contains two independent 4-input NAND gates in a standard 14-pin DIP package. Each gate performs the NAND logic function, producing a LOW output only when all four inputs are HIGH; otherwise, the output remains HIGH. This IC is widely used in digital logic circuits, control systems, embedded applications, and electronic projects requiring multiple-input logic operations.

Built using advanced silicon-gate CMOS technology, the 74HC20 delivers high-speed performance comparable to LS-TTL logic while maintaining the low power consumption characteristic of CMOS devices. It operates over a wide supply voltage range of 2V to 6V, making it suitable for both 3.3V and 5V digital systems. The device is functionally and pin compatible with the standard 74LS20 logic family, allowing easy integration into existing digital designs.

The 74HC20 features buffered outputs that provide excellent noise immunity and sufficient drive capability for interfacing with multiple TTL logic inputs. Each input is protected by internal diode clamps connected to VCC and GND, offering protection against electrostatic discharge (ESD) and improving overall device reliability. These features ensure stable and dependable operation even in electrically noisy environments.

The 74HC20 Dual 4-Input NAND Gate IC is commonly used in digital logic design, signal processing, embedded systems, Arduino, ESP32, Raspberry Pi (through suitable logic-level interfacing), robotics, industrial automation, communication equipment, educational laboratories, and DIY electronics projects. Its high-speed operation, low power consumption, and reliable performance make it an essential component for modern digital electronic circuits.

Features

• Two independent 4-input NAND gates

• Standard 14-pin DIP package

• High-speed CMOS technology

• Wide operating voltage range: 2V to 6V DC

• Low power consumption

• Buffered outputs for reliable operation

• High noise immunity

• Internal ESD protection using diode clamps

• Fast switching performance

• TTL-compatible and pin compatible with the 74LS20 logic family

• Reliable and stable digital operation

Applications

• Digital logic circuits

• Logic gate implementation

• Embedded systems

• Arduino projects

• ESP32 and Raspberry Pi projects

• Robotics and automation

• Industrial control systems

• Signal processing circuits

• Communication equipment

• Educational electronics laboratories

• DIY digital electronics projects
