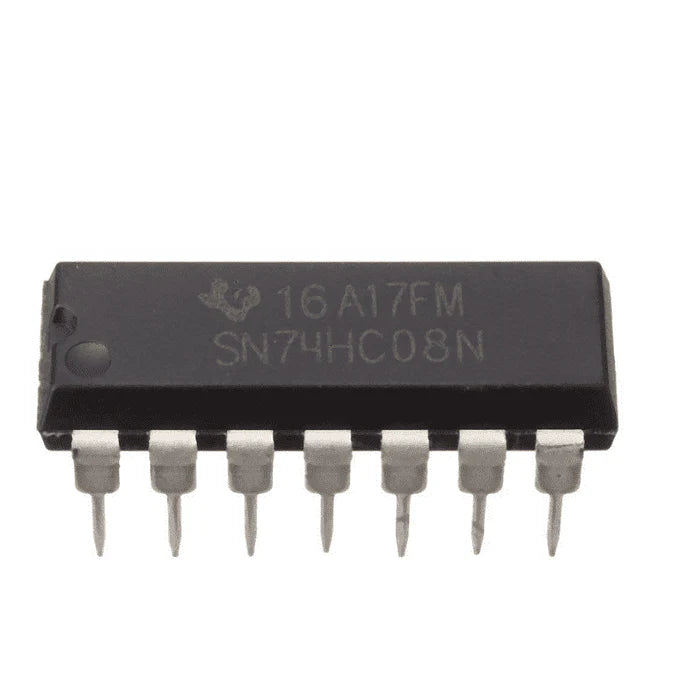

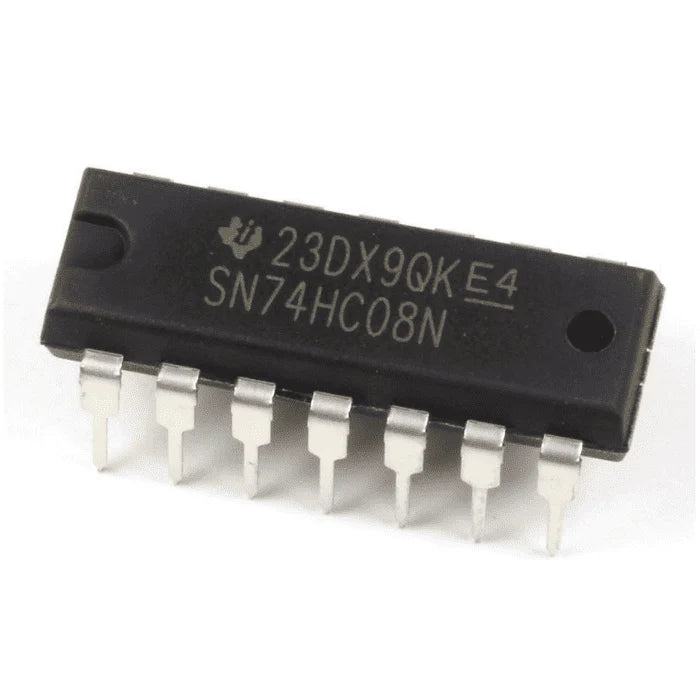

74HC08 Quad 2-Input AND Gate IC (DIP-14 Package)

The 74HC08 is a high-speed CMOS Quad 2-Input AND Gate integrated circuit that contains four independent AND gates in a standard 14-pin DIP package. Each gate performs the logical AND operation, producing a HIGH output only when both input signals are HIGH. This IC is widely used in digital logic circuits, embedded systems, automation, and educational electronics projects.

Manufactured using advanced silicon-gate CMOS technology, the 74HC08 delivers high-speed performance comparable to LS-TTL logic devices while maintaining the low power consumption characteristic of CMOS circuits. It operates over a wide supply voltage range of 2.0V to 6.0V, making it suitable for both 3.3V and 5V digital systems.

The IC features buffered push-pull outputs, providing excellent noise immunity and reliable signal integrity. Its outputs can drive up to 10 LS-TTL loads, allowing easy interfacing with other TTL-compatible logic devices. The 74HC08 is fully functionally and pin compatible with the standard 74LS08 logic family, making it a convenient replacement in many digital circuit designs.

For improved reliability, all input pins include internal diode clamps connected to VCC and ground, protecting the device against electrostatic discharge (ESD) and voltage transients during handling and operation.

The 74HC08 is commonly used in digital control systems, logic processing, signal gating, embedded applications, microcontroller interfacing, industrial automation, and educational electronics where reliable AND logic operations are required.

Features

• Four independent 2-input AND gates

• High-speed CMOS technology

• Standard 14-pin DIP package

• Operating voltage range: 2.0V to 6.0V

• Low power consumption

• Buffered push-pull outputs

• High noise immunity

• Drives up to 10 LS-TTL loads

• Functionally and pin compatible with 74LS08

• Internal ESD protection with diode clamps

• Reliable and stable digital logic performance

Applications

• Digital logic circuits

• Logic gating applications

• Embedded systems

• Microcontroller interfacing

• Industrial automation

• Signal processing circuits

• Robotics projects

• Control systems

• Educational electronics experiments

• General-purpose digital electronics
