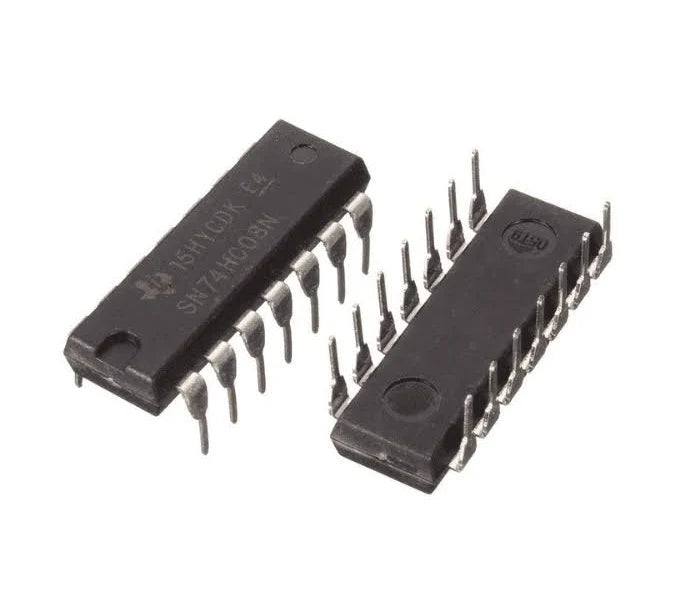

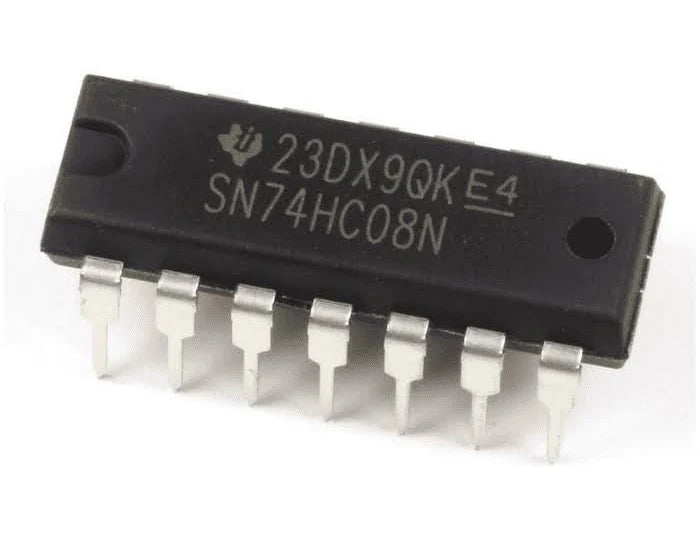

74HC08 - Quad 2-Input AND Gate IC

The 74HC08 is a high-speed CMOS Quad 2-Input AND Gate integrated circuit designed for digital logic and control applications. It contains four independent 2-input AND gates in a compact 14-pin SMD package, allowing multiple logic operations to be performed within a single IC. Each gate produces a HIGH output only when both of its inputs are HIGH; otherwise, the output remains LOW.

Built using advanced silicon-gate CMOS technology, the 74HC08 delivers high-speed performance comparable to LS-TTL logic while maintaining the low power consumption characteristic of CMOS devices. The IC operates over a wide supply voltage range of 2V to 6V, making it suitable for both battery-powered and standard digital systems.

The device features buffered push-pull outputs that provide high noise immunity, stable switching performance, and the ability to drive up to 10 LS-TTL loads. It is functionally and pin compatible with the standard 74LS08 logic family, making it an ideal replacement in many digital circuits. Additionally, all input pins are protected by internal diode clamps against electrostatic discharge (ESD), improving the reliability and durability of the device.

The 74HC08 is widely used in digital logic circuits, embedded systems, signal processing, industrial automation, communication equipment, and educational electronics projects where reliable AND logic functions are required.

Features

• Four independent 2-input AND gates.

• High-speed CMOS technology.

• Standard push-pull outputs.

• Wide operating voltage range of 2V to 6V.

• Low power consumption.

• High noise immunity.

• Buffered outputs capable of driving up to 10 LS-TTL loads.

• Pin and function compatible with the 74LS08 logic family.

• Internal ESD protection on all input pins.

• Reliable high-speed switching performance.

• Compact 14-pin SMD package for space-saving PCB designs.

Applications

• Digital logic circuits

• Combinational logic design

• Embedded systems

• Signal processing circuits

• Logic control systems

• Industrial automation

• Robotics projects

• Microcontroller interface circuits

• Communication equipment

• Consumer electronics

• Educational and laboratory projects

• General-purpose digital circuit design
