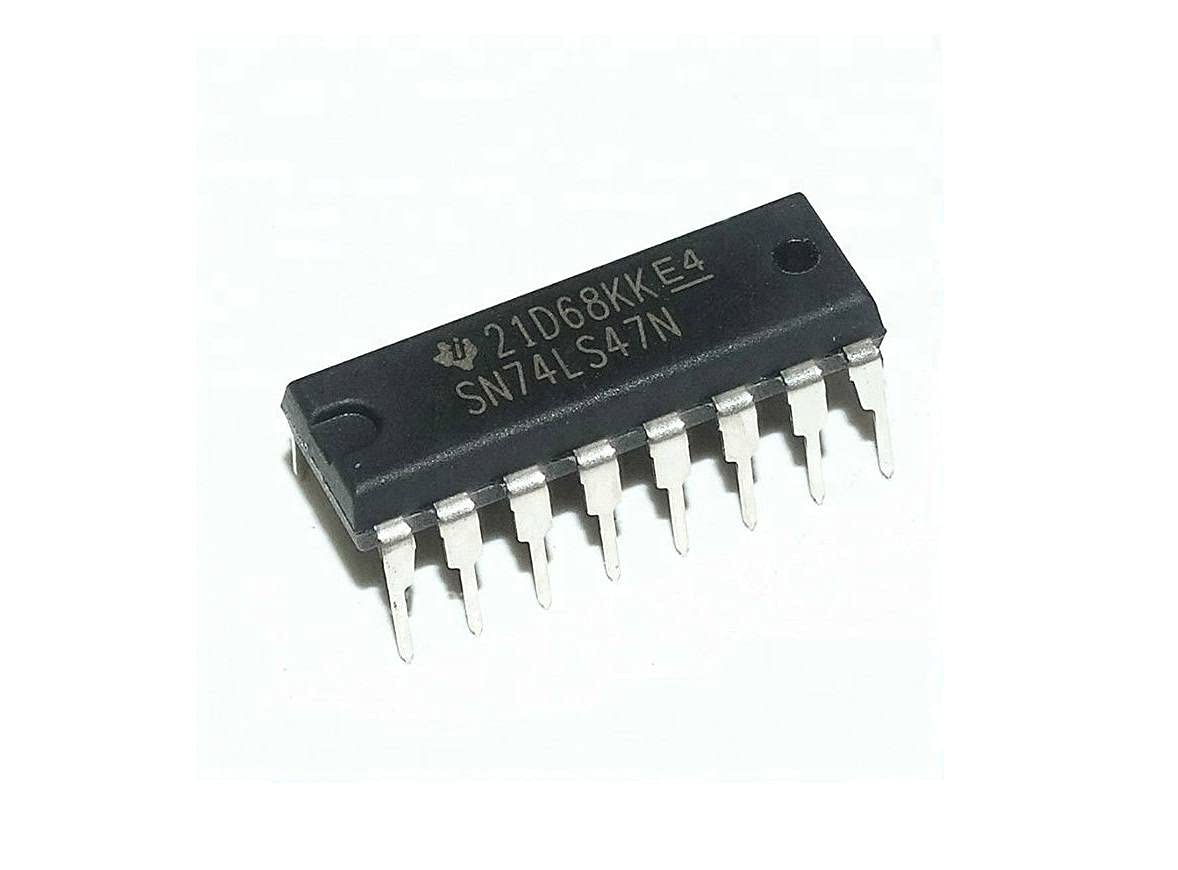

7447 DIP IC

The 7447 DIP IC is a BCD (Binary-Coded Decimal) to 7-Segment Decoder/Driver integrated circuit designed to convert a 4-bit BCD input into the appropriate output signals required to drive a common-anode 7-segment LED display. It is part of the popular 74xx TTL logic family and is widely used in digital display systems, counters, clocks, calculators, measuring instruments, and embedded electronic projects. The IC accepts a 4-bit binary-coded decimal input (0–9) and automatically generates the correct output pattern to display the corresponding decimal digit on a 7-segment display.

The 7447 operates from a standard 5V DC power supply and is supplied in a 16-pin Dual In-line Package (DIP), making it suitable for through-hole mounting on breadboards, prototype boards, and printed circuit boards (PCBs). It features active-low, open-collector outputs, specifically designed to drive common-anode LED displays. Because the outputs are open collector, external current-limiting resistors are typically required when connecting the display segments.

In addition to basic BCD decoding, the 7447 IC includes several useful control inputs such as Lamp Test (LT), Ripple Blanking Input (RBI), and Ripple Blanking Output (RBO). These features allow display testing and suppression of leading zeros in multi-digit display systems, making the IC suitable for professional digital display applications.

The 7447 DIP IC is widely used in digital clocks, frequency counters, voltmeters, calculators, industrial control panels, educational laboratories, electronic instrumentation, and various embedded systems requiring numeric display. It is an excellent component for students, hobbyists, technicians, and engineers learning or designing TTL-based digital circuits.

Features

• Model: 7447

• Type: BCD to 7-Segment Decoder/Driver IC

• TTL Logic Family

• 4-bit BCD input

• Drives common-anode 7-segment LED displays

• Open-collector active-low outputs

• Operating Voltage: 5V DC

• 16-pin DIP (Through-Hole) package

• Built-in Lamp Test (LT) function

• Ripple Blanking Input (RBI)

• Ripple Blanking Output (RBO)

• High-speed TTL operation

• Easy PCB and breadboard mounting

Applications

• Digital clocks

• Digital counters

• Frequency counters

• Electronic calculators

• Digital voltmeters

• Digital panel meters

• Numeric display systems

• Industrial control panels

• Embedded systems

• Arduino learning projects

• Educational digital electronics experiments

• Electronic instrumentation

• Logic circuit prototyping

• DIY electronics projects
