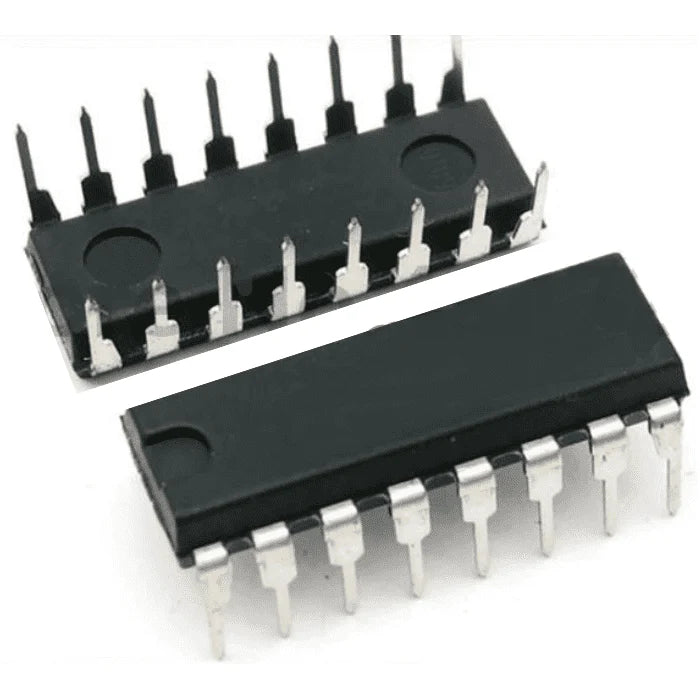

74169 4-Bit Synchronous Up/Down Binary Counter IC – DIP-16 Package

The 74169 4-Bit Synchronous Up/Down Binary Counter IC is a high-speed TTL digital logic integrated circuit designed to perform 4-bit synchronous binary counting in both upward and downward directions. Housed in a standard 16-pin DIP package, the IC features synchronous counting, parallel data loading, and programmable counting direction, making it suitable for a wide range of digital counting and control applications.

Unlike ripple counters, the 74169 uses synchronous clocking, where all internal flip-flops are triggered simultaneously by the clock signal. This eliminates ripple delays, resulting in faster operation, improved timing accuracy, and more reliable performance in high-speed digital systems. The counting direction is selected through the Up/Down control input, allowing the counter to either increment or decrement its binary count with each clock pulse.

The IC also includes a parallel load function, enabling a 4-bit binary value to be loaded directly into the counter through dedicated data inputs. This feature is particularly useful in programmable counters, preset timers, digital controllers, and sequence generation applications. Additionally, the carry (terminal count) output allows multiple 74169 counters to be cascaded together for creating higher-bit synchronous counting systems.

Operating from a standard 5V TTL power supply, the 74169 provides fast switching speed, low propagation delay, and reliable performance. It is fully compatible with TTL logic families and can be easily integrated into digital circuits, microprocessor interfaces, embedded systems, and industrial control equipment.

The 74169 4-Bit Synchronous Up/Down Binary Counter IC is widely used in digital counters, programmable timers, frequency dividers, event counters, embedded systems, robotics, industrial automation, educational laboratories, and DIY electronics projects where precise and high-speed binary counting is required.

Features

• 4-bit synchronous binary up/down counter

• Standard 16-pin DIP package

• Synchronous clock operation for high-speed performance

• Up and Down counting modes

• Parallel data load capability

• Carry (terminal count) output for cascading counters

• TTL-compatible logic levels

• Fast switching speed with low propagation delay

• Operates from a standard 5V DC supply

• Reliable and stable digital operation

• Easy integration with digital logic circuits

Applications

• Digital counters

• Programmable timers

• Frequency divider circuits

• Event counting systems

• Embedded systems

• Microprocessor and microcontroller interfaces

• Robotics and automation

• Industrial control systems

• Digital instrumentation

• Educational electronics laboratories

• DIY digital electronics projects
