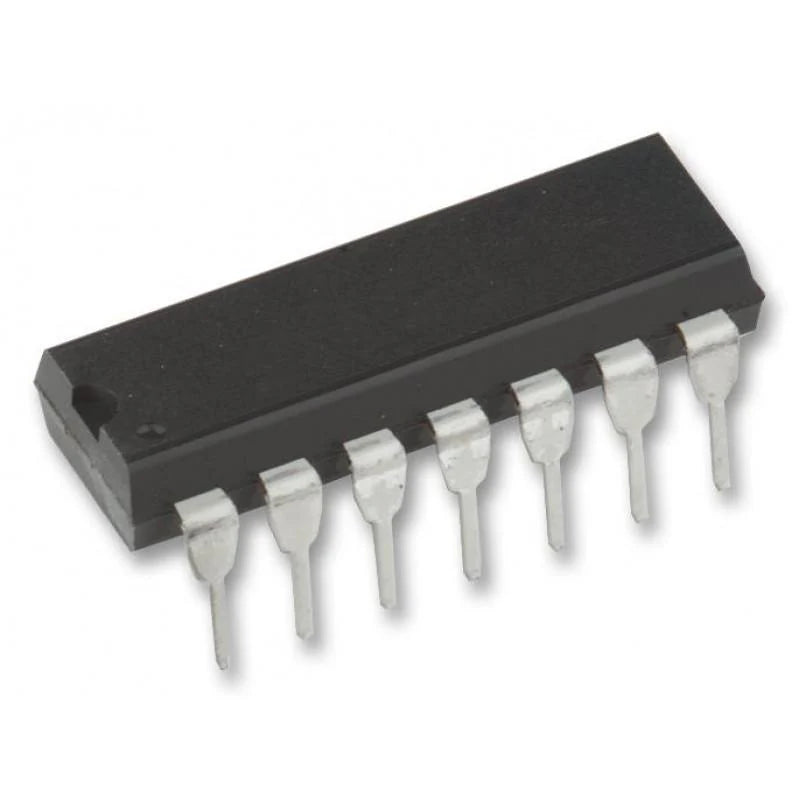

74HC02 Quad 2-Input NOR Gate IC (7402 IC) SMD/DIP-14 Package

The 74HC02 is a high-speed CMOS Quad 2-Input NOR Gate integrated circuit, commonly referred to as the 7402 IC. It contains four independent NOR gates in a single 14-pin package. Each gate performs the NOR logic function, where the output is HIGH only when both inputs are LOW; otherwise, the output remains LOW.

The IC is built using advanced silicon-gate CMOS technology, which provides high-speed operation comparable to LS-TTL logic while maintaining the low power consumption typical of CMOS devices. This makes it suitable for modern digital systems that require both speed and energy efficiency.

All gates in the 74HC02 feature buffered outputs, which enhance noise immunity and improve signal stability. The outputs are also capable of driving up to 10 LS-TTL loads, making the IC compatible with a wide range of digital logic families. The device is functionally and pin-compatible with standard 74LS series logic ICs, allowing easy replacement in existing circuits.

To improve reliability, all inputs are protected against electrostatic discharge (ESD) using internal diode clamps connected to VCC and ground. This helps prevent damage during handling and circuit assembly.

The 74HC02 (7402 IC) is widely used in digital logic circuits, embedded systems, signal processing, control systems, and educational electronics projects where NOR logic functions are required.

Features

• Four independent 2-input NOR gates

• High-speed CMOS technology

• Low power consumption

• Buffered outputs for high noise immunity

• Drives up to 10 LS-TTL loads

• Wide operating voltage range (typically 2V to 6V)

• Pin and function compatible with 74LS logic family

• Internal ESD protection (diode clamps to VCC and GND)

• Fast switching performance

• Standard 14-pin package

Applications

• Digital logic circuits

• Combinational logic design

• Embedded systems

• Control systems

• Signal processing circuits

• Industrial automation

• Robotics projects

• Microcontroller interfacing

• Educational electronics experiments

• General-purpose logic design
