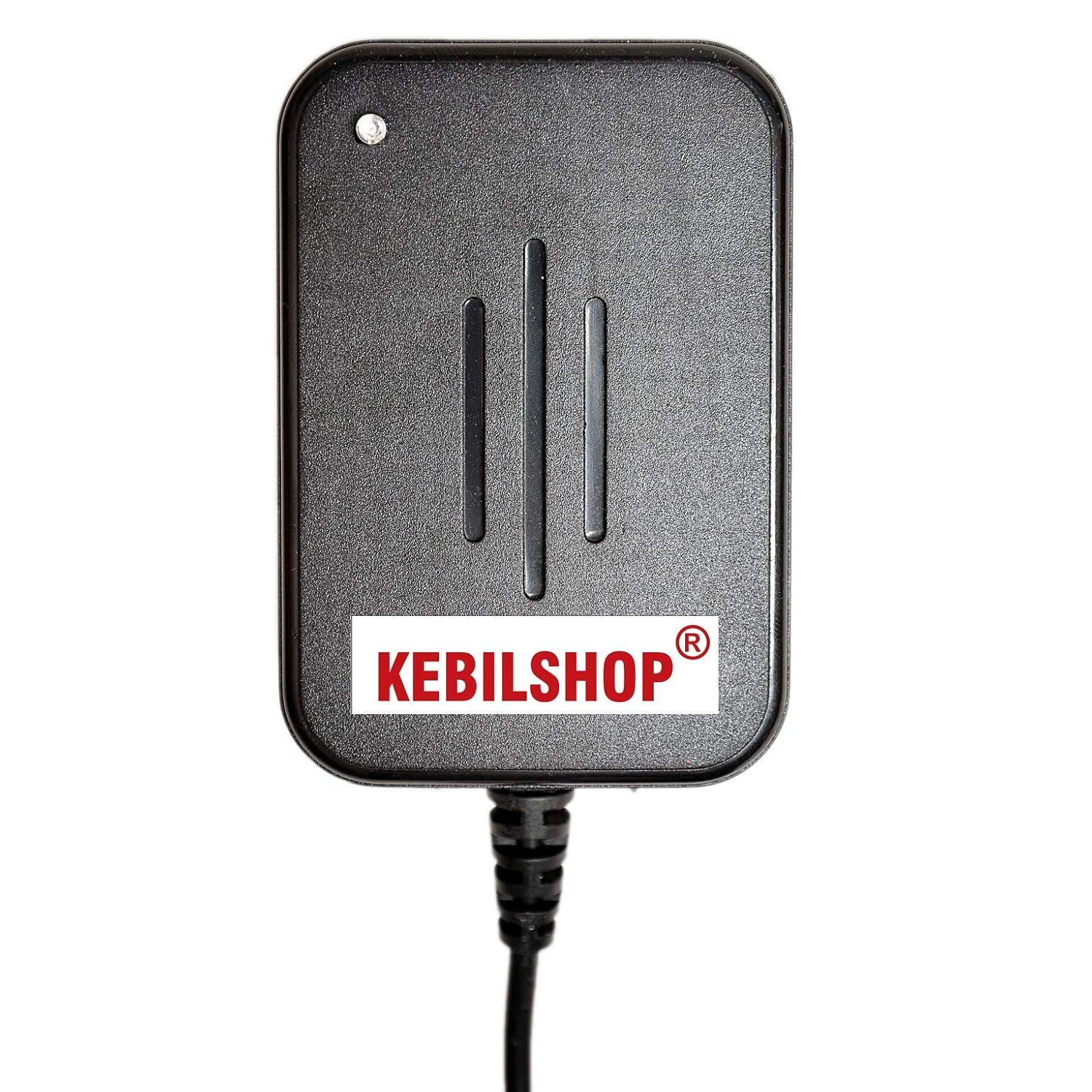

6 Volt 1 Amp Power Adapter

The 6 Volt 1 Amp Power Adapter is an AC-to-DC power supply designed to convert standard household AC mains electricity into a stable 6V DC output with a maximum current capacity of 1 Ampere (1000mA). It is commonly used to power a wide range of low-voltage electronic devices, development boards, communication equipment, LED products, and DIY electronics projects.

This adapter contains an internal switching or regulated power supply circuit that converts high-voltage AC input into a low-voltage, regulated DC output. It provides a reliable and continuous source of power, eliminating the need for batteries in many electronic applications.

Specifications

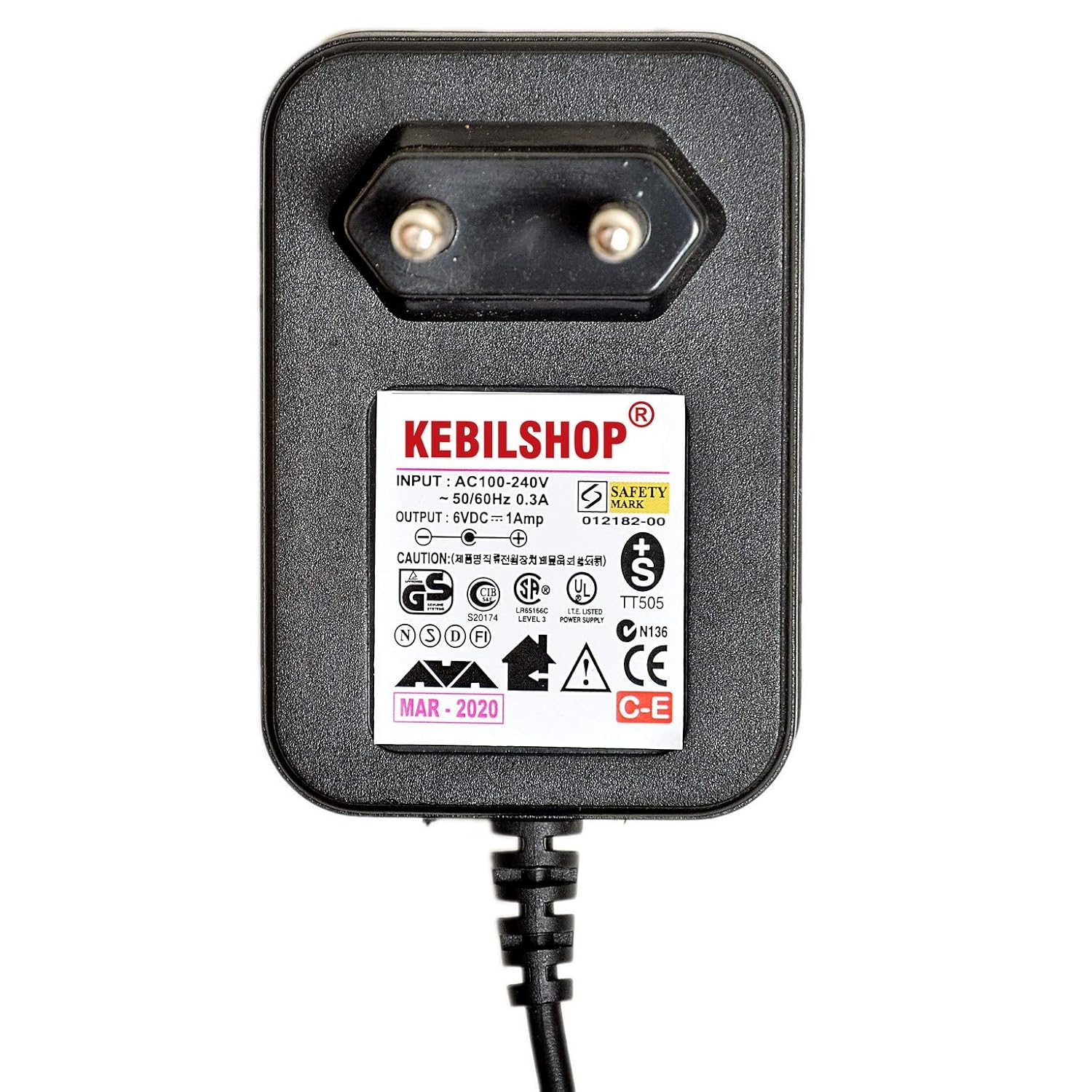

• Input Voltage: 100–240V AC, 50/60Hz (varies by model)

• Output Voltage: 6V DC

• Maximum Output Current: 1A (1000mA)

• Maximum Output Power: 6 Watts

• Power Supply Type: Regulated AC to DC Adapter

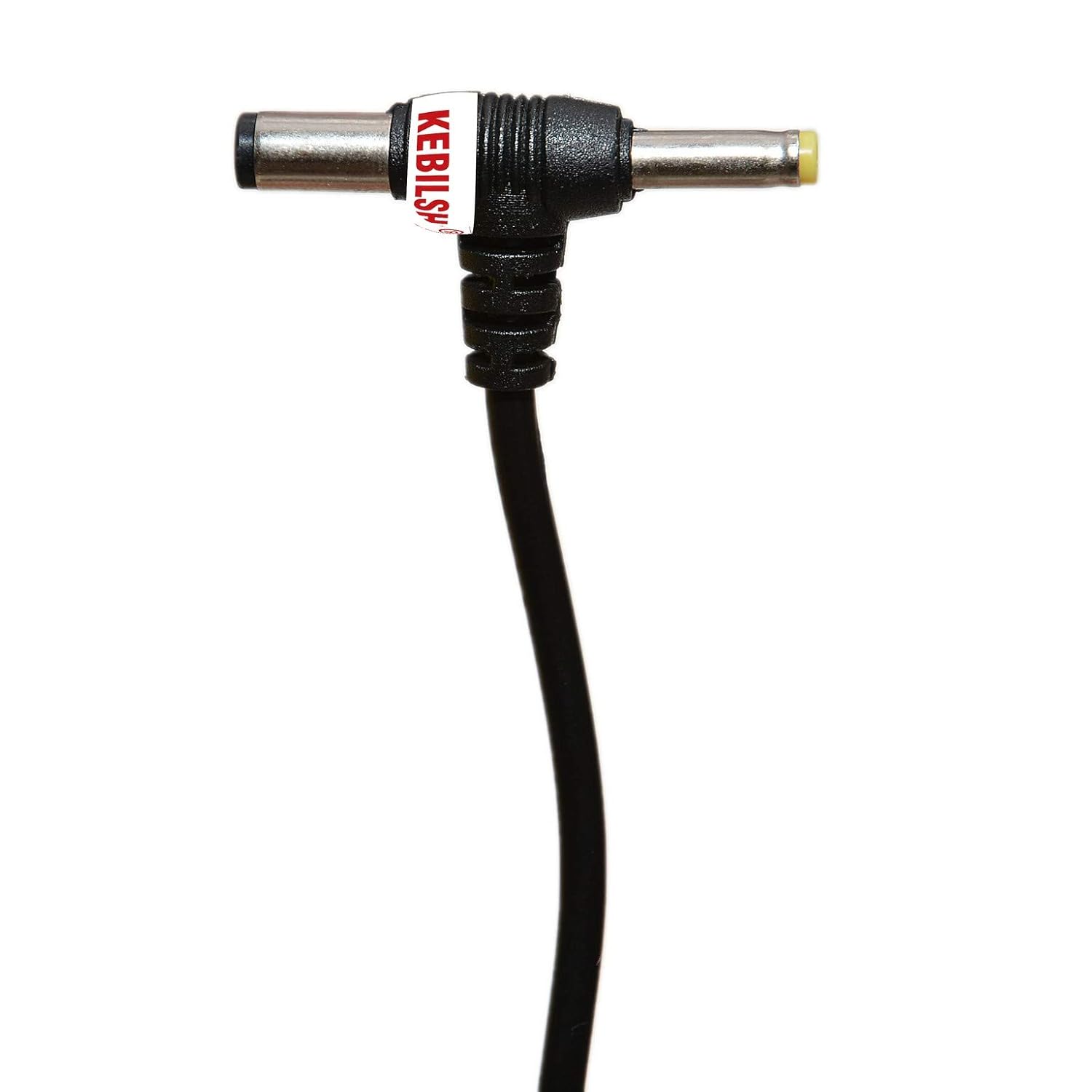

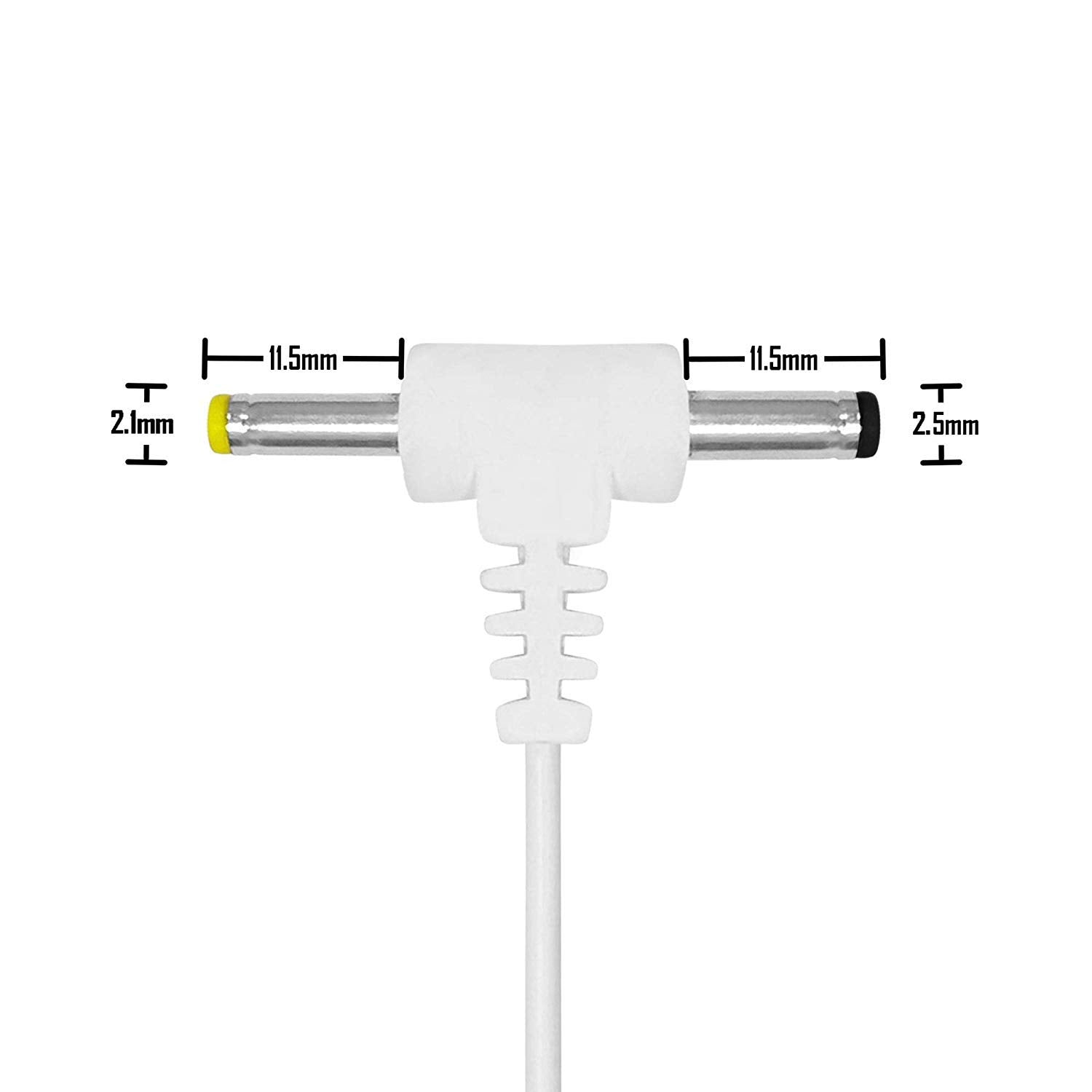

• Output Connector: DC Barrel Plug (size may vary by model)

• Polarity: Usually Center Positive (verify before use)

• Housing Material: High-quality ABS Plastic

• Protection Features: Overload, Overvoltage, Short Circuit, and Overcurrent Protection (model dependent)

Working Principle

The adapter converts AC mains voltage into a stable DC voltage through several stages:

1. AC Input: Receives high-voltage AC power from a wall outlet.

2. Rectification: Converts AC into DC using a rectifier circuit.

3. Filtering: Smooths the DC output using capacitors to reduce voltage ripple.

4. Voltage Regulation: Maintains a constant 6V DC output even if the input voltage or load changes within the specified operating range.

5. Power Delivery: Supplies up to 1 Amp of current to the connected device. The connected device only draws the current it requires, up to the adapter's maximum rating.

Features

• Stable regulated 6V DC output

• Maximum current output of 1A (1000mA)

• Wide AC input voltage range (100–240V AC)

• Compact and lightweight design

• Energy-efficient operation

• Reliable and continuous power supply

• Built-in safety protection (depending on model)

• Easy plug-and-play installation

Applications

The 6 Volt 1 Amp Power Adapter is commonly used for:

• Arduino and microcontroller projects

• Embedded systems

• Robotics and automation projects

• LED lighting circuits

• CCTV accessories

• Electronic development boards

• Audio devices

• Small DC motors

• Wireless communication devices

• Electronic toys

• DIY electronics projects

• Laboratory and educational equipment

Advantages

• Provides a stable and regulated DC power output

• Eliminates the need for disposable batteries

• Compact, portable, and easy to use

• Helps protect connected devices from voltage fluctuations

• High efficiency with low power consumption

• Long service life and reliable performance

• Suitable for both hobby and professional electronics applications

Important Usage Notes

• Ensure that your device requires 6V DC before connecting the adapter.

• The device should not draw more than 1A (1000mA) of current.

• Always verify the DC plug size and output polarity (commonly center-positive) to ensure compatibility.

• Using an adapter with the wrong voltage or polarity may damage the connected device.

The 6 Volt 1 Amp Power Adapter is a dependable power solution for electronic circuits and low-voltage devices. Its regulated 6V DC output, compact design, and built-in protection features make it an ideal choice for powering development boards, embedded systems, LED projects, robotics, and a wide range of consumer and industrial electronic applications.
