6 DOF Robotic Arm

The 6 DOF (Six Degrees of Freedom) Robotic Arm is a programmable mechanical manipulator designed to perform precise movement and object-handling tasks by providing six independent axes of motion. It closely mimics the movement of a human arm, allowing it to reach, rotate, lift, and position objects in three-dimensional space with high accuracy. The robotic arm is widely used in robotics, industrial automation, research, education, artificial intelligence (AI), machine vision, IoT, CNC automation, and prototype development.

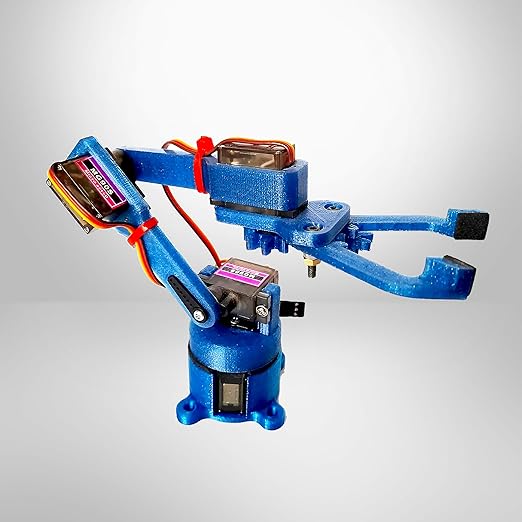

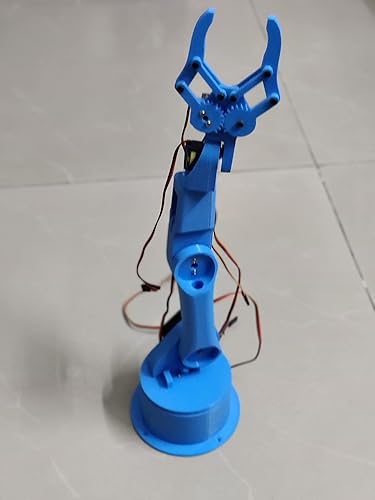

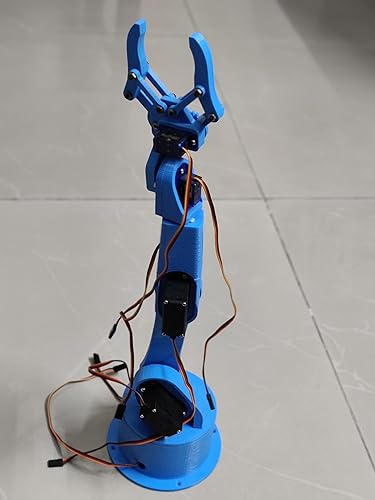

A typical 6 DOF Robotic Arm consists of a base, shoulder joint, upper arm, elbow joint, forearm, wrist joints, end effector (gripper or tool), servo motors or stepper motors, metal or plastic structural components, bearings, linkages, and mounting hardware. The arm is controlled by a microcontroller or robotic controller that coordinates the movement of all six joints.

The robotic arm provides six independent degrees of freedom, enabling complex motion and positioning:

1. Base Rotation – Rotates the entire arm left and right.

2. Shoulder Movement – Raises and lowers the main arm.

3. Elbow Movement – Extends and retracts the arm.

4. Wrist Pitch – Moves the wrist up and down.

5. Wrist Rotation (Yaw/Roll) – Rotates the wrist to change the orientation of the end effector.

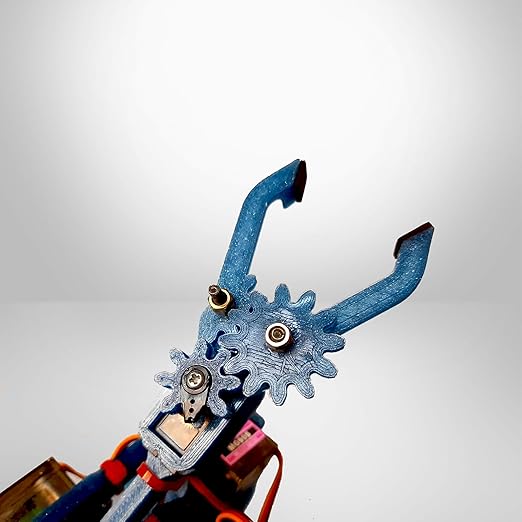

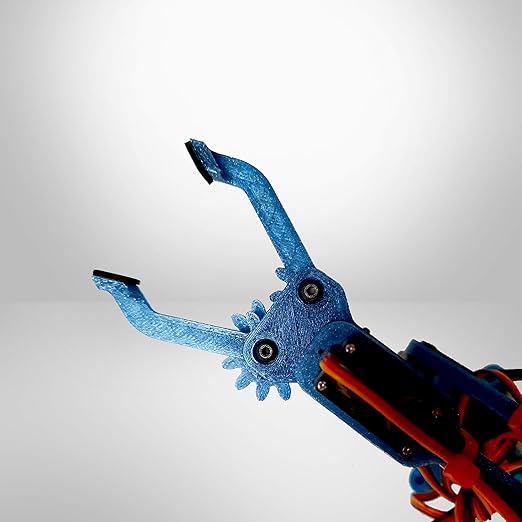

6. Gripper Operation – Opens and closes the gripper to pick up or release objects.

The working principle of the 6 DOF Robotic Arm is based on coordinated motion control. Each joint is driven by a servo motor or stepper motor that receives control signals from a microcontroller or robot controller. The controller calculates the required position for each joint using programmed instructions or kinematic algorithms. By synchronizing the movement of all six joints, the robotic arm can accurately move the end effector to a desired position and orientation. The gripper or tool then performs tasks such as grasping, lifting, assembling, sorting, or placing objects.

The robotic arm can be programmed using controllers such as Arduino Uno, Arduino Mega, ESP32, Raspberry Pi, STM32, PIC, AVR, or dedicated robotic controllers. Advanced systems may also integrate computer vision, artificial intelligence, machine learning, and wireless communication for autonomous operation.

The arm is compatible with various end effectors, including robotic grippers, suction cups, welding tools, pens, cameras, sensors, and inspection tools, making it adaptable for different industrial and educational applications.

The applications of the 6 DOF Robotic Arm include industrial automation, pick-and-place systems, assembly lines, object sorting, packaging, laboratory automation, machine tending, educational robotics, engineering training, AI and computer vision projects, research laboratories, CNC automation, 3D printing support, quality inspection, medical research, warehouse automation, IoT systems, prototype development, and DIY robotics projects.

The advantages of the 6 DOF Robotic Arm include high positioning accuracy, flexible multi-axis movement, programmable operation, repeatable performance, modular design, compatibility with various controllers, support for multiple end effectors, improved productivity, reduced manual labor, compact design, easy customization, and suitability for education, research, and industrial automation.

In conclusion, the 6 DOF Robotic Arm is a versatile and intelligent robotic system capable of performing precise manipulation tasks through six independently controlled axes of motion. Its flexibility, programmability, high accuracy, and compatibility with modern control systems make it an ideal solution for robotics education, industrial automation, artificial intelligence, research, embedded systems, and advanced engineering projects.
