6 DOF Robotic Arm Parts (PLA Plastic Parts only)(Multicolor)

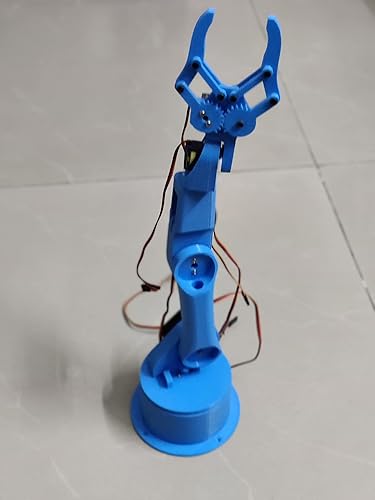

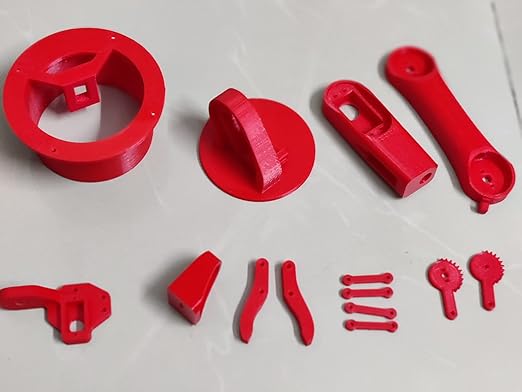

The 6 DOF Robotic Arm (PLA – All 3D Printed Parts) Without Motors is a mechanical robotic arm kit designed for educational, research, and prototype development purposes. The kit includes all the 3D printed PLA (Polylactic Acid) structural parts required to assemble a robotic arm with six degrees of freedom (6 DOF) but does not include servo motors or actuators. It is suitable for students, robotics enthusiasts, engineers, and makers who wish to customize the arm by installing compatible servo motors and electronic control systems. The kit is available in multiple colours, making it suitable for both functional and demonstration projects.

The robotic arm is manufactured using PLA (Polylactic Acid), a lightweight, biodegradable, and durable thermoplastic commonly used in 3D printing. The precision-printed parts are designed to provide accurate alignment, smooth movement, and sufficient strength for light-duty robotic applications. The modular design allows easy assembly, maintenance, and future upgrades.

The robotic arm provides 6 Degrees of Freedom (6 DOF), meaning it has six independently movable joints that enable complex positioning and orientation of the end effector. The six movements generally include:

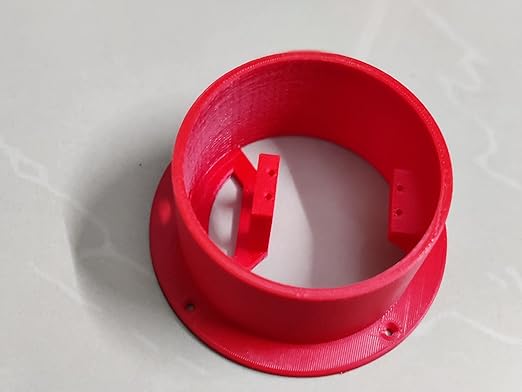

• Base Rotation – Rotates the entire arm horizontally.

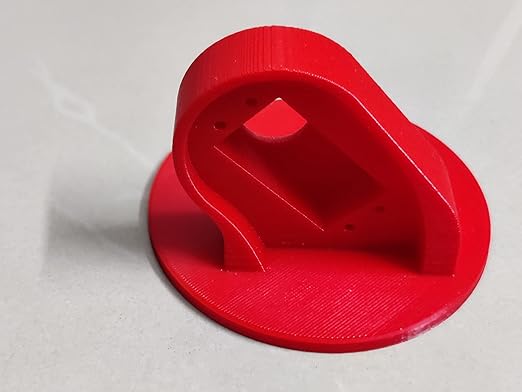

• Shoulder Joint – Raises and lowers the main arm.

• Elbow Joint – Extends and retracts the arm.

• Wrist Pitch – Moves the wrist up and down.

• Wrist Rotation – Rotates the wrist for better positioning.

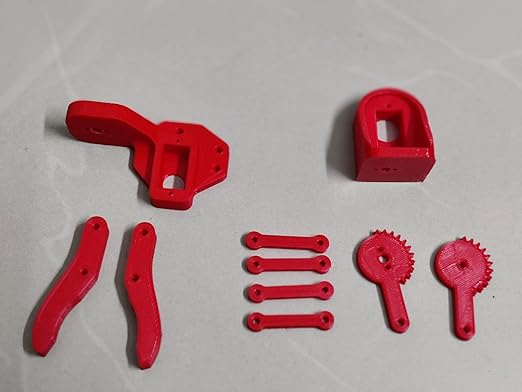

• Gripper/Open-Close Mechanism – Grasps and releases objects.

Since the kit is supplied without motors, users can install compatible servo motors (such as MG996R, MG995, DS3218, or other suitable servos depending on the design) to actuate each joint. After installation, the robotic arm can be controlled using microcontrollers such as Arduino Uno, Arduino Mega, ESP32, Raspberry Pi, STM32, PIC, or AVR, along with appropriate servo driver boards and software.

The working principle of the 6 DOF Robotic Arm is based on coordinated joint movement. Each servo motor independently rotates its assigned joint according to control signals received from the microcontroller. By synchronizing all six joints, the robotic arm can accurately position its gripper in three-dimensional space to perform tasks such as picking, placing, lifting, sorting, and object manipulation. The modular structure also allows users to program forward and inverse kinematics for advanced robotic motion control.

The lightweight PLA construction reduces the load on the servo motors while maintaining sufficient rigidity for educational and light industrial applications. Because the parts are 3D printed, damaged components can often be replaced individually without replacing the entire assembly.

The applications of the 6 DOF Robotic Arm include robotics education, STEM learning, engineering laboratories, automation research, object handling demonstrations, pick-and-place systems, machine learning experiments, artificial intelligence projects, computer vision systems, IoT applications, industrial prototype development, university research, hobby robotics, maker projects, and educational science exhibitions.

The advantages of the robotic arm include six-axis movement, lightweight PLA construction, modular and upgradeable design, easy assembly, customizable motor selection, multiple colour options, compatibility with various microcontrollers, support for advanced robotics programming, cost-effective prototyping, reusable components, and suitability for educational and research applications.

In conclusion, the 6 DOF Robotic Arm (PLA – All 3D Printed Parts) Without Motors (Multiple Colours) is a versatile mechanical robotic arm kit designed for learning, experimentation, and prototype development. Its six degrees of freedom, lightweight PLA construction, modular design, and compatibility with a wide range of servo motors and controllers make it an excellent platform for robotics, automation, artificial intelligence, engineering education, and embedded systems development.
