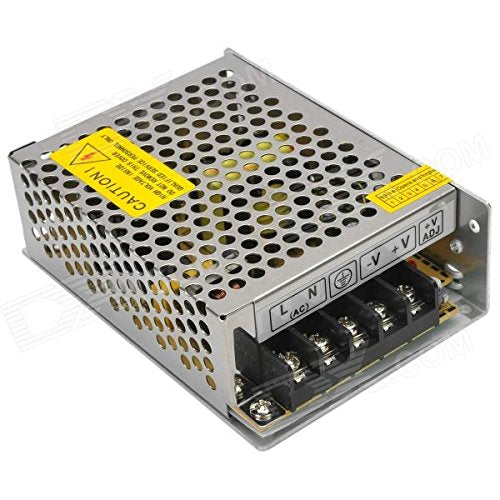

5V 5A SMPS – 25W AC-DC Metal Power Supply

The 5V 5A SMPS – 25W AC-DC Metal Power Supply is a high-efficiency switched mode power supply designed to convert high-voltage AC mains electricity into a stable and regulated 5V DC output. With a maximum output current of 5 Amperes and a total output power of 25 Watts, this power supply is ideal for powering a wide range of electronic devices, embedded systems, industrial equipment, and automation applications that require a reliable 5V DC source.

Built using advanced Switched Mode Power Supply (SMPS) technology, this unit delivers excellent energy efficiency while minimizing power loss and heat generation. Unlike conventional linear power supplies, the high-frequency switching design enables compact construction, lightweight performance, and stable voltage regulation even under varying load conditions.

The power supply is housed in a durable metal enclosure that provides excellent mechanical protection, enhanced heat dissipation, and long-term reliability. Ventilation slots allow efficient airflow to help maintain safe operating temperatures during continuous operation, making it suitable for both commercial and industrial environments.

Designed for worldwide compatibility, the power supply accepts a universal AC input voltage of 100–240V AC, 50/60Hz, allowing it to operate reliably in different regions without requiring additional voltage converters. It converts the incoming AC power into a clean and regulated 5V DC output, ensuring dependable performance for sensitive electronic circuits.

For enhanced safety, the 5V 5A SMPS incorporates multiple built-in protection mechanisms, including over-voltage protection, over-current protection, overload protection, and short-circuit protection. These features help protect both the power supply and connected devices from electrical faults, improving system reliability and operational safety.

The convenient screw terminal design enables secure and simple wiring for AC input and DC output connections, making installation quick and straightforward for engineers, technicians, electricians, and electronics hobbyists.

The 5V 5A SMPS – 25W AC-DC Metal Power Supply is widely used in Arduino projects, ESP32 development boards, Raspberry Pi systems, LED strip lighting, LED display boards, CCTV cameras, biometric devices, access control systems, industrial automation, PLC controllers, communication equipment, IoT devices, robotics, embedded systems, home automation, security systems, electronic testing equipment, laboratory projects, battery charging systems, control panels, and DIY electronics projects.

Whether you are powering microcontrollers, LED lighting, industrial control systems, or communication devices, this 5V 5A Metal SMPS delivers stable voltage, high efficiency, and dependable long-term performance.

Working Principle

The 5V 5A SMPS converts 100–240V AC mains power into a regulated 5V DC output using high-frequency switching technology.

The incoming AC voltage is first rectified and filtered into DC. This DC voltage is then switched at a high frequency through a transformer, where it is stepped down to the required voltage level. The output is then rectified, filtered, and regulated to produce a smooth and stable 5V DC supply.

An internal feedback circuit continuously monitors the output voltage and automatically adjusts the switching operation to maintain constant output voltage despite variations in load or input voltage. Built-in protection circuits monitor abnormal operating conditions and automatically protect the power supply and connected equipment.

Key Features

• Regulated 5V DC output

• Maximum output current: 5A

• Maximum output power: 25W

• High-efficiency SMPS design

• Universal AC input: 100–240V AC

• Supports 50/60Hz mains frequency

• Durable metal enclosure

• Excellent heat dissipation

• Stable voltage output

• Low ripple and electrical noise

• Over-voltage protection

• Over-current protection

• Overload protection

• Short-circuit protection

• Screw terminal input and output connections

• Compact and lightweight design

• Reliable continuous operation

• Long service life

Applications

The 5V 5A SMPS – 25W AC-DC Metal Power Supply is widely used in:

• Arduino projects

• ESP32 development

• ESP8266 projects

• Raspberry Pi systems

• LED strip lighting

• LED display boards

• CCTV camera systems

• Access control systems

• Biometric devices

• PLC controllers

• Industrial automation

• Robotics

• IoT devices

• Embedded systems

• Communication equipment

• Home automation

• Security systems

• Electronic testing equipment

• Laboratory projects

• DIY electronics

Specifications

• Product Type: Switched Mode Power Supply (SMPS)

• Input Voltage: 100–240V AC

• Input Frequency: 50/60Hz

• Output Voltage: 5V DC

• Maximum Output Current: 5A

• Maximum Output Power: 25W

• Power Supply Type: Switching Mode Power Supply

• Enclosure: Metal

• Cooling: Natural air cooling through ventilation slots

• Output Connection: Screw terminals

• Protection Features: Over-voltage, over-current, overload, and short-circuit protection

• Application: Electronic equipment and industrial power supply

Package Includes

• 1 × 5V 5A SMPS – 25W AC-DC Metal Power Supply

Safety Precautions

• Connect only to the specified 100–240V AC input.

• Ensure correct wiring of AC input and DC output terminals.

• Do not exceed the maximum output current of 5A.

• Install the power supply in a dry, well-ventilated location.

• Avoid touching exposed terminals while the unit is connected to the AC mains.

• Disconnect power before installation or maintenance.

• Do not operate the unit if the enclosure is damaged.

• Ensure proper grounding where required for safe operation.
