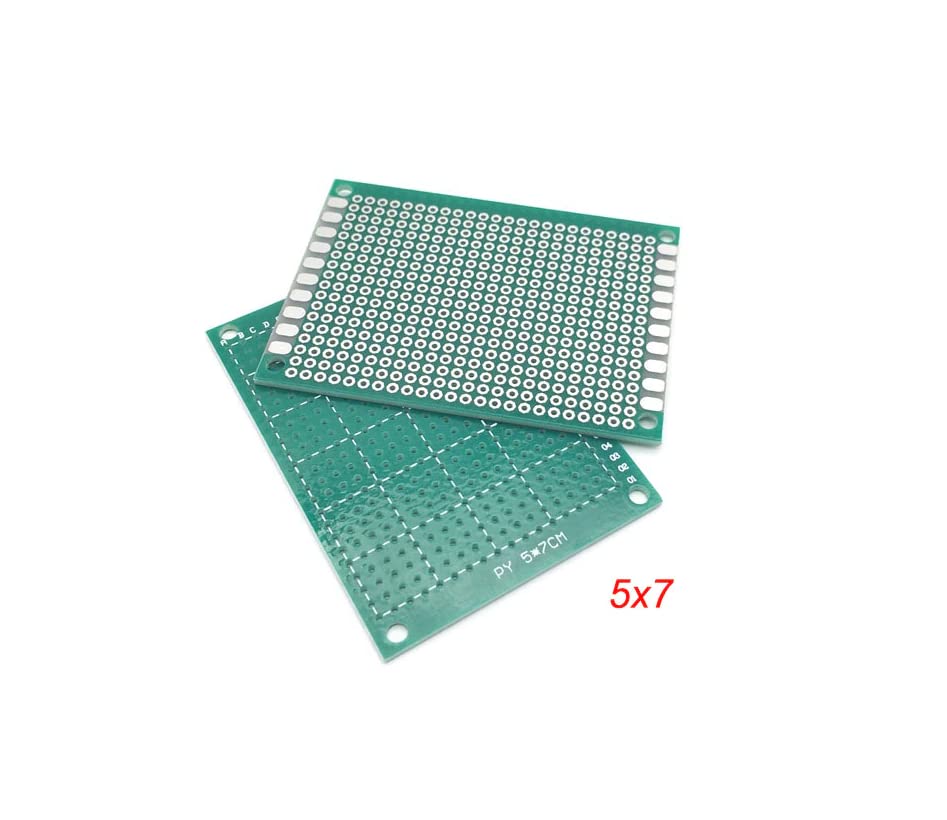

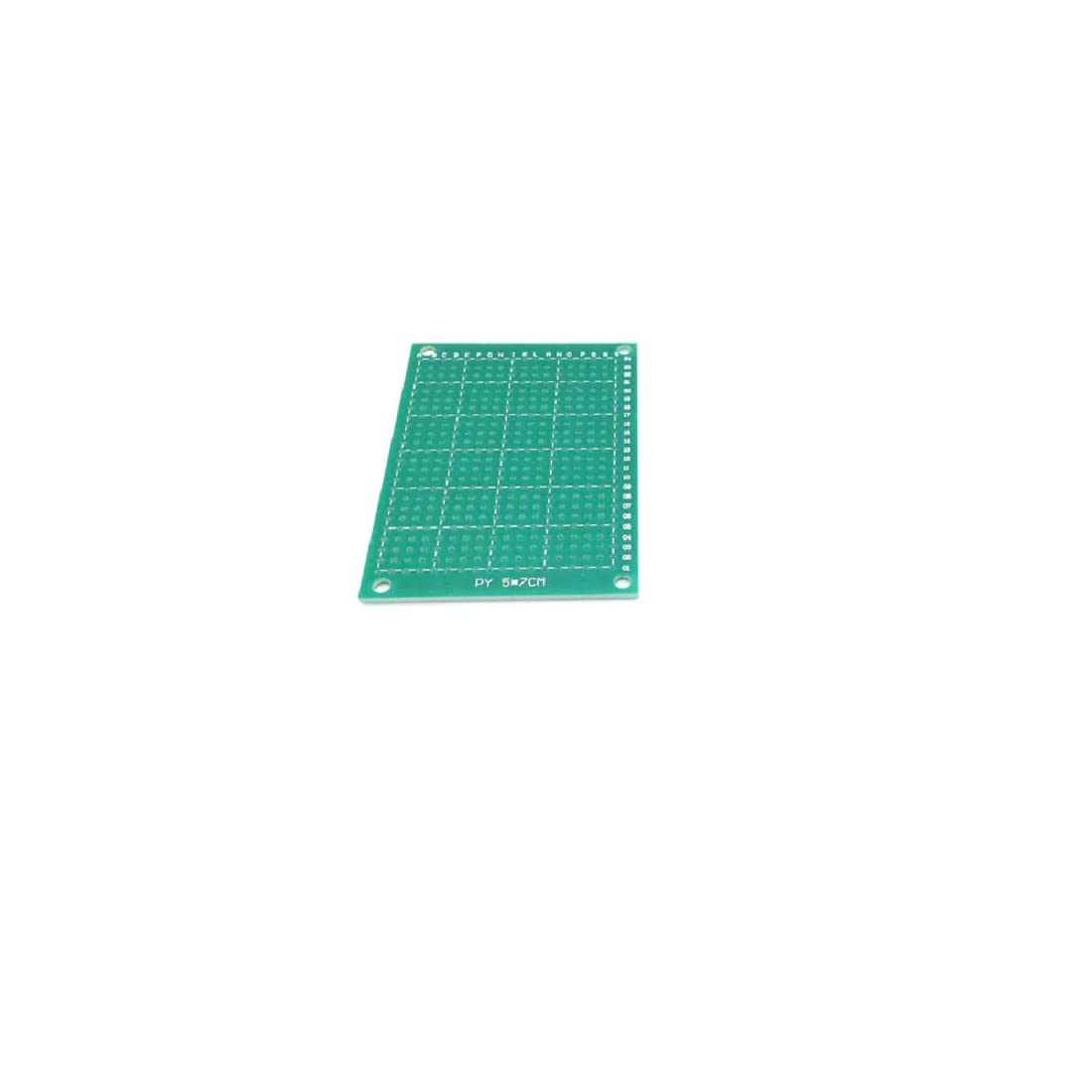

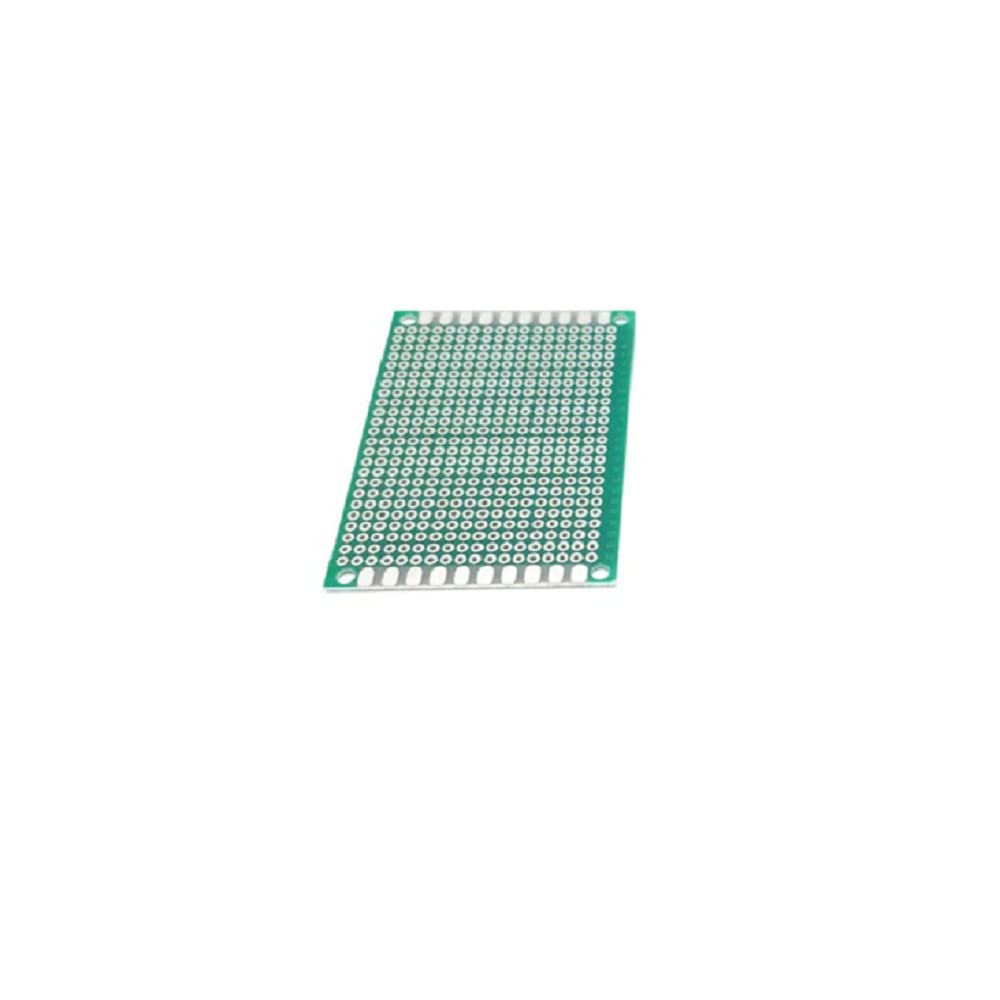

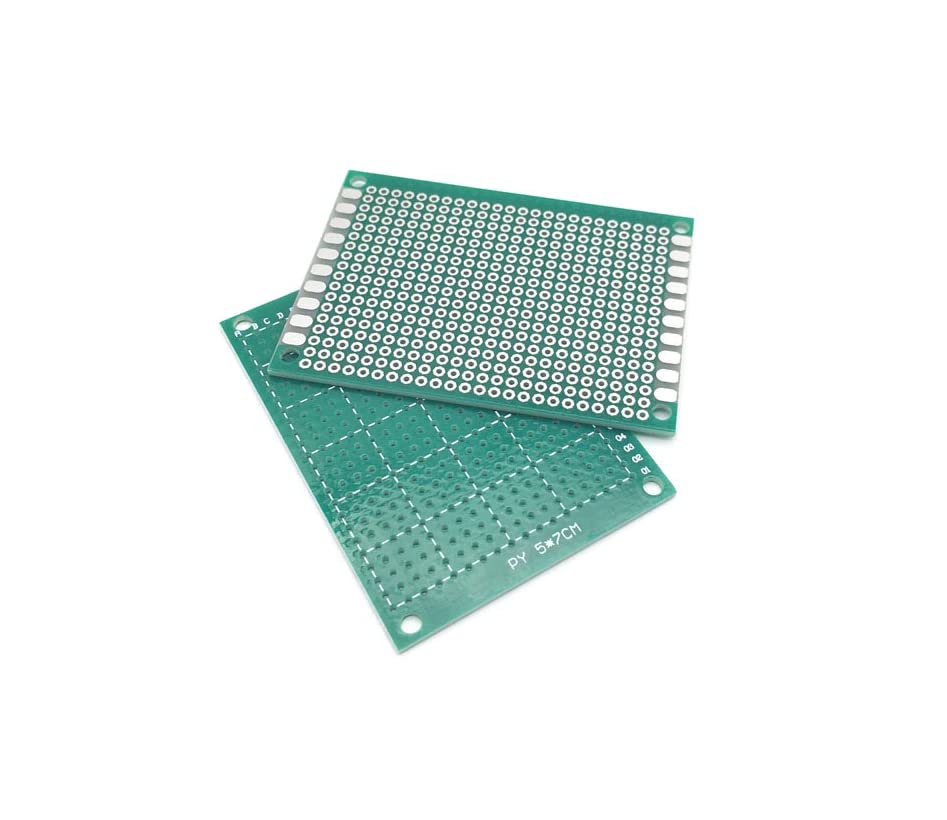

5 × 7 cm Universal General Purpose PCB Board

A 5 × 7 cm Universal General Purpose PCB Board is a widely used prototyping board designed to simplify the development, testing, and implementation of electronic circuits. It provides a practical platform for assembling electronic components without the expense or delay of manufacturing a custom printed circuit board. The board consists of a matrix of evenly spaced pre-drilled holes surrounded by copper pads, allowing components to be securely mounted and soldered. This standard hole spacing makes it compatible with a wide variety of through-hole electronic components, including resistors, capacitors, diodes, transistors, integrated circuits (ICs), switches, connectors, sensors, relays, and LEDs.

With dimensions of 5 cm × 7 cm, the board offers an ideal balance between compactness and sufficient working area, making it suitable for both simple and moderately complex electronic circuits. The universal layout provides complete flexibility in component arrangement, enabling designers to create customized circuit configurations according to project requirements. Electrical connections between components are established using solder bridges or insulated jumper wires, allowing circuits to be modified, expanded, or repaired with ease during the development process.

The board is typically manufactured using durable fiberglass (FR-4) or high-quality phenolic material, which provides excellent mechanical strength, electrical insulation, and resistance to heat generated during soldering. The copper pads ensure strong solder joints and reliable electrical conductivity, contributing to stable circuit performance. Many universal PCB boards also include clearly marked row and column guides that help users position components accurately and simplify circuit assembly and troubleshooting.

The 5 × 7 cm Universal General Purpose PCB Board is extensively used in educational laboratories, engineering institutions, research projects, industrial prototype development, embedded systems, robotics, automation, Internet of Things (IoT) applications, and hobby electronics. It serves as an effective bridge between breadboard experimentation and the fabrication of a dedicated printed circuit board, allowing engineers and students to validate circuit functionality before final production. Its reusable design approach, low cost, ease of soldering, and adaptability make it one of the most popular prototyping solutions for electronic circuit development.

The board supports a wide range of low-voltage electronic applications and can accommodate power supply circuits, microcontroller systems, sensor interfaces, communication modules, display circuits, and signal processing components. Because of its standardized construction and universal compatibility, it enables rapid prototyping, reduces development time, minimizes design errors, and facilitates easy maintenance and future modifications. These advantages make the 5 × 7 cm Universal General Purpose PCB Board an essential tool for learning electronics, developing innovative products, and building reliable electronic systems efficiently.
