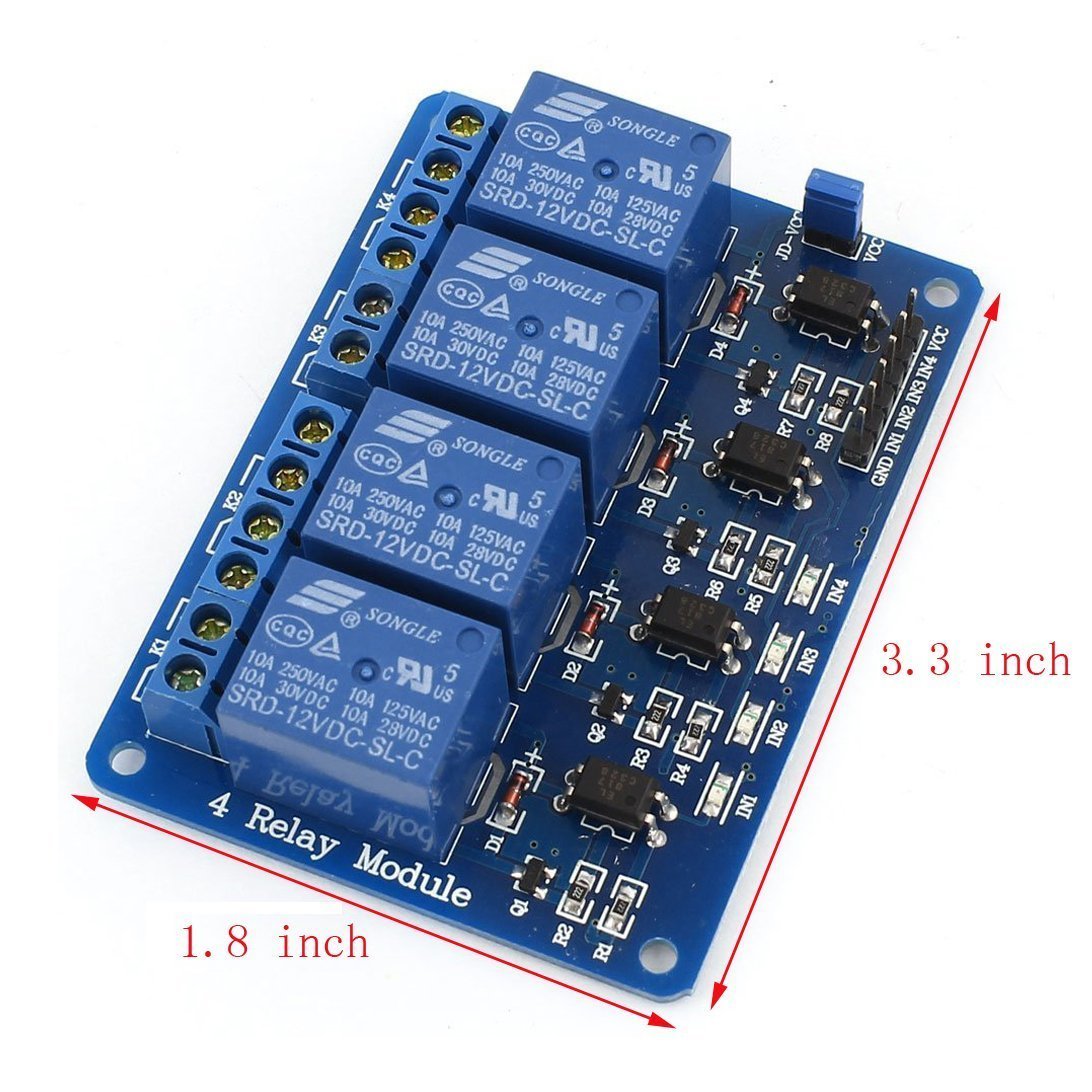

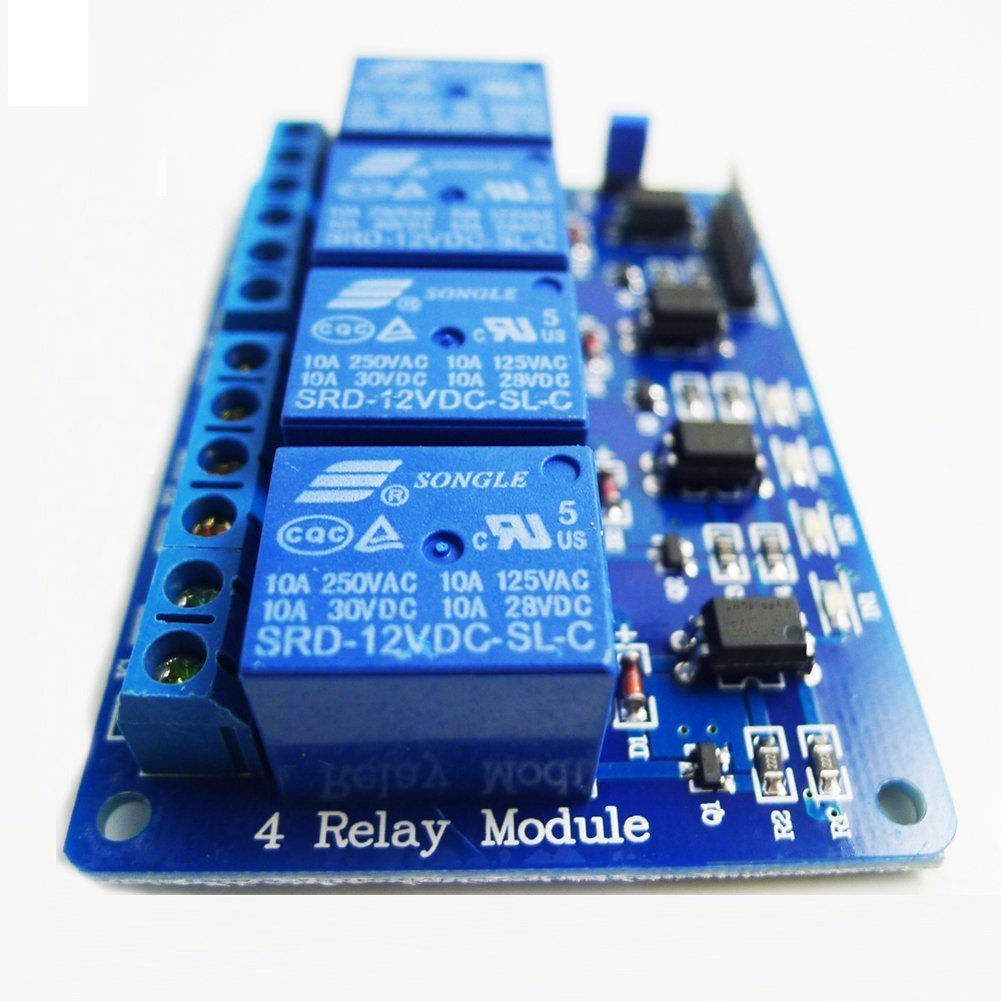

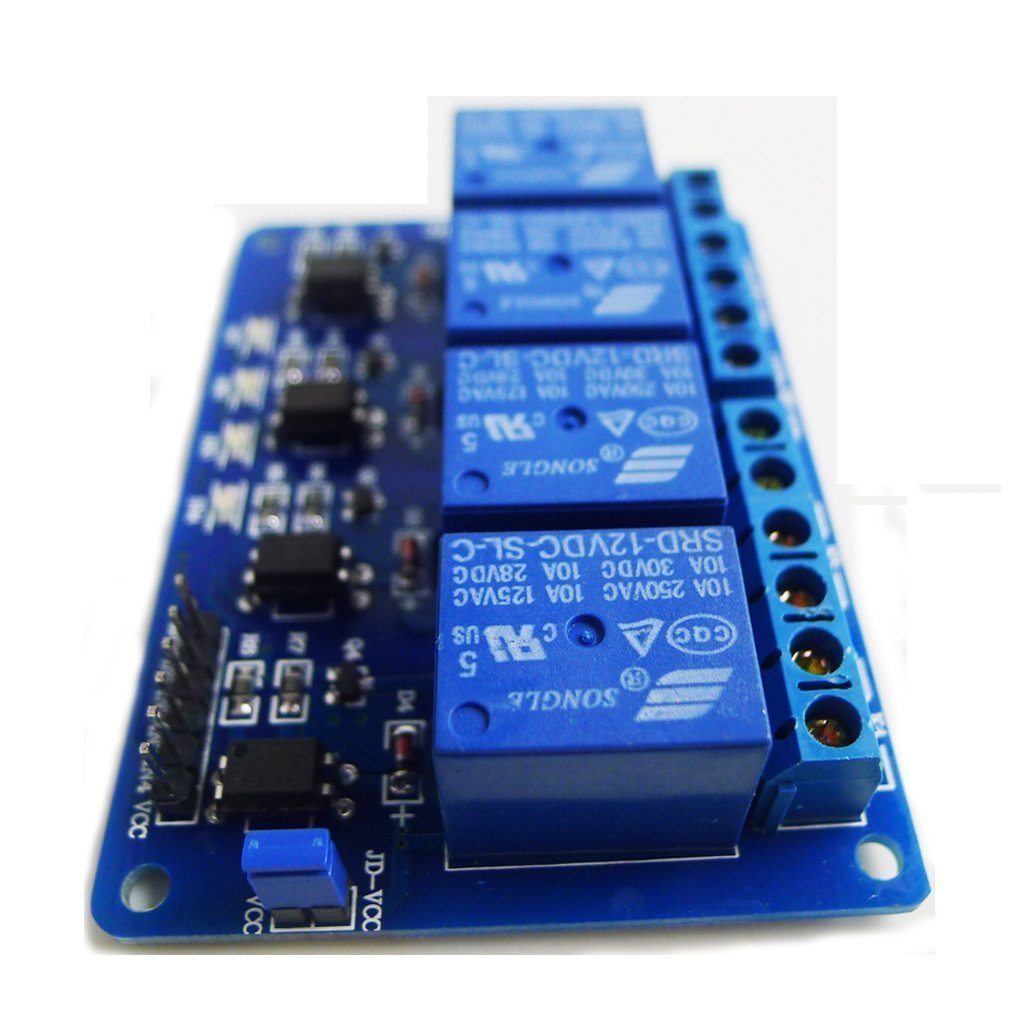

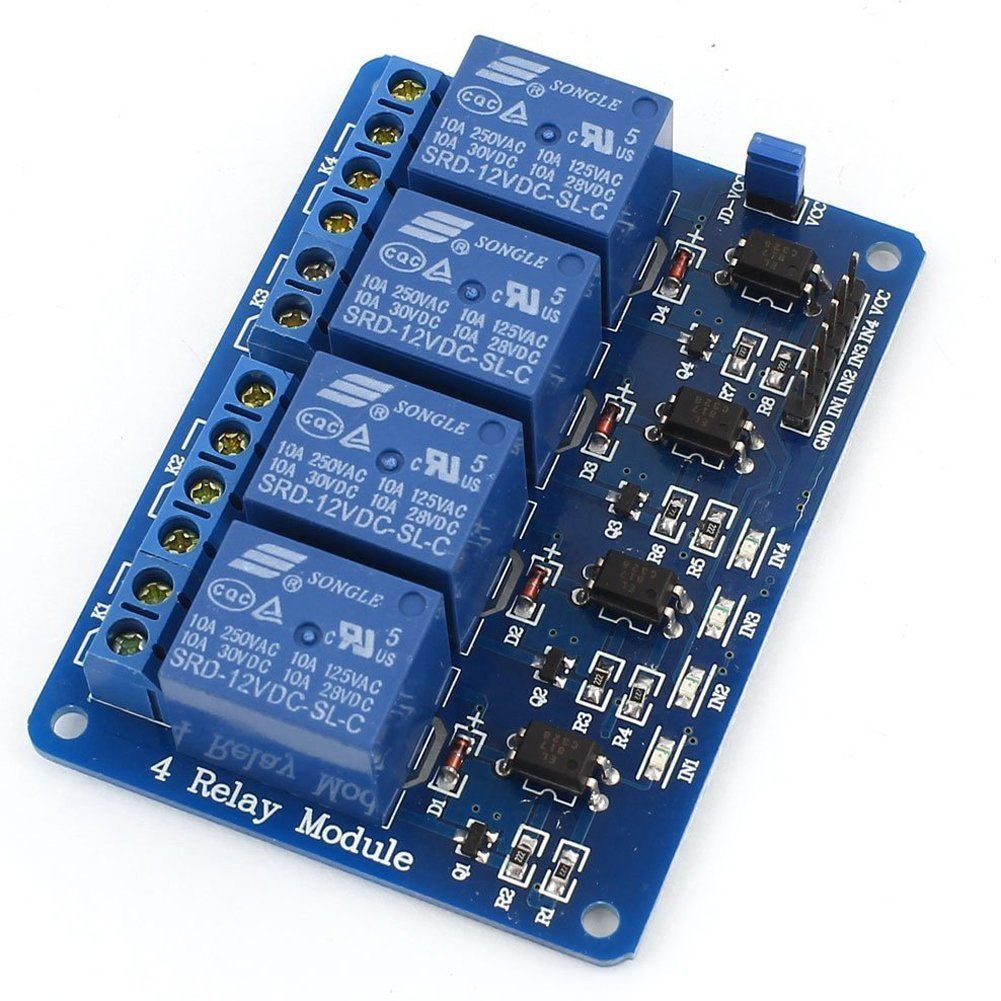

4 Channel 5V Relay Module with Optocoupler

The 4 Channel 5V Relay Module with Optocoupler is an electronic switching module designed to allow low-voltage microcontrollers and development boards to safely control high-voltage AC or DC electrical devices. Equipped with four independent electromechanical relays, this module operates on a 5V DC supply and can switch multiple electrical loads simultaneously. It is widely used with Arduino, Raspberry Pi, ESP32, ESP8266, PIC, AVR, STM32, and other microcontroller platforms for home automation, industrial control, robotics, IoT systems, and DIY electronics projects.

Each relay channel is controlled independently through a digital input pin, allowing the module to switch devices such as lights, fans, motors, pumps, solenoid valves, power outlets, and other electrical appliances. The integrated optocouplers (optical isolators) provide electrical isolation between the control circuit and the relay switching circuit, helping protect sensitive microcontrollers from voltage spikes, electrical noise, and interference generated by inductive loads.

The module features Normally Open (NO), Normally Closed (NC), and Common (COM) terminals for each relay, offering flexibility for different switching applications. LED indicators on each channel display the relay status, making it easy to monitor operation during testing and deployment.

Specifications

• Product Type: 4 Channel Relay Module

• Operating Voltage: 5V DC

• Relay Channels: 4 Independent Relays

• Relay Type: Electromechanical Relay

• Trigger Signal: 5V Digital Input

• Isolation: Optocoupler Isolation

• Control Interface: TTL Compatible

• Output Terminals: NO (Normally Open), NC (Normally Closed), COM (Common)

• Status Indicator: LED Indicator for Each Relay

• Mounting: PCB with Mounting Holes

Working Principle

When a microcontroller sends a control signal to one of the input pins, the corresponding optocoupler activates while electrically isolating the control side from the relay side. The optocoupler then drives a transistor, which energizes the relay coil. Once energized, the relay changes the position of its internal contacts, connecting either the Normally Open (NO) or Normally Closed (NC) terminal to the Common (COM) terminal. This allows the module to safely switch external AC or DC electrical loads without exposing the microcontroller to high voltages.

Features

• Four independently controlled relay channels

• Operates from a 5V DC power supply

• Built-in optocoupler isolation for enhanced safety

• Compatible with most microcontrollers and development boards

• LED indicators for relay status

• Supports AC and DC load switching

• Easy screw terminal connections

• PCB mounting holes for secure installation

• Reliable and durable electromechanical relays

• Suitable for automation and remote control applications

Applications

The 4 Channel 5V Relay Module with Optocoupler is widely used in:

• Arduino and Raspberry Pi projects

• Home automation systems

• Smart home devices

• Industrial automation

• IoT (Internet of Things) projects

• Robotics and embedded systems

• Lighting control systems

• Motor and pump control

• Solenoid valve control

• Security and alarm systems

• HVAC control systems

• Remote switching applications

• Electrical appliance control

• Educational and engineering projects

Advantages

• Safely isolates low-voltage control circuits from high-voltage loads

• Enables independent control of four electrical devices

• Simple digital interface for microcontrollers

• Reduces electrical noise and interference

• Easy installation and wiring

• Reliable switching performance

• Compact and space-saving design

• Suitable for both hobby and industrial applications

Safety Precautions

• Ensure the module is powered with the correct 5V DC supply.

• Never exceed the relay's maximum voltage and current ratings.

• Disconnect the power supply before making wiring changes.

• Use proper insulation when working with AC mains voltage.

• Keep high-voltage wiring separated from low-voltage control wiring.

• Install the module in a dry and well-ventilated environment.

• Follow all electrical safety standards when switching high-voltage equipment.

The 4 Channel 5V Relay Module with Optocoupler is a reliable and versatile switching solution for controlling multiple AC and DC devices from low-voltage microcontrollers. Its built-in optocoupler isolation, four independent relay channels, and easy integration with popular development platforms make it an ideal choice for automation systems, smart home projects, robotics, industrial control, and a wide range of electronic applications.
