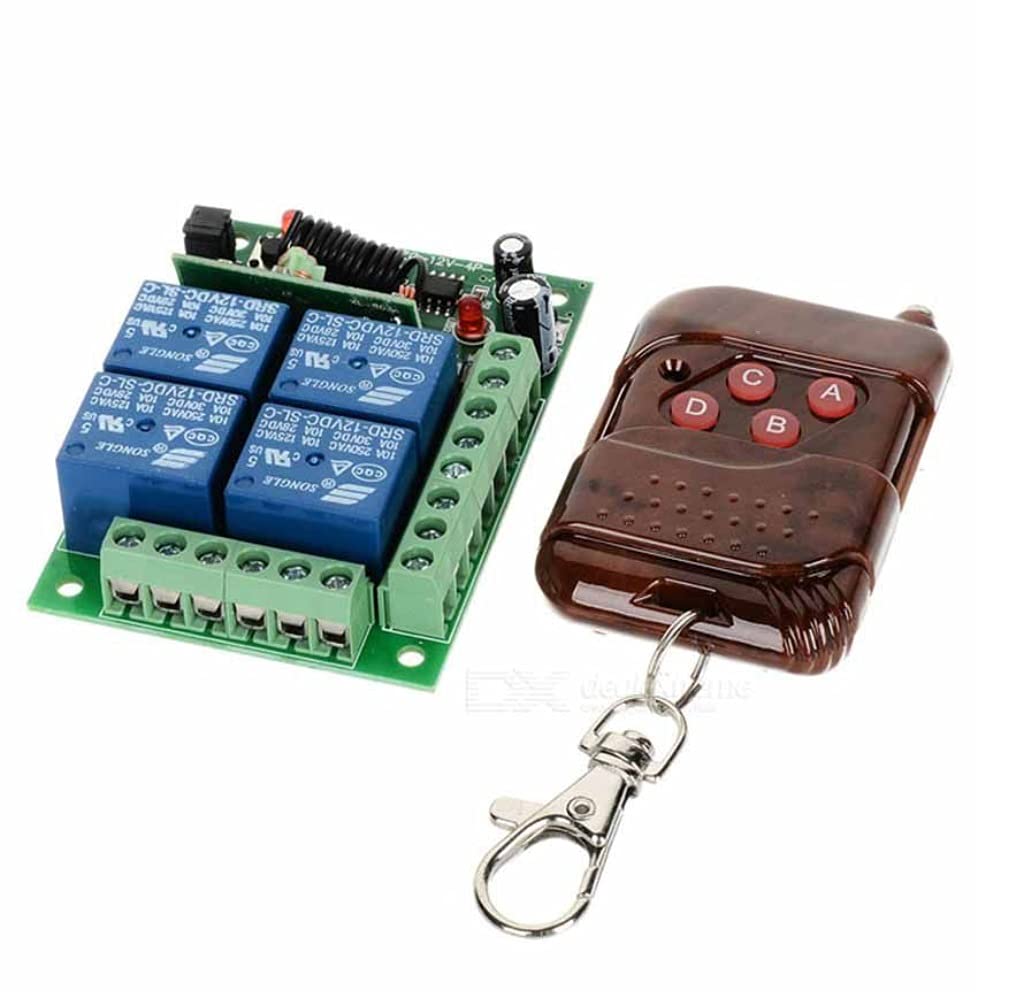

4-Channel 12V IR Relay Module

The 4-Channel 12V IR Relay Module is a versatile electronic switching module designed to control multiple electrical devices using infrared (IR) remote signals or low-level control inputs. It enables users to switch ON or OFF up to four independent electrical loads, making it highly useful in automation systems, robotics, smart home applications, and embedded electronics projects.

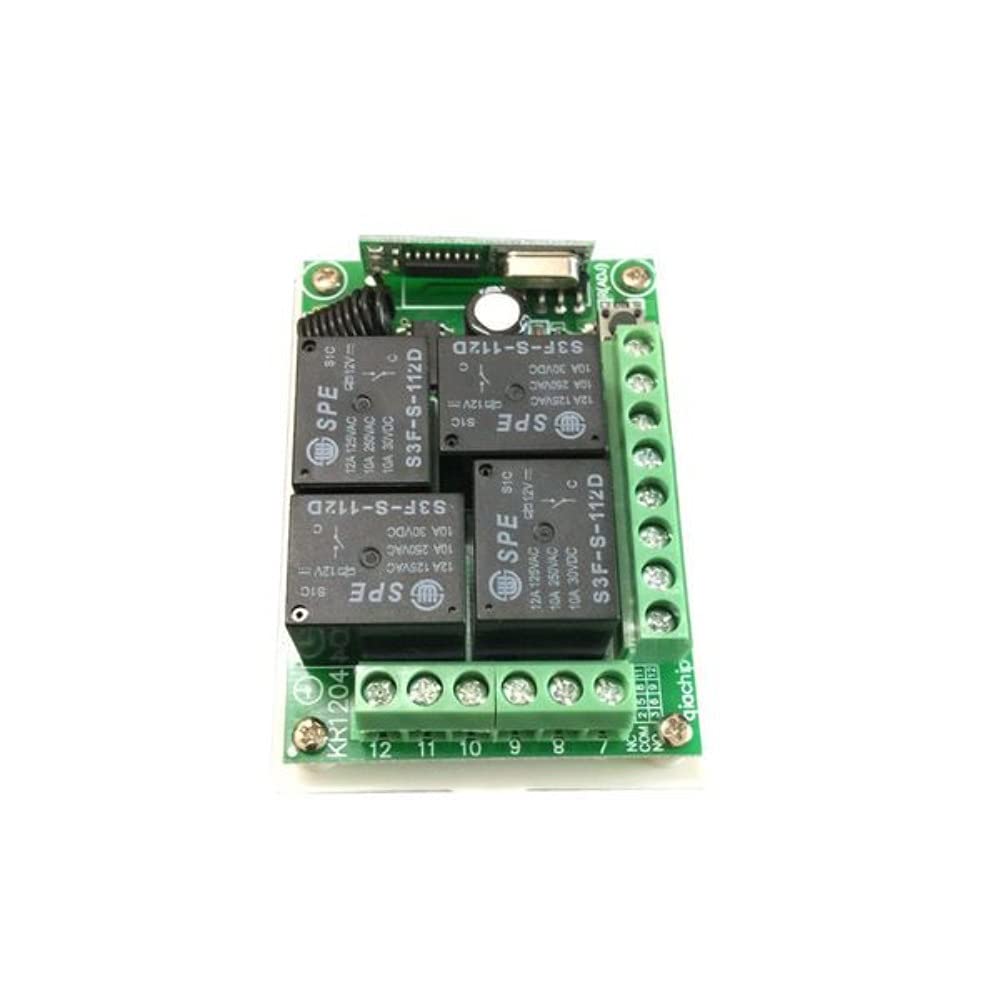

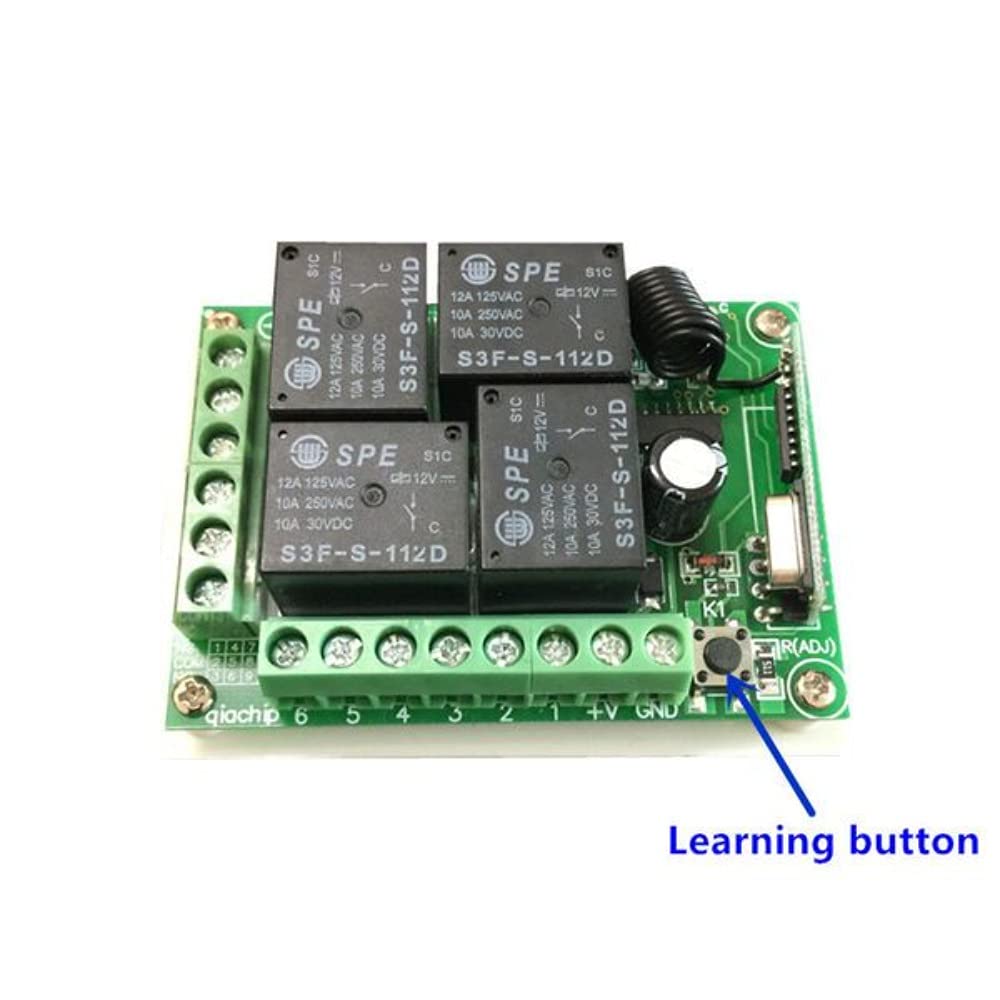

This module operates using a 12V DC power supply and integrates four separate relay channels, each capable of controlling an individual device. These relays function as electrically operated switches, allowing safe control of high-voltage or high-current appliances using low-voltage control signals. This makes the module ideal for interfacing microcontrollers with real-world electrical systems.

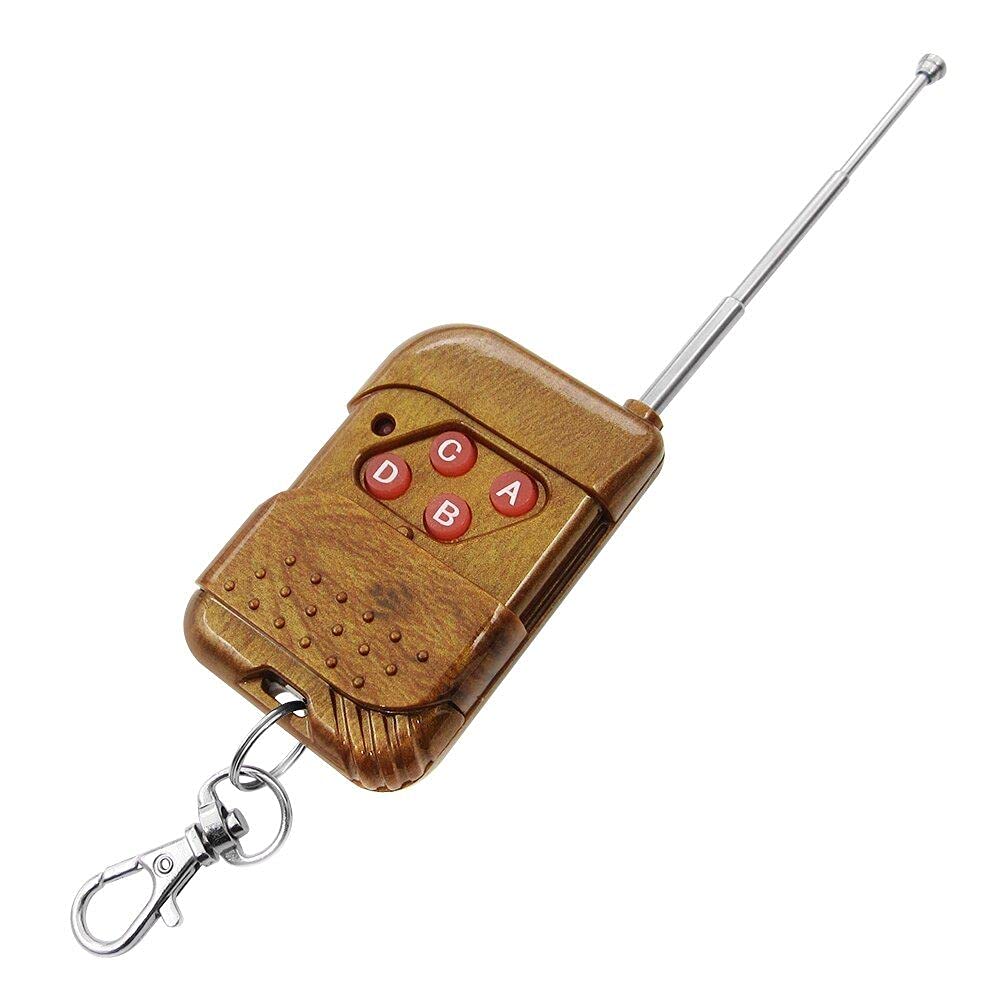

A key feature of this module is its infrared remote control capability. It can be triggered using standard IR remote signals, enabling wireless control of connected devices. This feature is especially useful in remote automation systems where physical access to switches is not convenient.

Each relay channel operates independently, allowing users to control multiple devices such as lights, fans, motors, pumps, or other electrical appliances separately. This independent control enhances flexibility in designing automation and control systems.

The module typically includes LED indicators for each relay channel. These LEDs provide visual feedback of the relay status, making it easy to monitor which devices are currently active or switched OFF during operation.

The 4-channel IR relay module supports both AC and DC load control, making it suitable for a wide range of electrical applications. It can be used in household appliances, industrial control systems, robotics, and experimental electronic setups.

The module is designed for easy interfacing with popular microcontroller platforms such as Arduino Uno R3, Arduino Nano Board V3, ESP32 development boards, and Raspberry Pi 4 Model B. This allows users to integrate it into programmable automation systems with ease.

Internally, the module uses driver circuits and relay isolation mechanisms to protect sensitive control electronics from high-voltage switching. This ensures safe operation when working with mains-powered devices.

Because it supports IR-based triggering, the module can be used in remote-controlled automation systems, smart switching panels, and wireless control setups without requiring direct wired communication from a microcontroller.

Typical applications of the 4-Channel 12V IR Relay Module include:

• Home automation systems

• Smart lighting control

• Motor and pump control

• Robotics and embedded systems

• Industrial switching applications

• DIY electronics projects

• Remote-controlled appliances

• Smart energy management systems

• Educational electronics experiments

The module is widely used in STEM learning environments to demonstrate concepts such as electromechanical switching, relay operation, wireless control systems, and embedded automation design.

Its compact design allows easy integration into control panels, robotic systems, and smart home installations. The combination of IR control and multi-channel relay switching makes it a flexible solution for both beginners and advanced developers.

Overall, the 4-Channel 12V IR Relay Module is a reliable, efficient, and easy-to-use control interface for switching multiple electrical devices using infrared signals or microcontroller-based systems. Its multi-channel capability, IR control feature, and compatibility with popular development platforms make it an excellent choice for automation, robotics, and electronic control applications.
