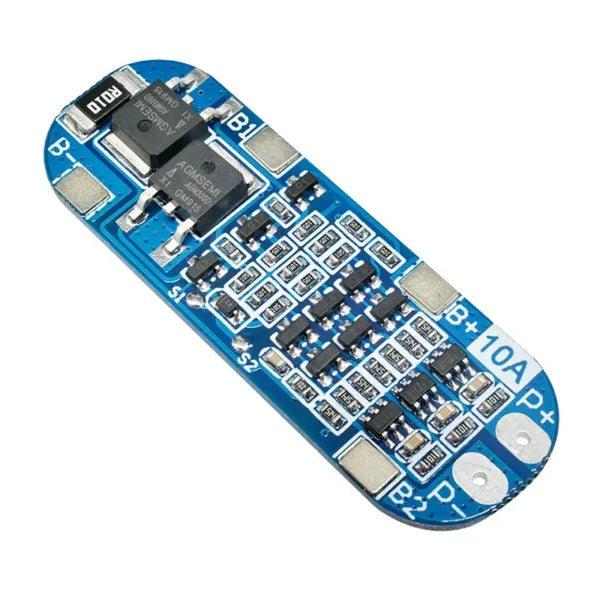

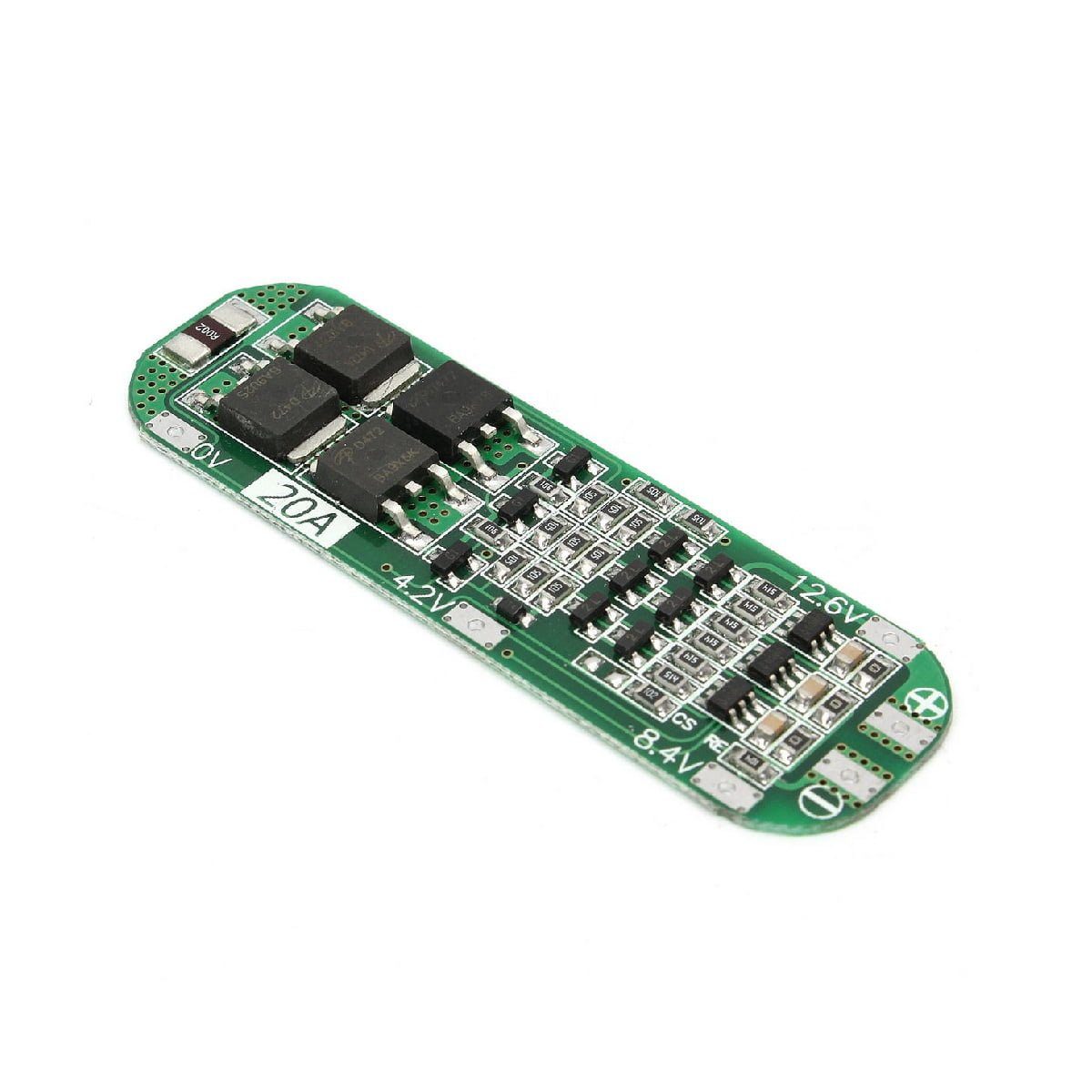

3S 12V 18650 10A Lithium Battery Protection Board (BMS)

The 3S 12V 18650 10A Lithium Battery Protection Board (BMS) is a Battery Management System (BMS) designed to protect and manage three 18650 lithium-ion rechargeable batteries connected in series (3S configuration). It safeguards the battery pack against overcharging, over-discharging, over-current, short circuits, and cell voltage imbalance, ensuring safe operation and extending battery life. It is widely used in battery packs, portable power systems, electric bicycles, robotics, solar energy storage, UPS systems, LED lighting, IoT devices, and DIY electronics projects.

The protection board consists of a Battery Management IC (BMS controller), MOSFET switching transistors, voltage sensing circuits, current sensing components, balancing circuitry (on balance versions), PCB, and battery connection terminals. These components work together to continuously monitor the voltage and current of each battery cell, protecting the battery pack from unsafe operating conditions.

The working principle of the 3S 12V 18650 10A BMS is based on continuous monitoring of each battery cell in the pack. The board measures the voltage of all three lithium-ion cells and controls the charging and discharging process. During charging, if any cell reaches the maximum safe voltage (typically 4.2V), the BMS disconnects the charger or balances the cells (if balance charging is supported). During discharge, if any cell voltage drops below the safe cut-off level (typically 2.7–3.0V), the BMS disconnects the load to prevent deep discharge. The board also disconnects the battery pack if excessive current or a short circuit is detected, protecting both the batteries and the connected equipment.

Typical specifications include:

• Product Type: Lithium Battery Protection Board (BMS)

• Battery Configuration: 3S (3 Cells in Series)

• Battery Type: 18650 Lithium-Ion Rechargeable Batteries

• Nominal Battery Voltage: 11.1V DC

• Fully Charged Voltage: 12.6V DC

• Maximum Continuous Discharge Current: 10A

• Charging Voltage: 12.6V DC

• Protection Functions: Overcharge, Over-discharge, Over-current, Short Circuit

• Cell Balancing: Available on balance versions (model dependent)

• PCB Material: FR-4 Glass Epoxy

The board provides the following protection features:

• Overcharge Protection

• Over-discharge Protection

• Over-current Protection

• Short Circuit Protection

• Cell Voltage Monitoring

• Battery Pack Safety Management

• Cell Balancing (for balancing models)

The typical terminal connections include:

• B+ – Battery Positive

• B- – Battery Negative

• B1 – Connection between Cell 1 and Cell 2

• B2 – Connection between Cell 2 and Cell 3

• P+ – Charging/Load Positive Output

• P- – Charging/Load Negative Output

The 3S 12V 18650 10A BMS is compatible with:

• 18650 Lithium-Ion Batteries

• 3S Battery Packs

• 12.6V Lithium Battery Chargers

• Solar Energy Systems

• Portable Power Packs

• Electric Bicycles

• Electric Scooters

• Robotics Projects

• Arduino Projects

• ESP32 Development Boards

• ESP8266 Modules

• Embedded Systems

• IoT Devices

• LED Lighting Systems

The applications of the 3S 12V 18650 10A Lithium Battery Protection Board include lithium battery pack protection, portable power stations, robotics, electric vehicles, solar battery storage, emergency lighting, UPS systems, wireless sensor networks, battery-powered embedded systems, educational electronics, engineering projects, laboratory experiments, automation systems, prototype development, and DIY electronics.

The advantages of the BMS include reliable battery protection, improved battery safety, extended battery life, automatic overcharge prevention, deep discharge protection, over-current protection, short-circuit protection, compact design, low power consumption, easy installation, support for 3-cell lithium battery packs, and stable battery management.
